X550

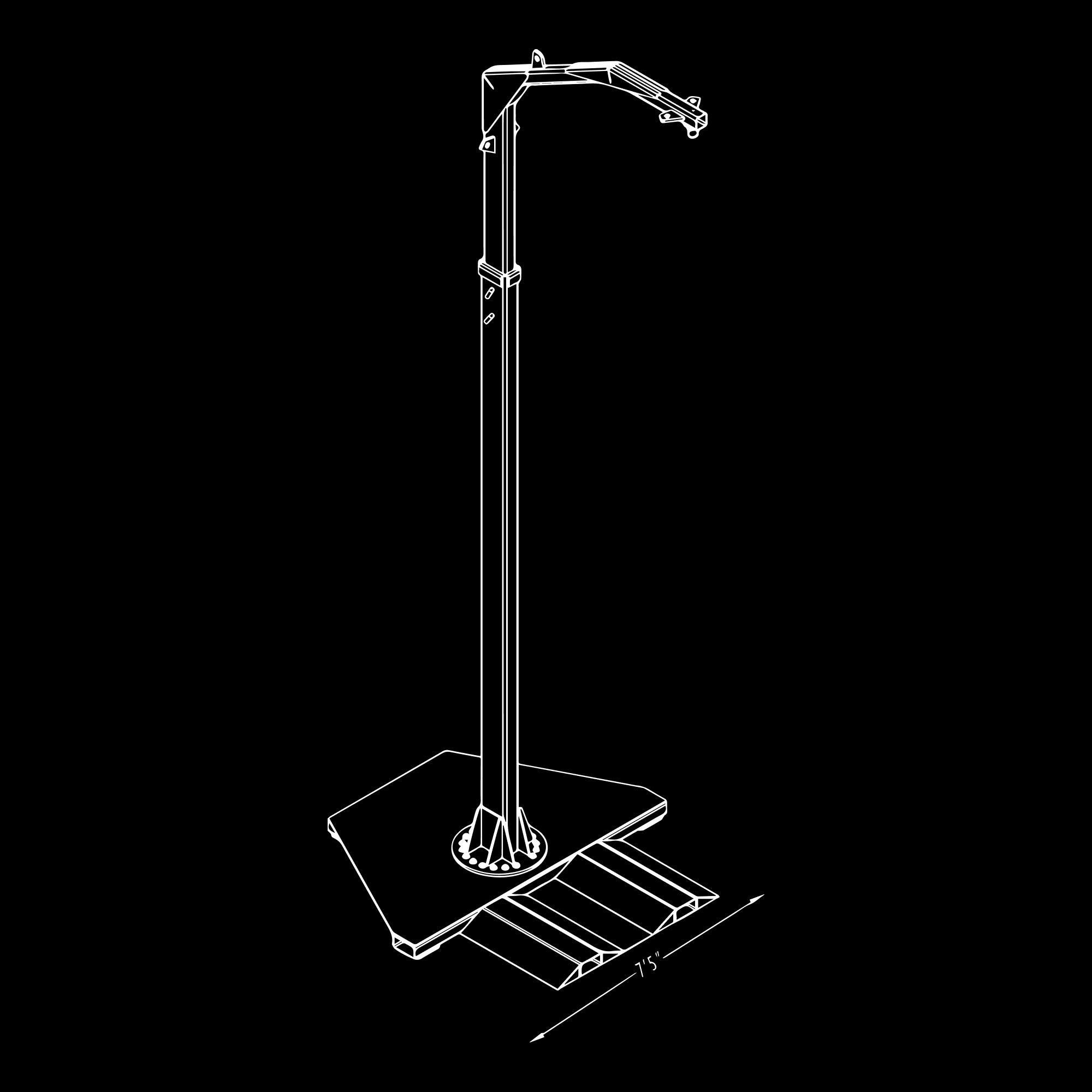

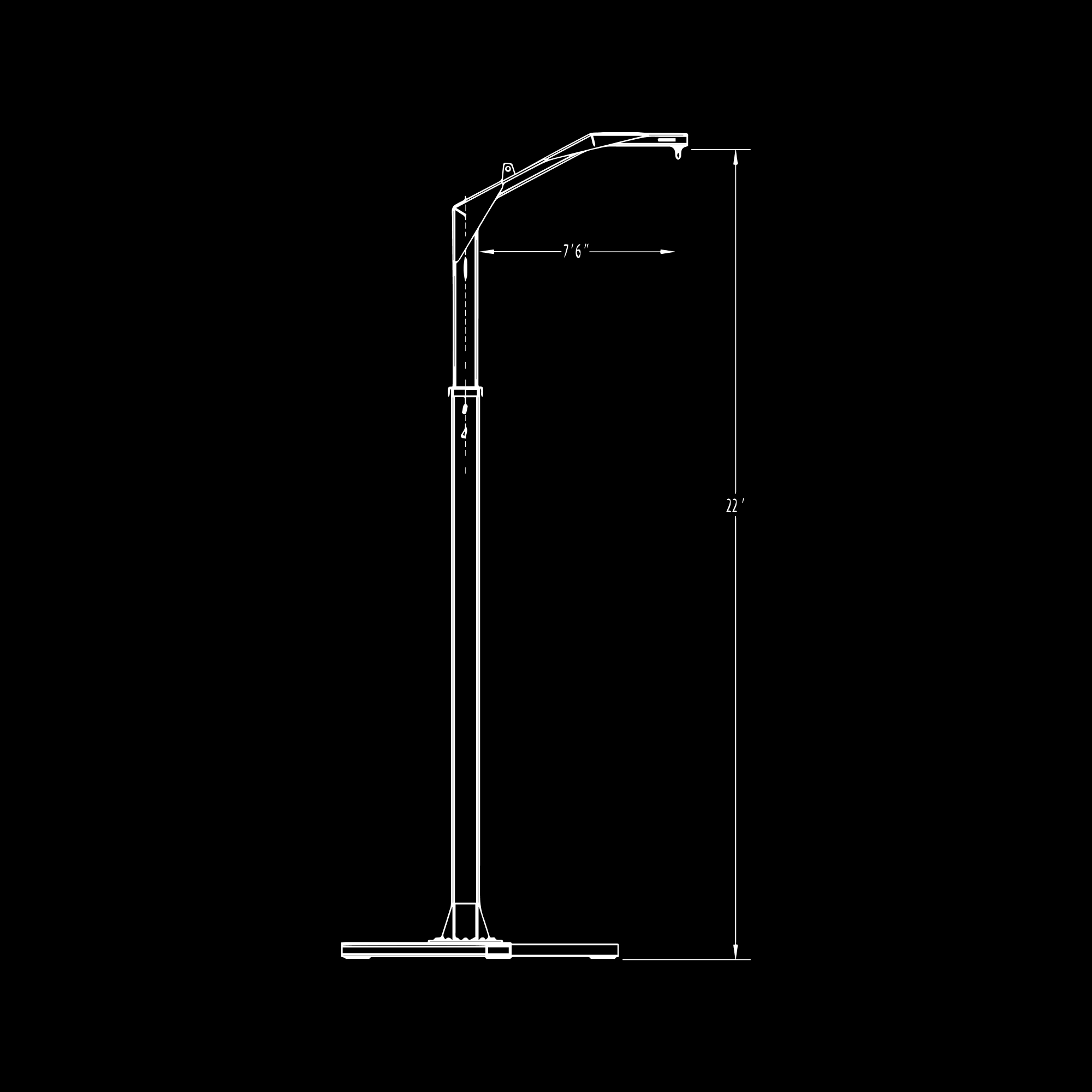

A truck-counterweighted fall protection system uses the weight of a parked truck as the counterweight for an overhead anchor. On the X550, drive-over thresholds sit under the truck's wheels, and the loaded vehicle stabilizes the davit. This delivers overhead fall protection at flatbed truck loading platforms, tanker trucks, and truck maintenance bays without permanent installation or separate ballast weights.

The X550 is rated for one user at a time, with a maximum anchor point capacity of 310 lbs including the worker, tools, and attached fall protection equipment. For jobsites needing multi-user overhead anchorage, other Malta Dynamics XSERIES units can support two or three workers simultaneously.

Workers need a full body harness and a connecting device such as a self-retracting lifeline or energy-absorbing lanyard to complete the fall arrest system. Make sure the connector's fall clearance rating matches your working height above the ground. The X550 provides the overhead anchor point; personal protective equipment connects the worker to it.

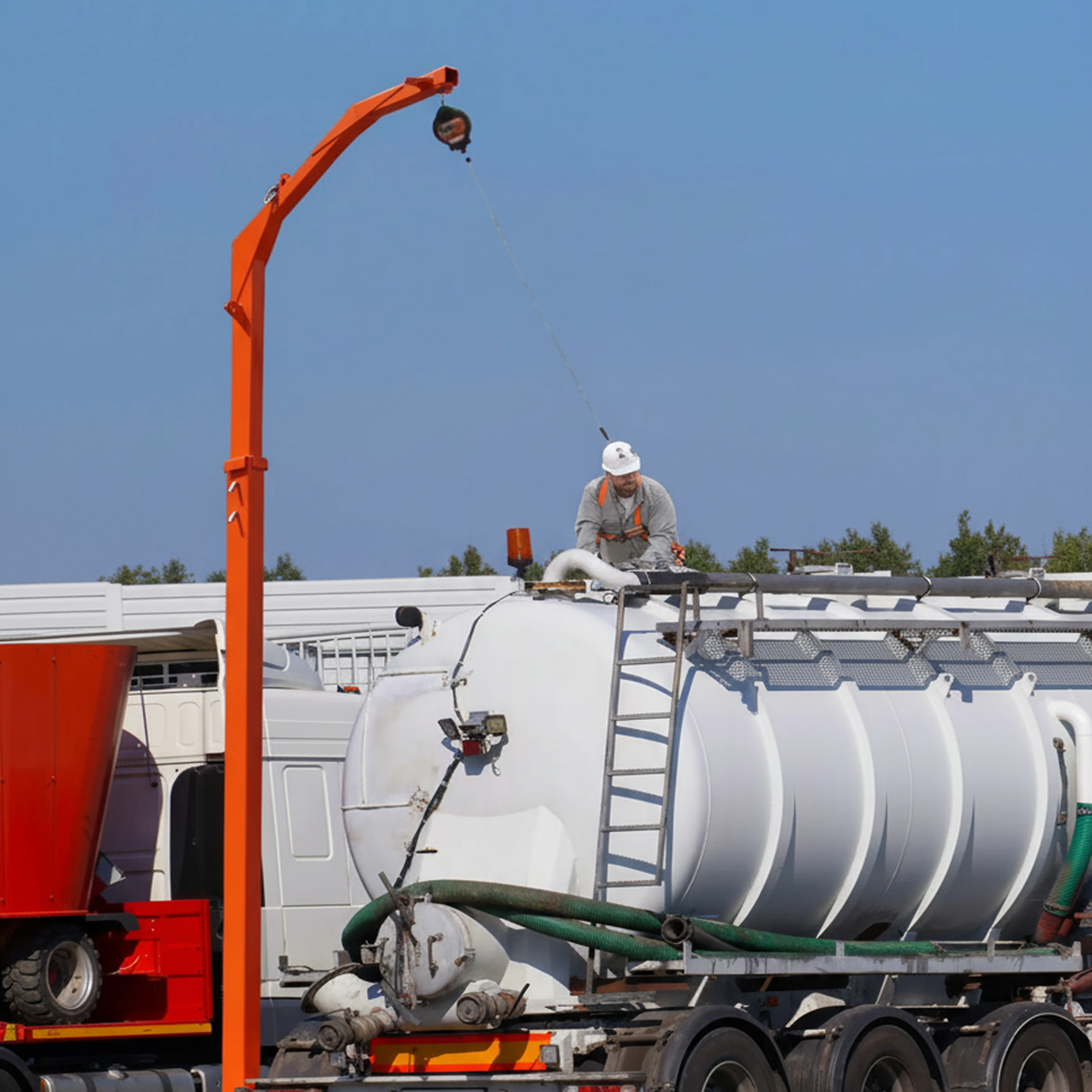

The X550 is designed for loading and unloading operations on flatbed trucks, tanker trucks, and other vehicles, along with rescue, retrieval, and confined space entry work. Common users include truck drivers, loading dock crews, industrial maintenance teams, and rescue personnel across the trucking and construction industry.

Yes. The X550 meets ANSI standards and exceeds OSHA requirements for fall arrest and fall restraint anchorage under 29 CFR 1926.502(d). Each anchor point is rated for 310 lbs per user in accordance with OSHA fall protection regulations (Source: OSHA.gov).
