X1000E

Name: X1000E
Brand: Malta Dynamics
Availability: InStock

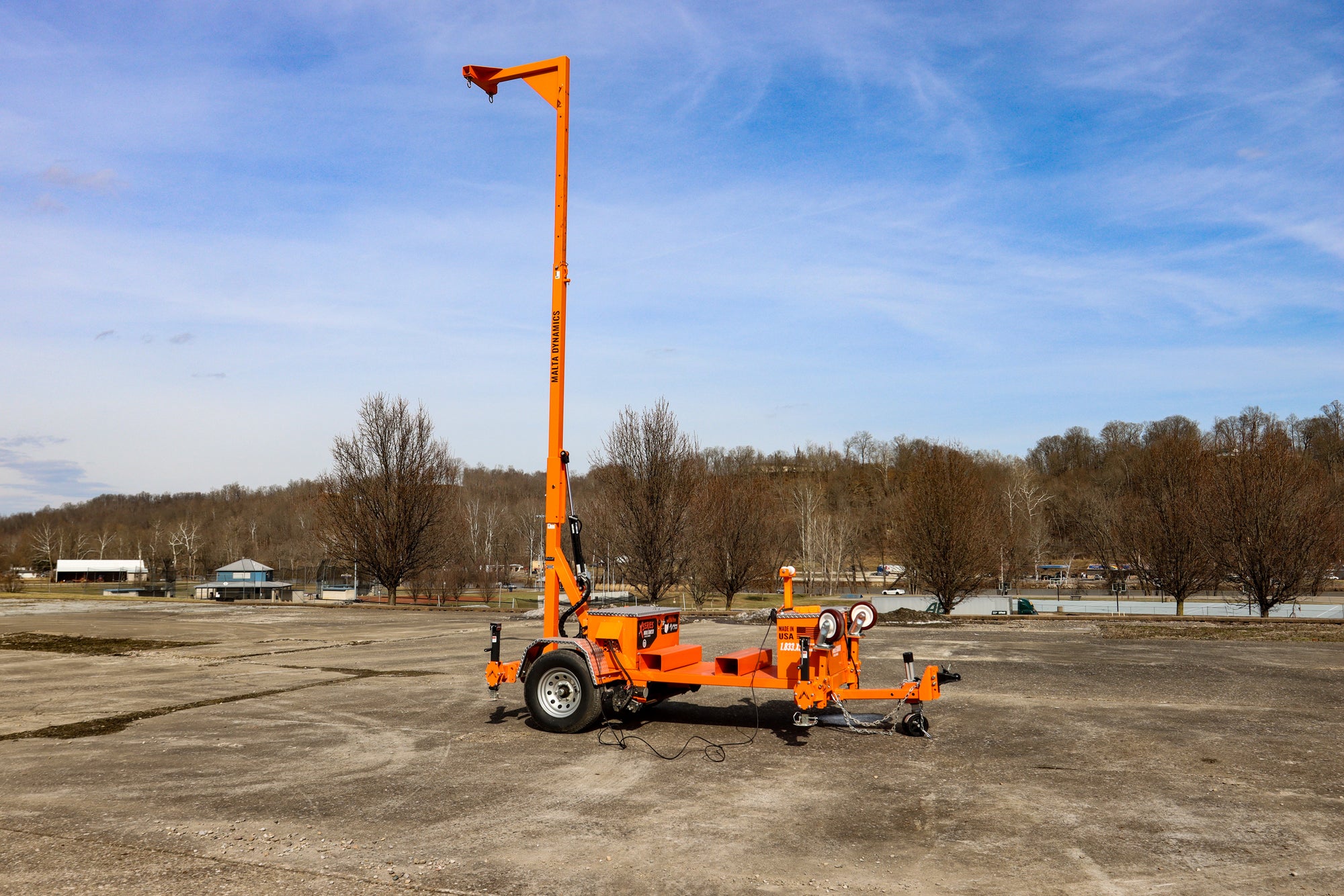

The XSERIES X1000E is a road-towable mobile fall protection system for two workers, providing overhead anchorage from 17 to 22 feet. Featuring an electric-powered hydraulic system with remote control, it ensures quick and efficient deployment with OSHA-compliant protection.

More Information

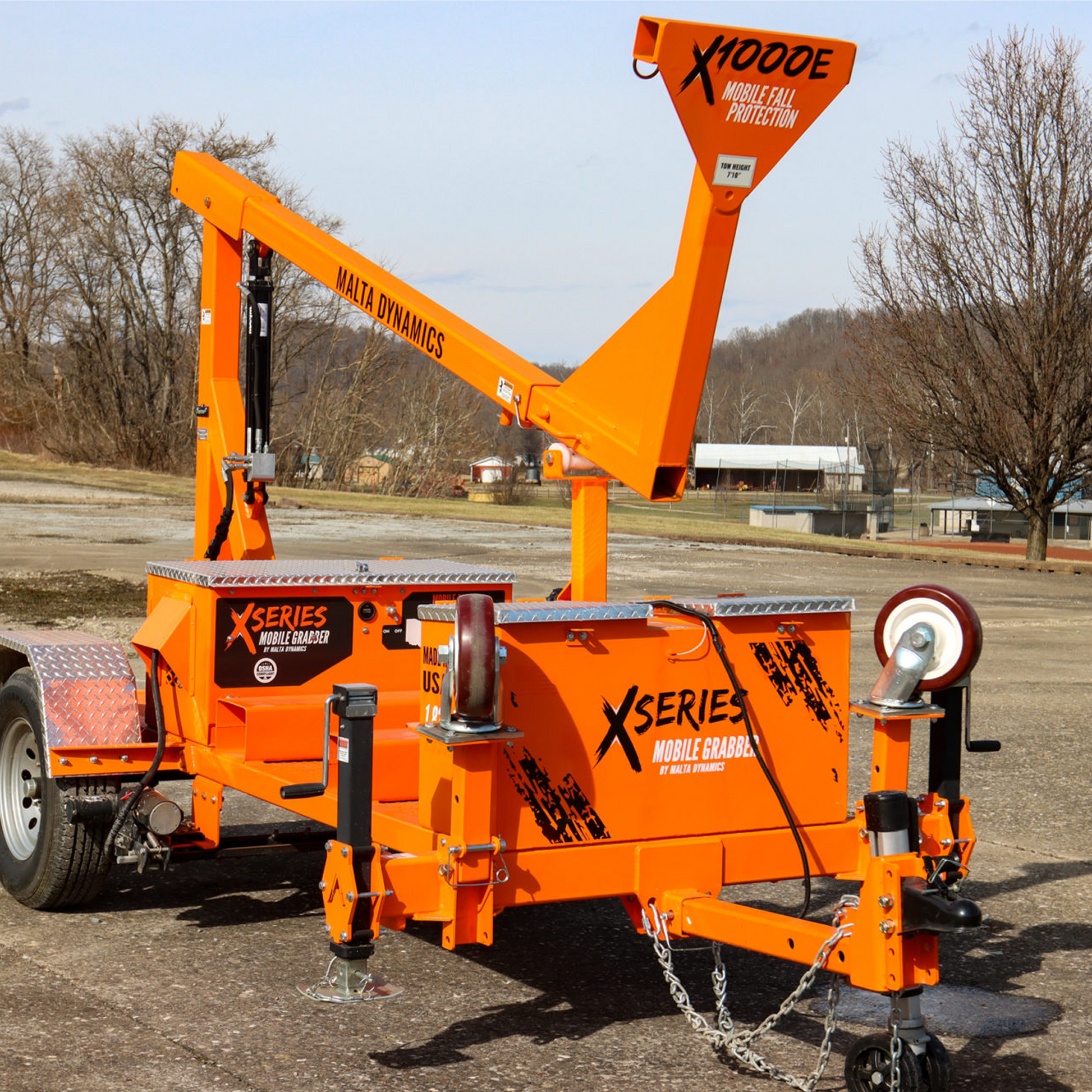

The XSERIES X1000E is an advanced road-towable mobile fall protection system designed for two workers, delivering overhead anchor points from 17 to 22 feet in height. This upgraded version of the X1000 features an electric-powered hydraulic system with remote control operation, offering enhanced convenience, speed, and ease of setup compared to the manual hand-pump system of the X1000.

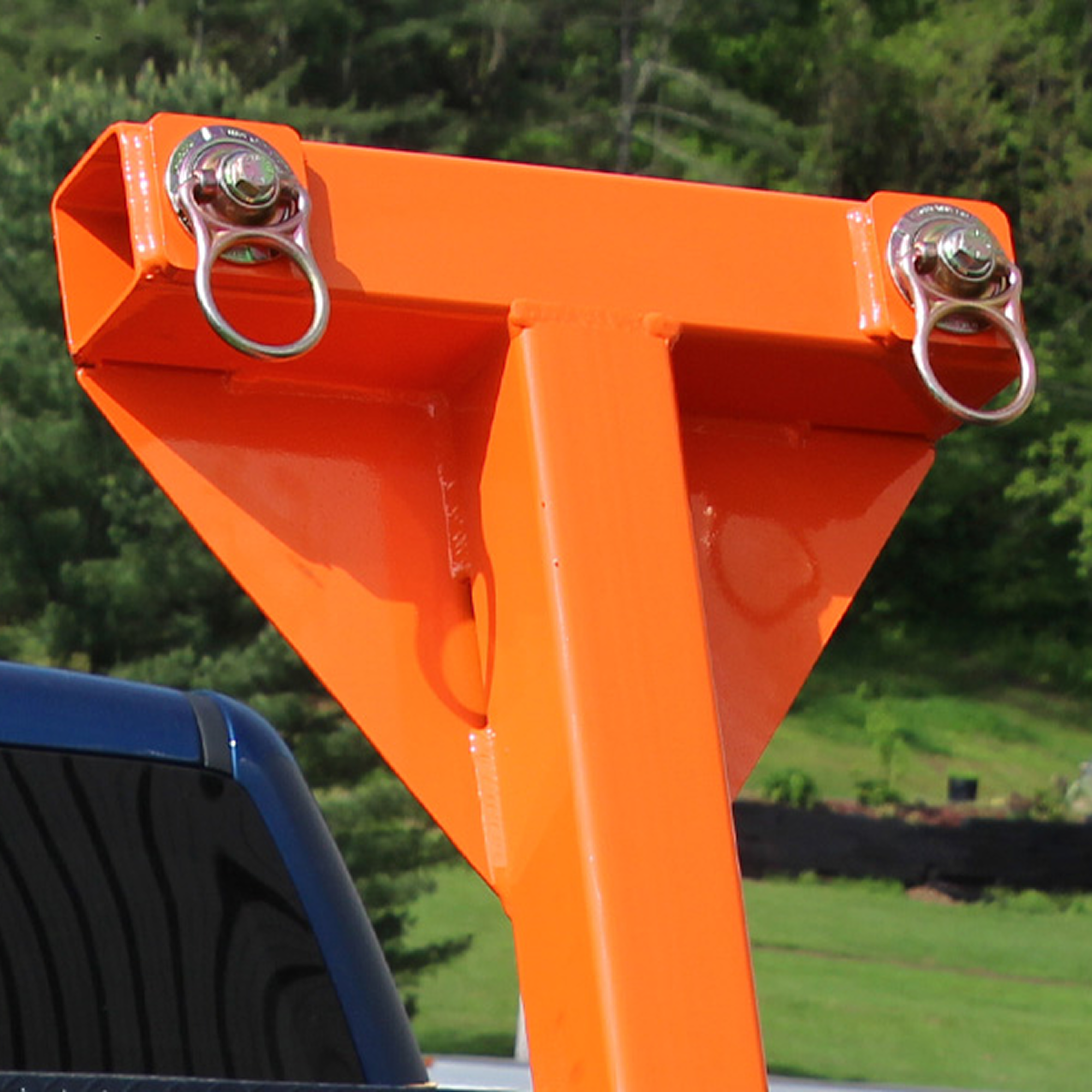

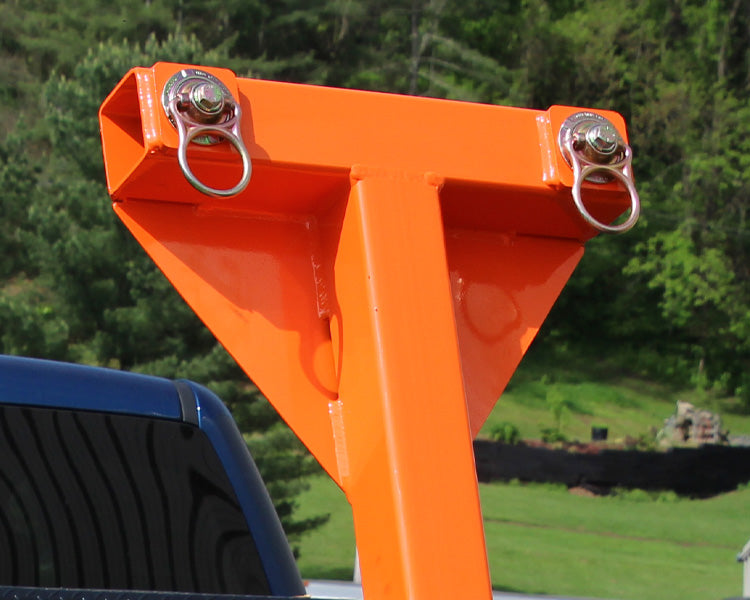

Providing a reliable solution for fall arrest and fall restraint applications, the X1000E is perfect for dynamic job sites where permanent anchorage is unavailable. Each anchor point supports up to 310 lbs., ensuring OSHA-compliant overhead protection across a wide range of work environments.

Manufactured in an ISO-9001 certified facility in the USA, the X1000E meets and exceeds strict OSHA fall protection standards. Its compact design allows for quick and efficient setup on roofs, work areas, or remote job sites, while the electric hydraulic system with remote control makes positioning and adjusting the system effortless. The X1000E’s adjustable outrigger jacks provide stability, allowing your team to set up tie-off points in a fraction of the time, without the need for additional lifting equipment.

With the XSERIES X1000E, you get dependable mobile fall protection, streamlined deployment, and OSHA-compliant safety, ensuring that your crew stays safe and productive on the job.

Resources

XSERIES Brochure

X1000E Spec Sheet

Inspection Form

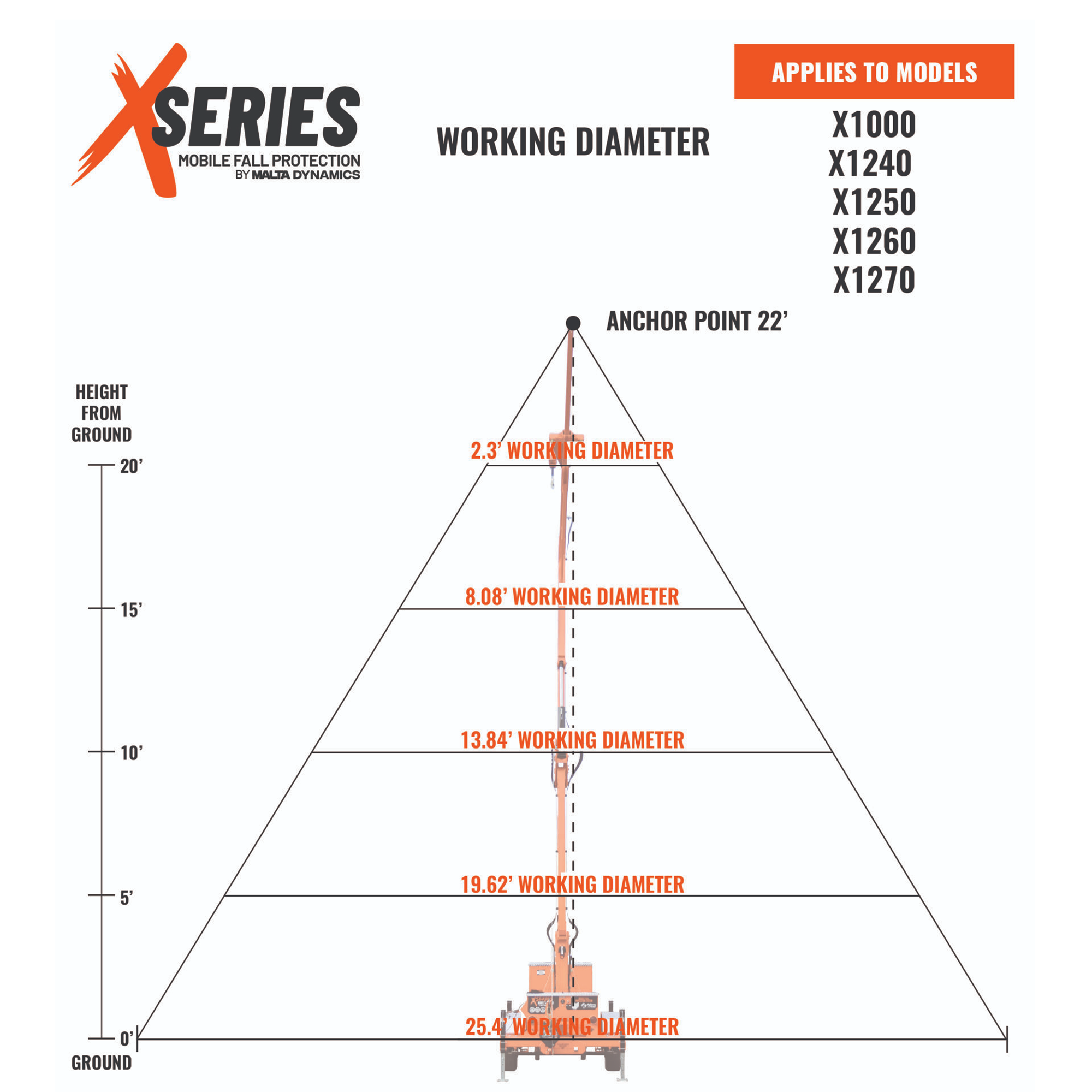

Working Diameter Charts

Declaration of Conformity

Declaration of Conformity (v2)

X1000E Instruction Manual

X1000-EN Instruction Manual

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	2900 lbs
MAX. WORKING HEIGHT	22' (6.7m)
MIN. WORKING HEIGHT	17' (5.18m)
MAX. FOLDED HEIGHT	7'10" (2.38m)
TOWING WIDTH	5'8" (1.73m)
OVERALL LENGTH	12'9" (3.89m)
MAX. ARM REACH OUT	3' (.91m)
MAX. ANCHOR POINT CAPACITY	310 lbs per Anchor
MAX. ALLOWABLE USERS	2
MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	4-Pole Blade
ACTUATING METHOD	Electric Powered Hydraulic System
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Engineered for Every Work Area.

Discover how XSERIES systems provide dependable overhead fall protection with quick deployment and maximum portability. Each model incorporates safety features to support both fall restraint and fall arrest systems, designed to perform across diverse terrains and applications.

Blueprints & More.

Rapid Setup, Maximum Coverage.

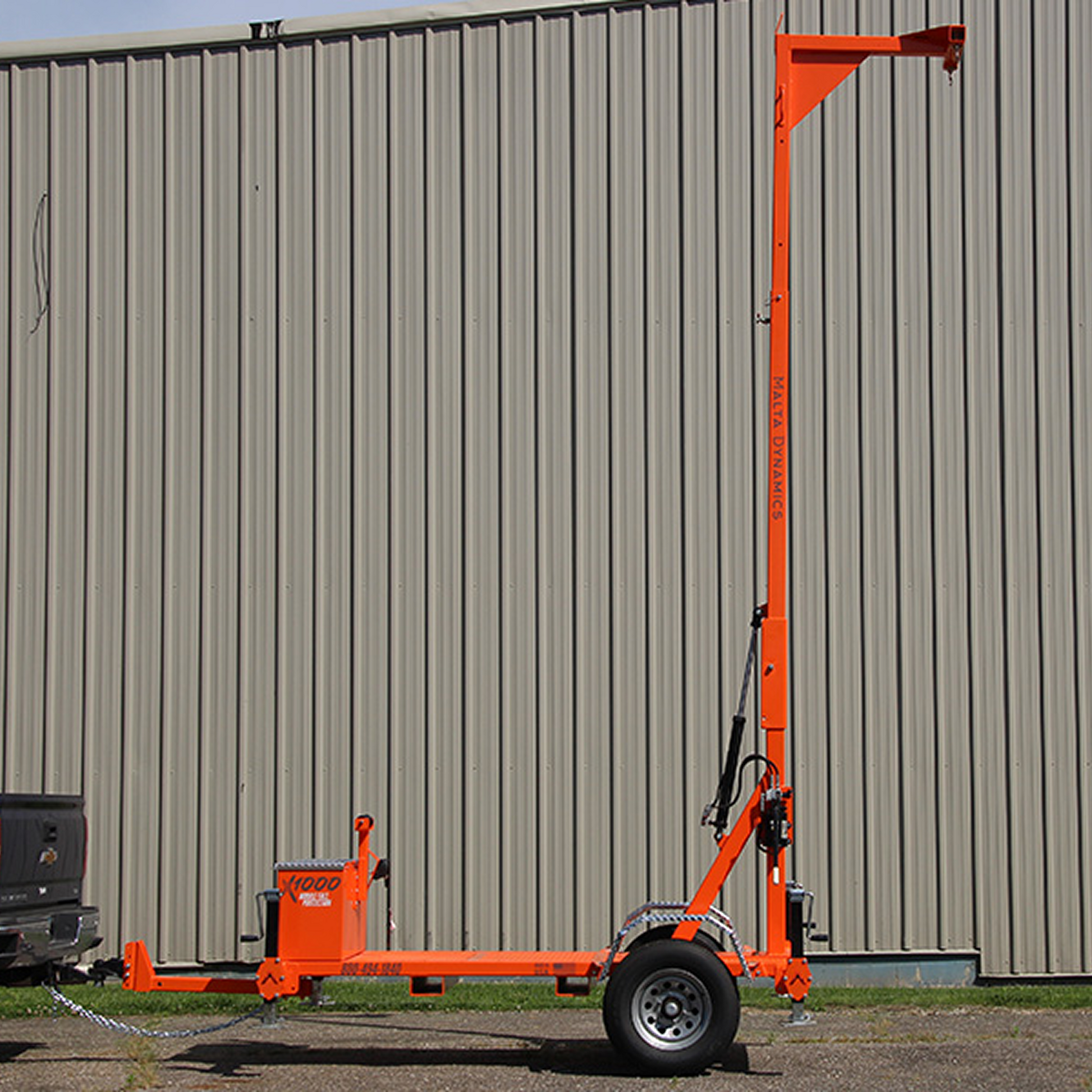

The X1000's compact design enables quick setup on any roof, work area, or remote jobsite. Its manual hydraulic system and adjustable outrigger jacks allow your team to position the unit, stabilize the base, and establish tie-off points efficiently using the dual overhead anchorage points. The XSERIES delivers dependable mobile fall protection without the need for extra lifting equipment, keeping your crew safe and productive.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

At Malta Dynamics, we don’t just build fall protection—we use it every day. Our team comes from the field, and every mobile solution we engineer is shaped by real-world experience.

The X1000 Mobile Grabber represents our trusted XSERIES collection: high-performance, portable, and ready for the demands of real-world job sites. From anchor points to restraint systems, every component is engineered for safety, compliance, and operational efficiency.
