X1270 Mobile Grabber Rental | Anchor Point

Rent the X1270 Mobile Grabber

About the X1270 Mobile Grabber.

The X1270 Mobile Grabber is a road-towable mobile fall protection system that provides an overhead mobile anchor point for up to two workers at height. This portable system delivers the overhead fall protection your crew needs on a temporary worksite without permanent installation or custom-engineered fall protection.

The X1270 supports two workers simultaneously at anchor heights from 2 feet up to 45 feet, with each attachment point rated to 310 lbs. Multiple synchronized hydraulic cylinders drive a folding, reinforced steel mast, so crews can adjust anchor height on-site to match the work area, delivering the same overhead protection at 20 feet, fully extended at 45 feet, or any height in between.

The X1270 uses a 12-volt battery-powered hydraulic system operated through a 15-foot corded remote control. Manual outrigger jacks stabilize the unit at the job site so workers can position the trailer, adjust the mast, tie off with a self-retracting lifeline or shock-absorbing lanyard, and start work in minutes. No lifts, ladders, or permanent anchor points required.

Built in Malta Dynamics' ISO 9001-certified facility in the United States, the X1270 exceeds OSHA standards for fall arrest and fall restraint anchorage. Renting gives you access to this mobile fall protection solution for short-term projects, seasonal work, or specialty jobs across the construction industry without the full investment of a permanent solution.

Why XSERIES?

Overhead Mobile Anchor Point

The X1270 provides a true overhead mobile anchor point at the job site, giving your crew a temporary anchor point where and when they need it, without the cost of permanent installation. Overhead tie-off reduces free-fall distance and swing hazards compared to foot-level anchorage.

Up to 45 Feet of Reach

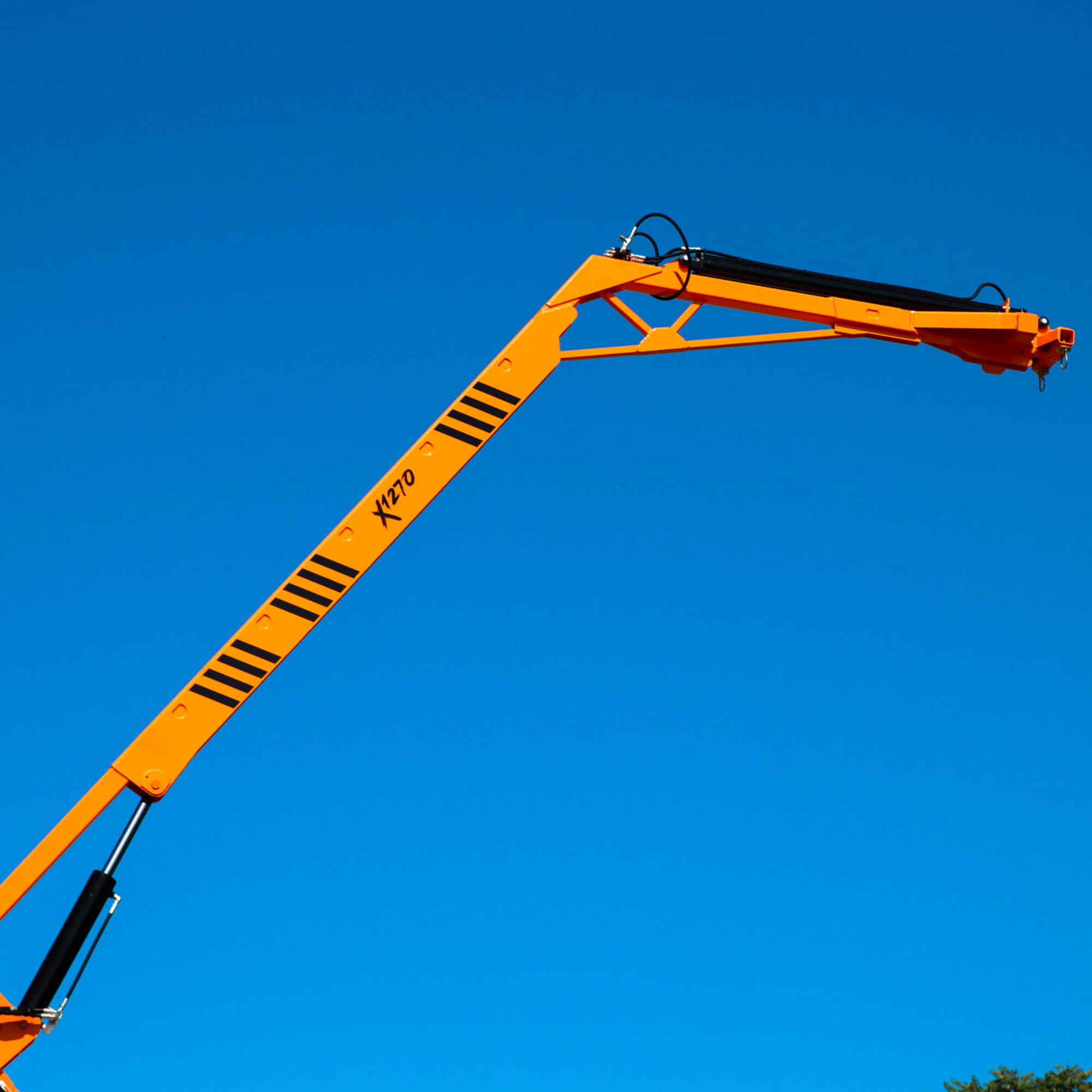

The folding steel mast raises overhead anchor points up to 45 feet, positioning tie-offs where your crew needs it without lifts or permanent installation. Adjust between 20 and 45 feet on-site to match the height of the work.

Two-Worker Capacity

Both workers can tie off simultaneously at any working height from 2 to 45 feet, with anchor points rated to 310 lbs each. Multiple synchronized hydraulic cylinders keep the mast steady across every configuration.

Road-Towable Design

Tow the X1270 between job sites or across large work areas at posted highway speed with a standard vehicle and 7-pole blade trailer plug. Folded down, the unit measures 8'3" tall by 5'9" wide by 20'10" long. No special transport equipment needed.

Remote-Controlled Setup

Battery-powered operation, an electric-driven hydraulic mast, and a 15-foot corded remote control allow crews to deploy the X1270 and adjust the mast from a safe position. Four manually adjustable outrigger jacks stabilize the trailer during setup on level ground.

Exceeds OSHA Requirements

Every X1270 is tested beyond OSHA regulations for fall arrest systems with a built-in safety factor that meets or exceeds industry standards. Rent with confidence knowing your mobile fall protection meets safety requirements.

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	6700 lbs
MAX. WORKING HEIGHT	45' (13.7m)
MIN. WORKING HEIGHT	2' (.6m)
MAX. FOLDED HEIGHT	8'3" (2.5m)
TOWING WIDTH	5'9" (1.8m)
WORKING WIDTH	10'9" (3.3m)
OVERALL LENGTH	20'10" (6.4m)
MAX. ARM REACH OUT	10'4" (3.1m)
MAX. ANCHOR POINT CAPACITY	310 lbs
MAX. ALLOWABLE USERS	2
MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	7-Pole Blade
ACTUATING METHOD	Electric Powered Hydraulic System
CONTROLS	Remote (15' Cord length)
POWER SOURCE	12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
CHARGING SYSTEM	110 Volt Quick Smart Charger with Cord
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

Pricing.

DAILY	WEEKLY	MONTHLY
$600	$2,800	$6,000

XSERIES Rental Add-Ons.

Want to outfit your XSERIES with some of these great add-ons? Contact us to request a quote.

Explore All Add-Ons

Mobile Grabber Go!

$0.00

Off Road Mobile Grabber Go!

$0.00

Confined Space

$0.00

Outrigger Pads

$0.00

Ice Pads

$0.00

Solar Charger

$0.00

Spare Tire

$0.00

Mobility Package X500/X500A

$0.00

Frequently Asked Questions

How many workers can use the X1270 at once?

The X1270 supports two workers simultaneously at any anchor height between 2 and 45 feet, with each anchor point rated to 310 lbs per user. Both workers can be tied off at the same overhead anchor point elevation, adjusted on-site to match the height of the work.

What fall protection equipment do I need with the X1270?

Workers need a full body harness and a connecting device such as a self-retracting lifeline or shock-absorbing lanyard to complete the fall arrest system. The X1270 provides the overhead anchor point; personal fall protection equipment connects the worker to it. Regular inspection of the harness and connecting device is required before each use.

How is the X1270 transported to the job site?

The X1270 is road-towable at posted highway speed and connects to a standard vehicle with a 7-pole blade trailer plug. Folded down, the unit measures 8'3" tall by 5'9" wide by 20'10" long. Malta Dynamics can also coordinate delivery directly to your location as part of the rental process.

How long does setup take?

The X1270 uses an electric-powered hydraulic mast that operators control with a 15-foot corded remote, along with four manually adjustable outrigger jacks for stabilization. Trained operators can position the unit, deploy the outriggers, extend the mast, and have workers tied off in minutes.

Is the X1270 compliant with OSHA requirements?

Yes. The X1270 is engineered and tested to exceed OSHA requirements for fall arrest and fall restraint anchorage under 29 CFR 1926.502(d). Each anchor point is rated for 310 lbs per worker in accordance with OSHA fall protection regulations (Source: OSHA.gov).
