X1200

Name: X1200
Brand: Malta Dynamics
Availability: InStock

The X1200 was designed to bring the capabilities of the XSERIES lineup into a smaller, more maneuverable package. Its compact dimensions and heavy-duty non-marking tires make it particularly well suited for indoor applications where floor surfaces, clearance and available space matter.

More Information

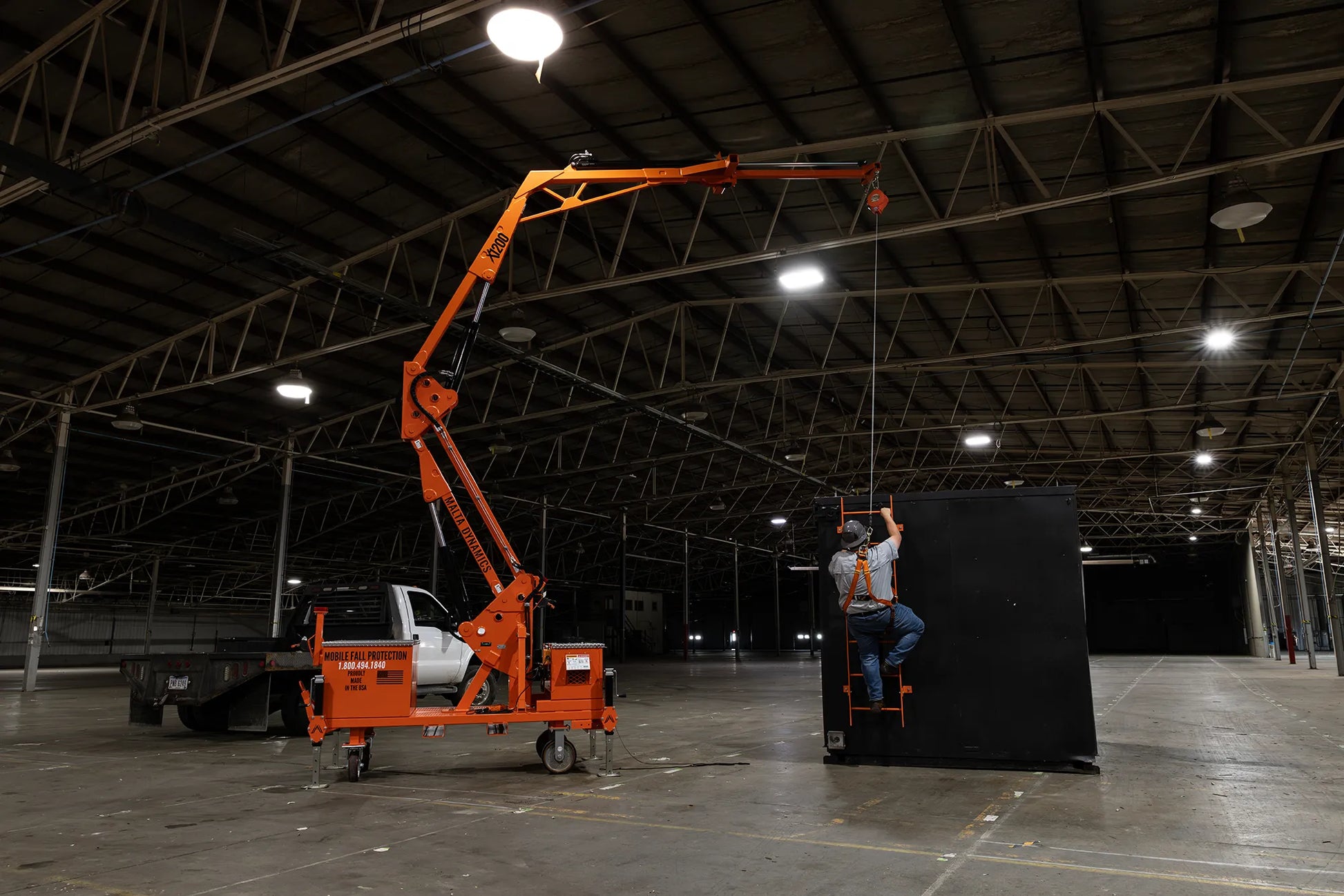

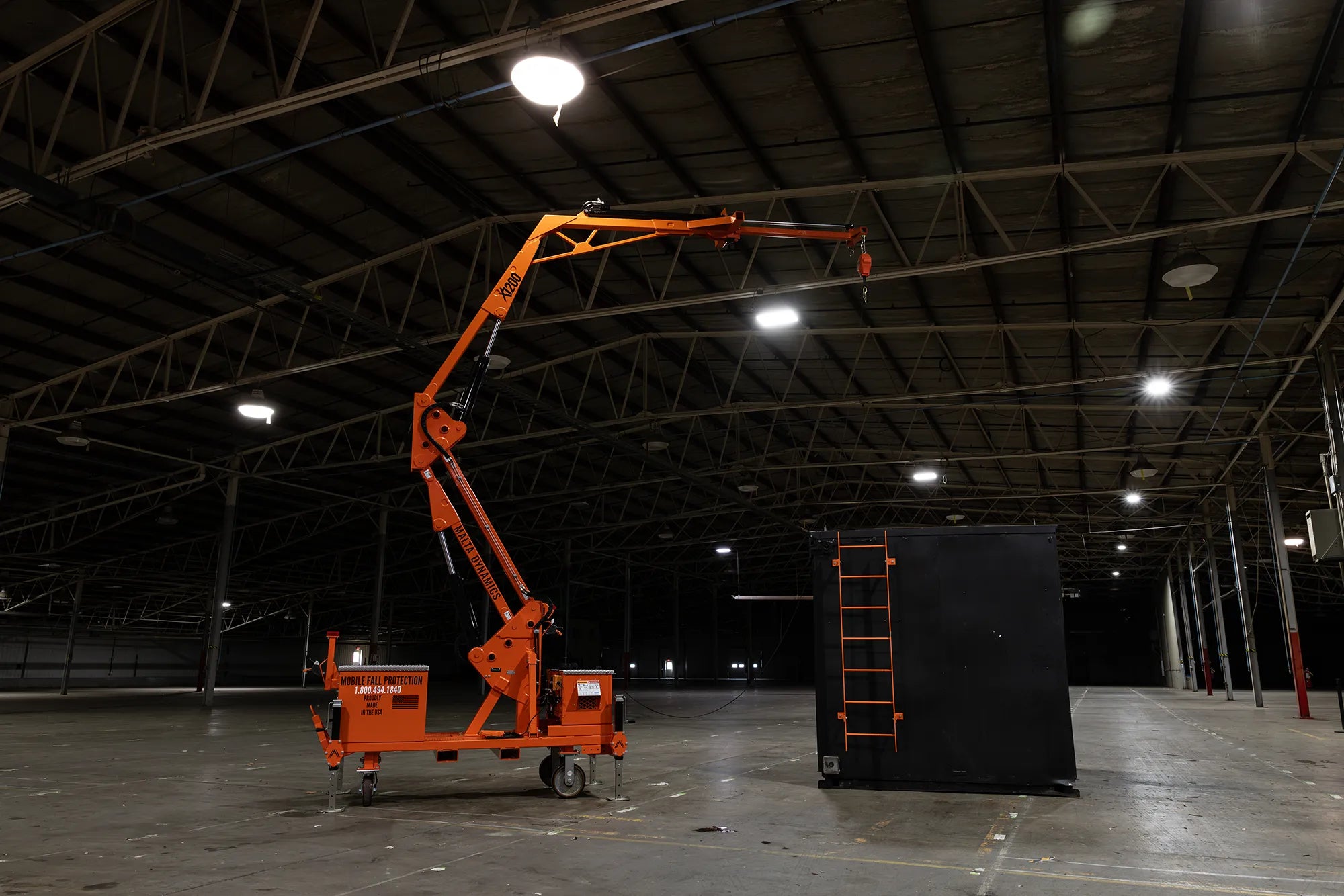

The all-new XSERIES X1200 Mobile Fall Protection System brings dependable overhead fall protection to jobsites where space and maneuverability matter. Based on the proven X1250 platform, the X1200 features a more compact design that makes it especially well suited for indoor applications, including warehouses, manufacturing facilities, plant maintenance areas and other environments where larger mobile systems may not be practical.

Designed to protect up to two workers, the X1200 provides a maximum working height of 28 feet and a maximum arm reach of 10'6". Each anchor point supports a maximum capacity of 310 lbs., giving crews reliable overhead tie-off while working at height.

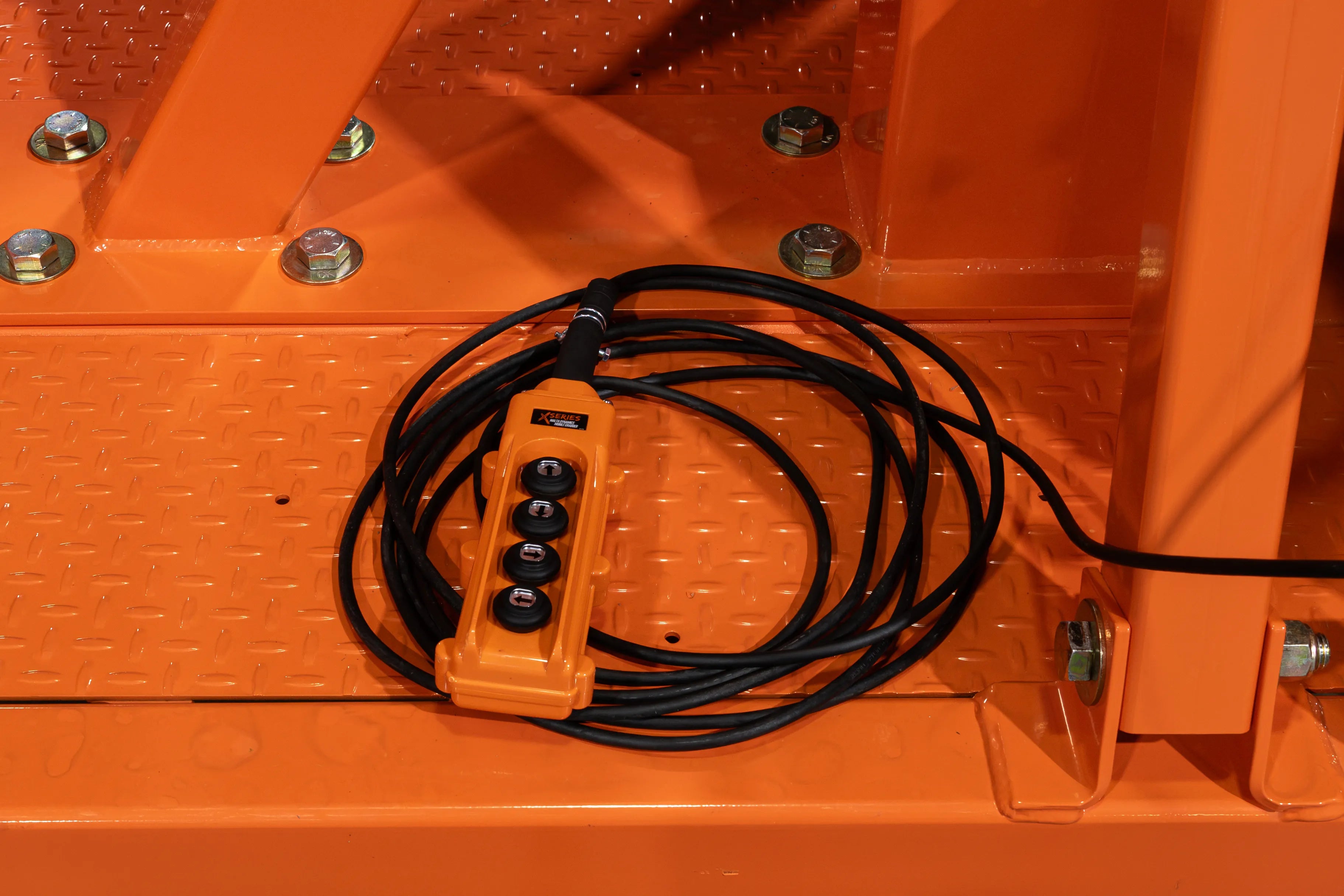

The X1200 is powered by a 12-volt electric hydraulic system and operated using a pendant remote with a 15-foot cord. Four manually adjustable jacks provide a stable outrigger system once the unit is positioned for work, while heavy-duty non-marking tires make the X1200 particularly well suited for finished floors and indoor work environments.

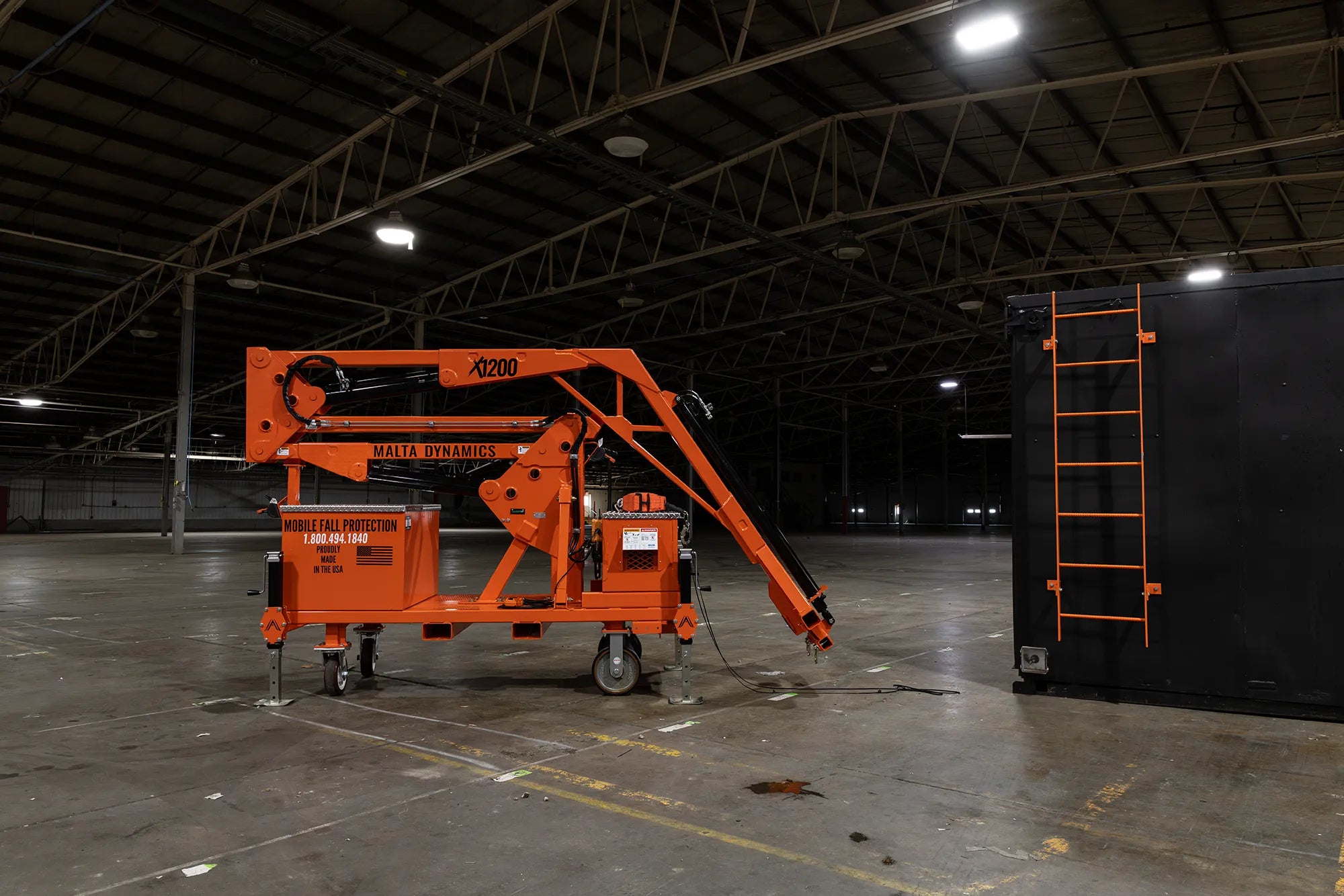

With an overall length of just 12'8", a frame width of 5'10" and a folded height of 7'2", the X1200 gives crews XSERIES protection in a compact package. Whether you're performing facility maintenance, working inside a warehouse or need mobile overhead fall protection in a tighter work area, the X1200 provides a practical solution without requiring permanent anchor points.

Resources

XSERIES Brochure

Spec Sheet

Working Diameter Charts

Inspection Form

Instruction Manual

Declaration of Conformity

Reach Charts

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	5,500 lbs.
MAX. WORKING HEIGHT	28' (8.5m)
MIN. WORKING HEIGHT	2' (.6m)
MAX. FOLDED HEIGHT	7'2" (2.2m)
FRAME WIDTH	5'10" (1.8m)
OVERALL LENGTH	12'8" (3.9m)
MAX. ARM REACH OUT	10'6"
MAX. ANCHOR POINT CAPACITY	310 lbs.
MAX. ALLOWABLE USERS	2
TOWING	Not Road-Towable
TIRES	Heavy-Duty Non-Marking

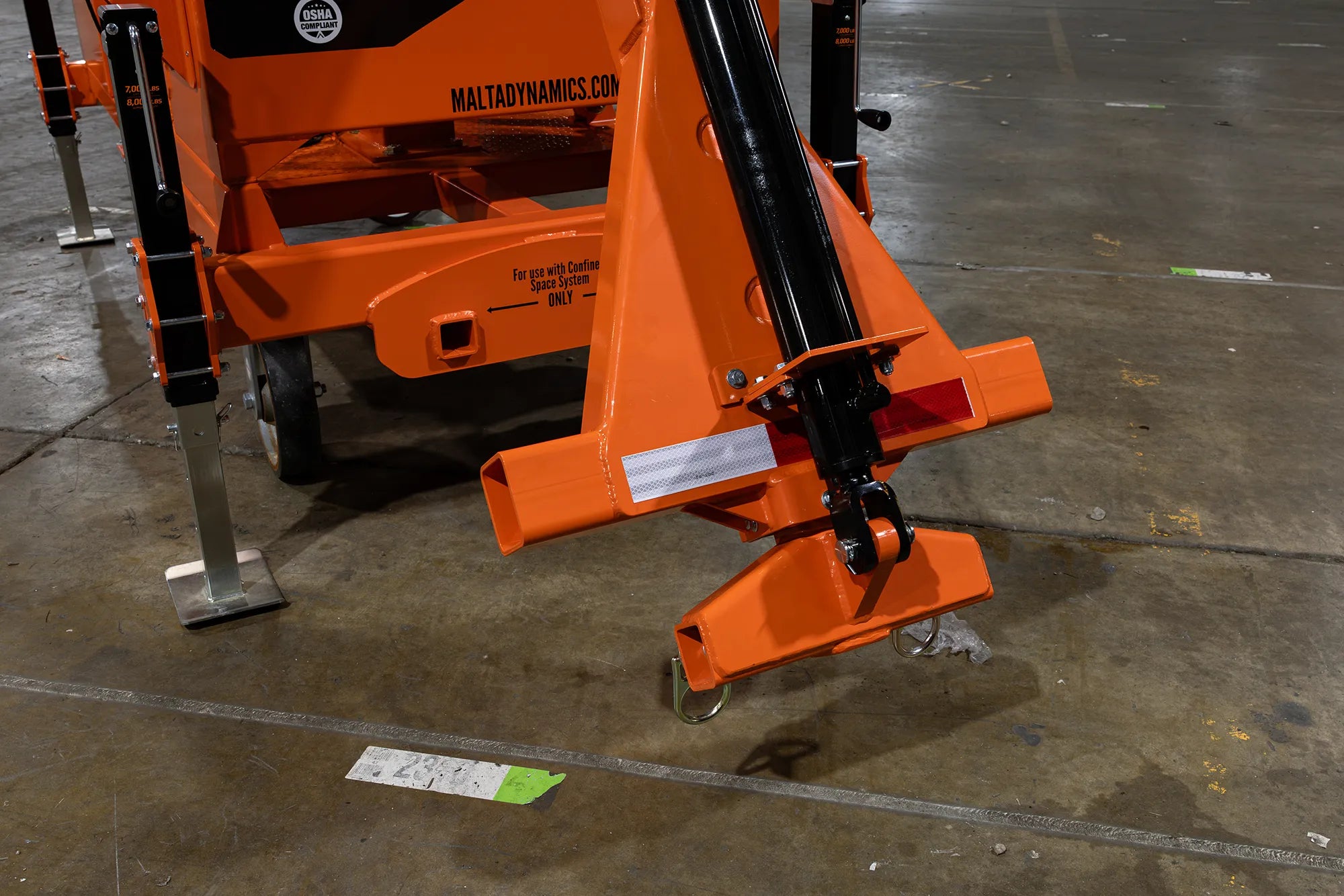

COUPLING	Drop-Down Lunette Ring
ACTUATING METHOD	Electric Powered Hydraulic System
CONTROLS	Pendant Remote (15' Cord Length)
POWER SOURCE	12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
CHARGING SYSTEM	110 Volt Quick Smart Charger with Cord
OUTRIGGER SYSTEM	Four (4) Manually Adjustable Jacks

OVERHEAD FALL PROTECTION

Built for work inside and out.

Explore a new way to bring XSERIES protection into tighter work areas.
The all-new X1200 combines overhead anchorage, straightforward setup and a
compact footprint to provide mobile fall protection for indoor facilities,
warehouses, manufacturing environments, maintenance operations and jobsites
where space is at a premium.

Blueprints & More.

Compact Design. Maximum Flexibility.

The X1200 was designed to bring the capabilities of the XSERIES lineup
into a smaller, more maneuverable package. Its compact dimensions and
heavy-duty non-marking tires make it particularly well suited for indoor
applications where floor surfaces, clearance and available space matter.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

At Malta Dynamics, we don’t just manufacture fall protection equipment, we use it. Our team has real jobsite experience, and that insight is built into every product we make.

The X1200 is part of our trusted XSERIES mobile fall protection solution, built for safety, compliance, and ease of use. This system gives your crew the confidence to work at height.

Why professionals trust Malta Dynamics:

Committed to Protecting Workers at Height
Field-Tested, Job-Ready Equipment
ISO 9001-Certified U.S. Manufacturing
Responsive Support from Qualified Experts

From temporary jobsites to rotating maintenance schedules, Malta Dynamics helps you solve fall protection challenges with simple, field-ready solutions that go wherever the work takes you.

When you choose Malta Dynamics, you’re choosing gear that works—because your crew depends on it.
