X1260

Name: X1260
Brand: Malta Dynamics
Availability: InStock

The XSERIES X1260 is a mobile fall protection anchor system for up to five users, featuring a 5-foot extendable mast with a 34-foot high-point anchor. It provides quick deployment, reliable protection, and is ideal for flat roofs, parapet walls, and structural steel.

More Information

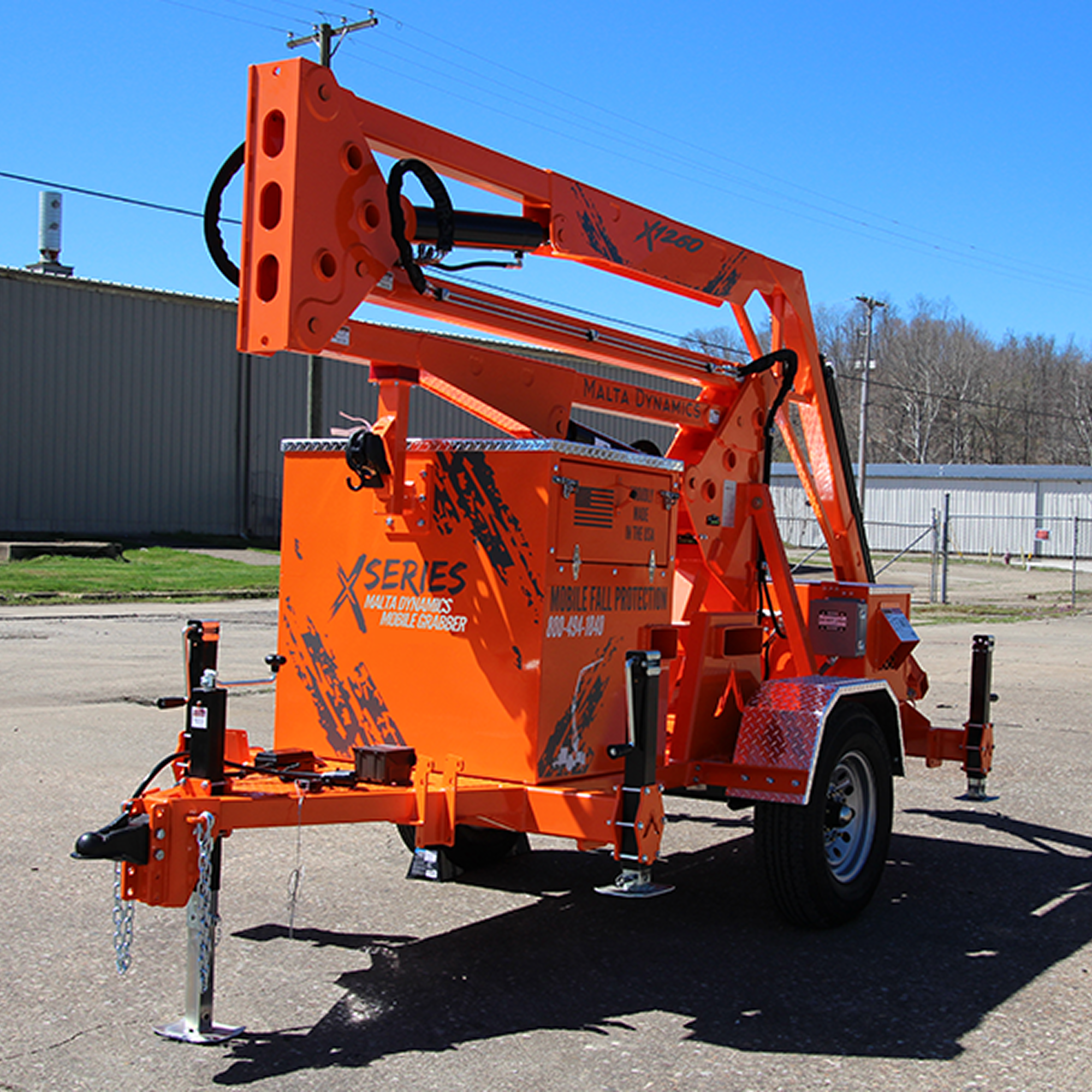

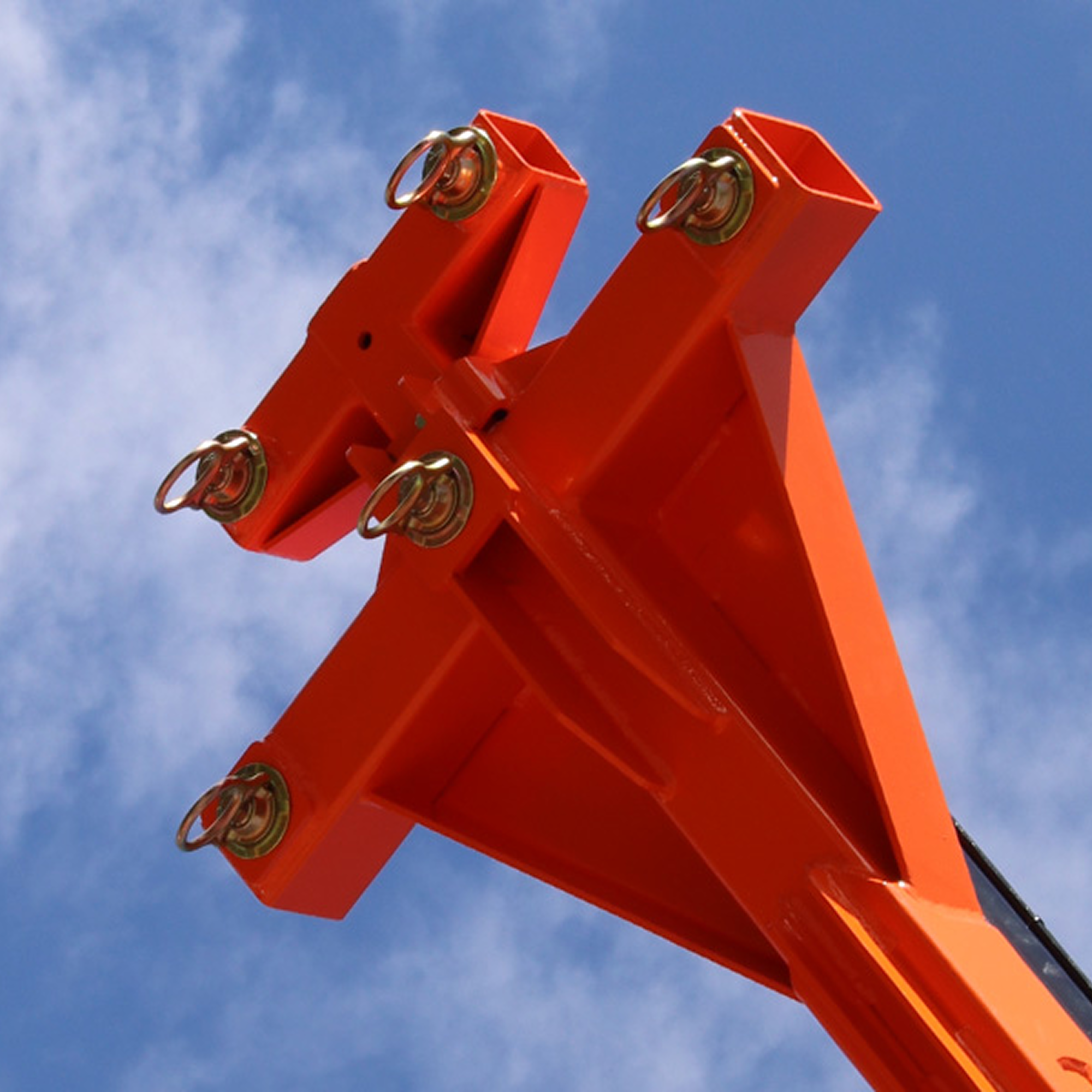

The XSERIES X1260 by Malta Dynamics is a portable mobile fall protection anchor system designed specifically for the construction industry and elevated work areas. Supporting up to five users with portable anchor points, each rated for 310 lbs., the X1260 provides reliable overhead fall protection across a wide range of job sites.

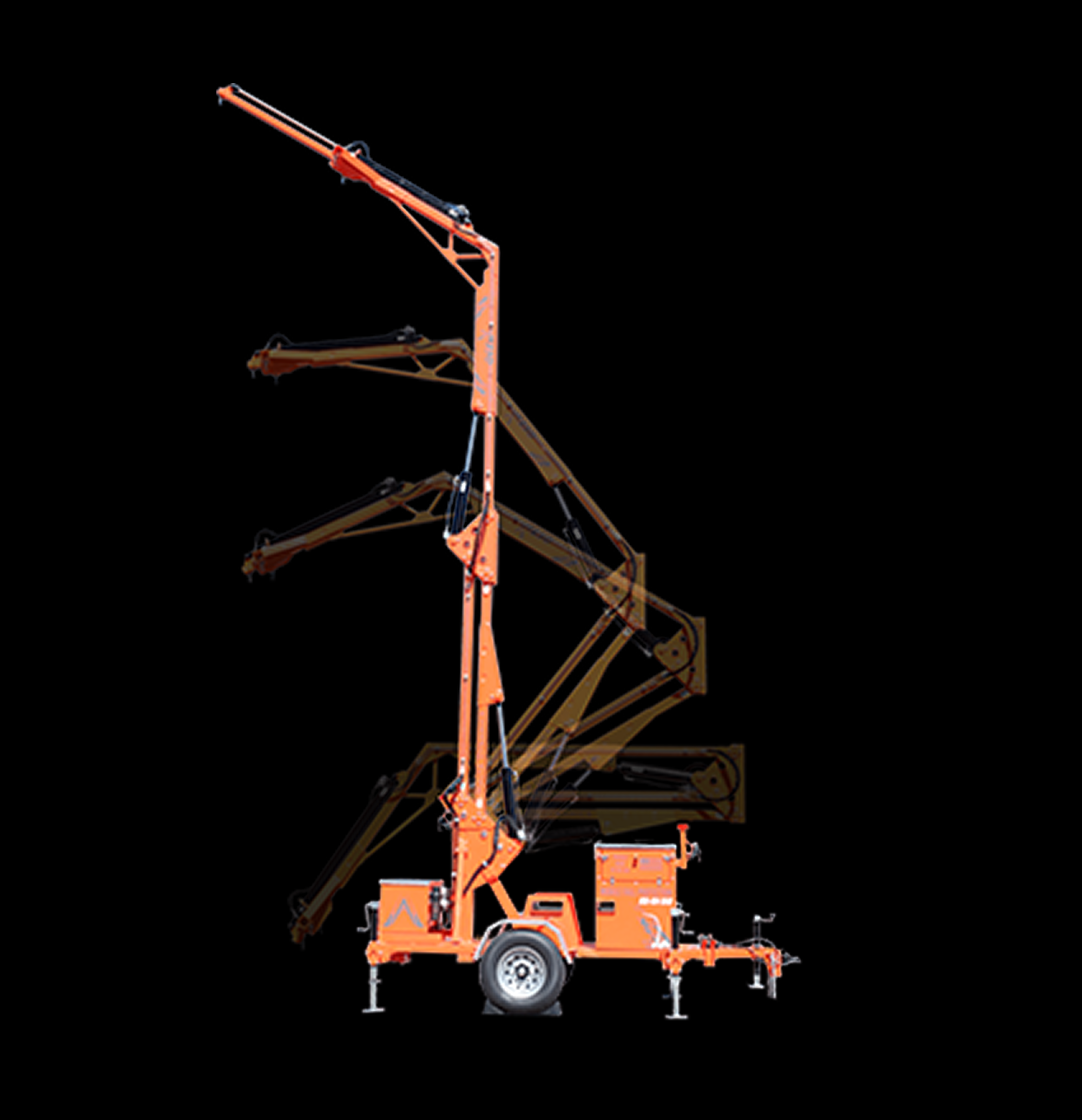

Equipped with a 5-foot extendable mast, the X1260 allows one worker to tie off at a high-point anchor of up to 34 feet without the need for permanent installation. This makes it an ideal solution for flat roofs, parapet walls, and structural steel, adapting easily to the unique conditions of each job site.

Designed for fast and simple setup, the X1260 features a battery-powered system, manual outrigger jacks, and a portable base, allowing the unit to be repositioned easily across job sites without the need for heavy machinery. The system can be deployed quickly and efficiently, ensuring that workers can tie off and start their tasks without extended delays.

Manufactured in an ISO 9001-certified facility in the USA, the X1260 is rigorously tested to exceed OSHA requirements, providing dependable fall protection in the most demanding environments. As with all Malta Dynamics products, the X1260 is field-tested and field-approved, ensuring that it meets the real-world needs of construction crews and industrial teams.

Built for quick deployment, the X1260 allows workers to position the unit, secure the base, and tie off with minimal setup time. Whether on a roof, worksite, or remote job site, this mobile fall protection system ensures your team stays safe and productive without delays.

Resources

XSERIES Brochure

Spec Sheet

Working Diameter Charts

Inspection Form

Instruction Manual

Maintenance Manual

X1250-EN Instruction Manual

Declaration of Conformity

Declaration of Conformity (EN)

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	5940 lbs

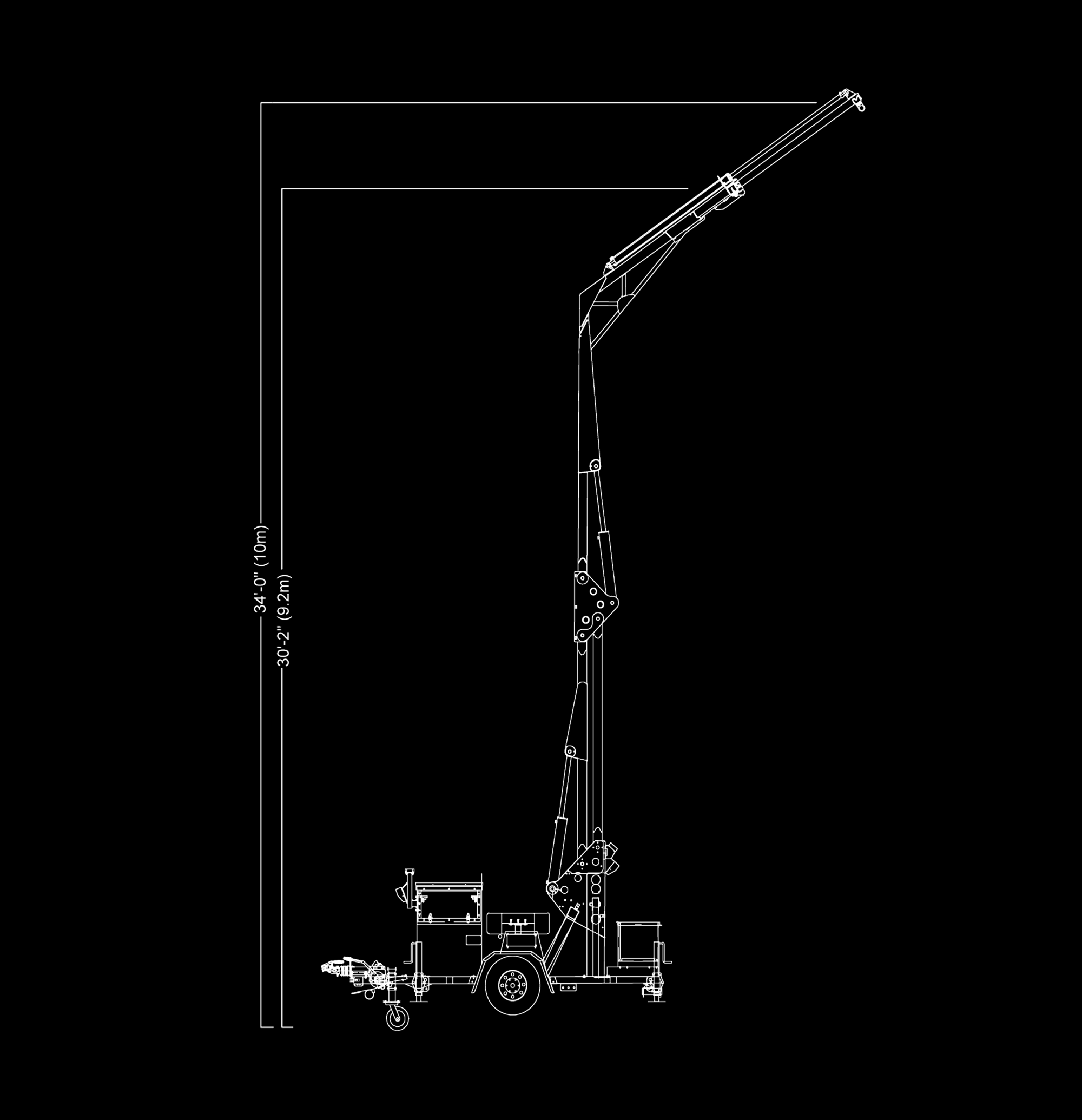

MAX. WORKING HEIGHT	34' (10.4m)
MIN. WORKING HEIGHT	2' (.6m)

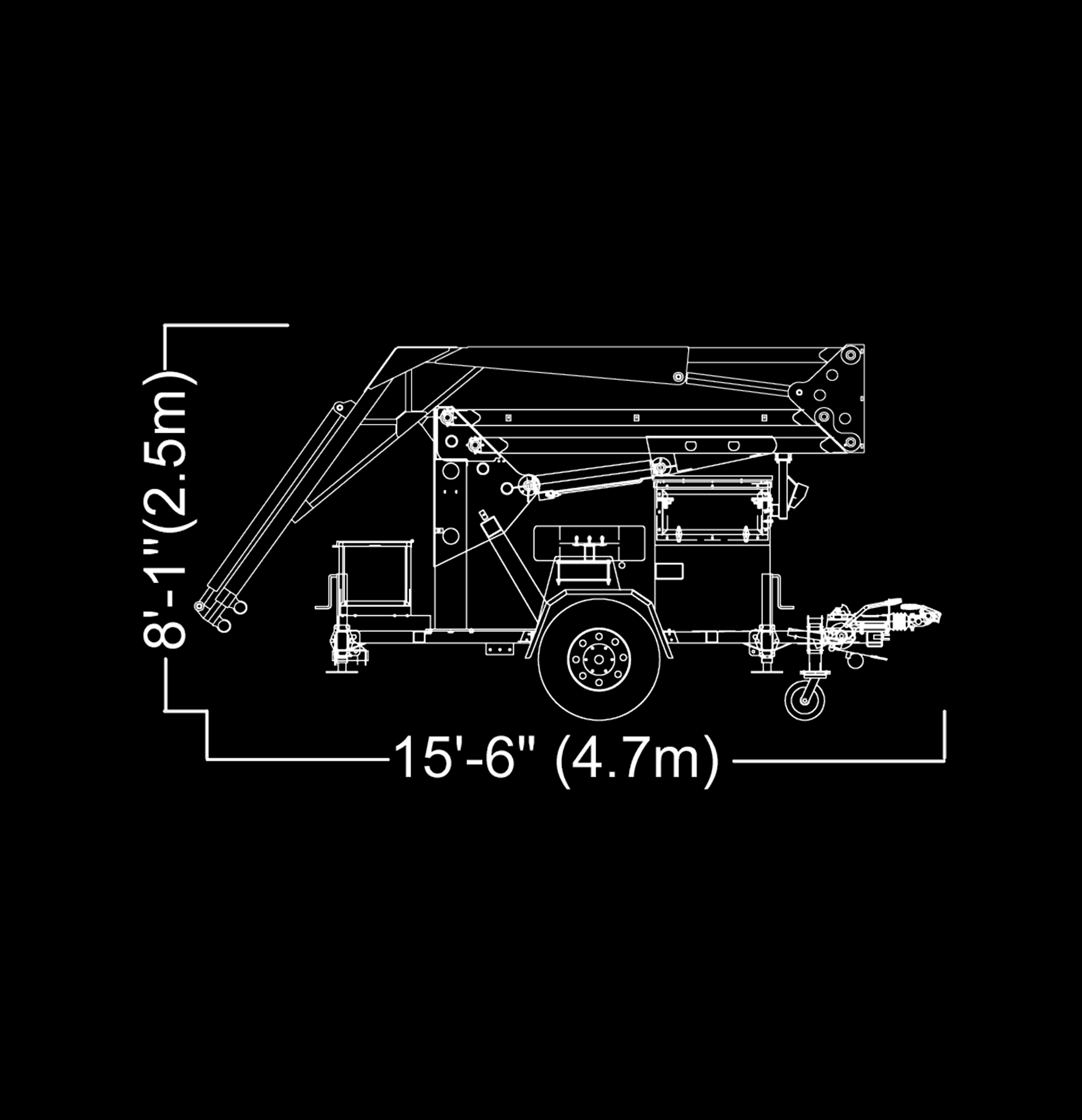

MAX. FOLDED HEIGHT	8'1" (2.6m)

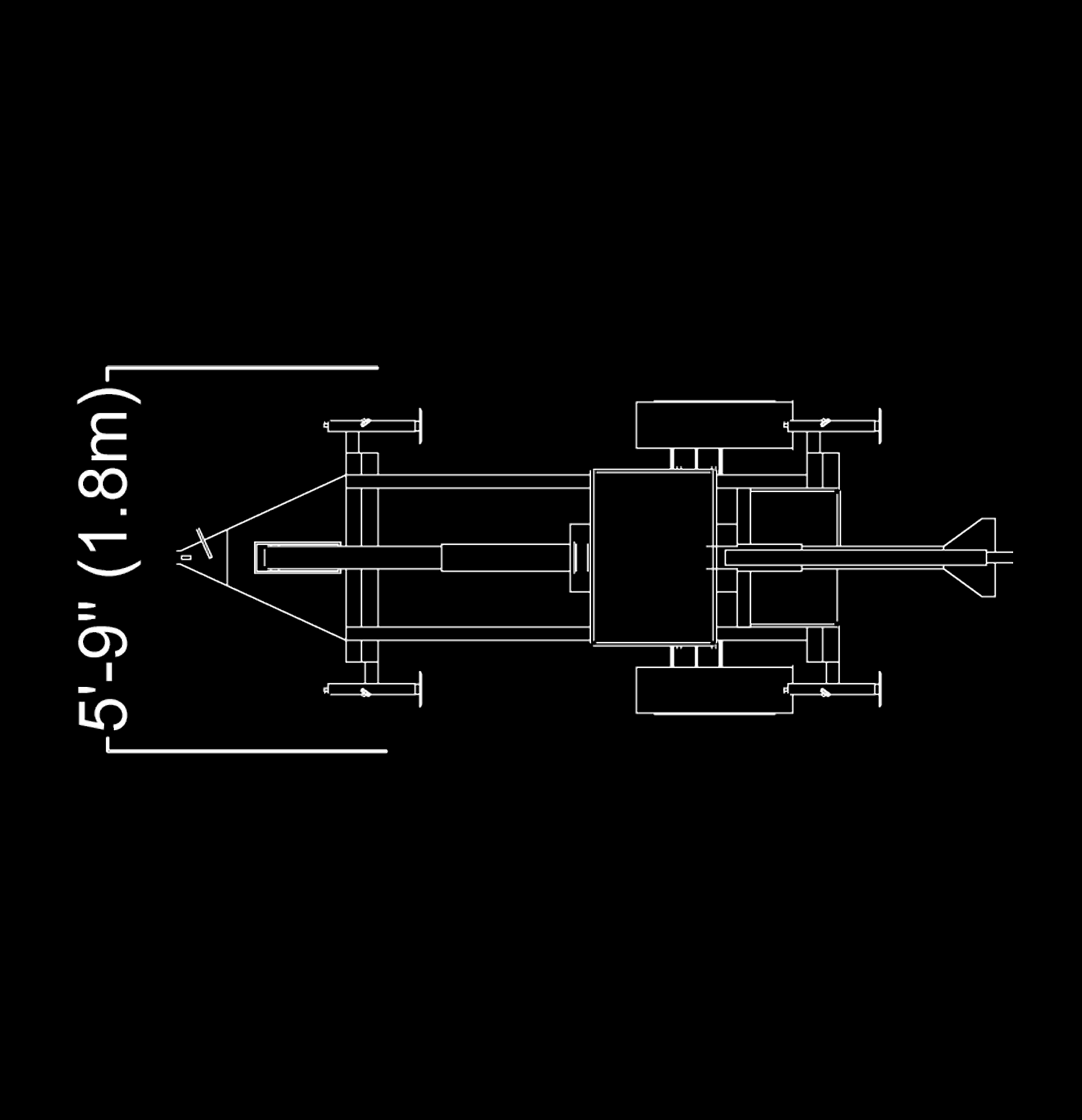

TOWING WIDTH	5'9" (1.8m)
OVERALL LENGTH	15'6" (4.7m)
MAX. ARM REACH OUT	9'-9.5' (3m)
MAX. ANCHOR POINT CAPACITY	310 lbs per Anchor
MAX. ALLOWABLE USERS	5

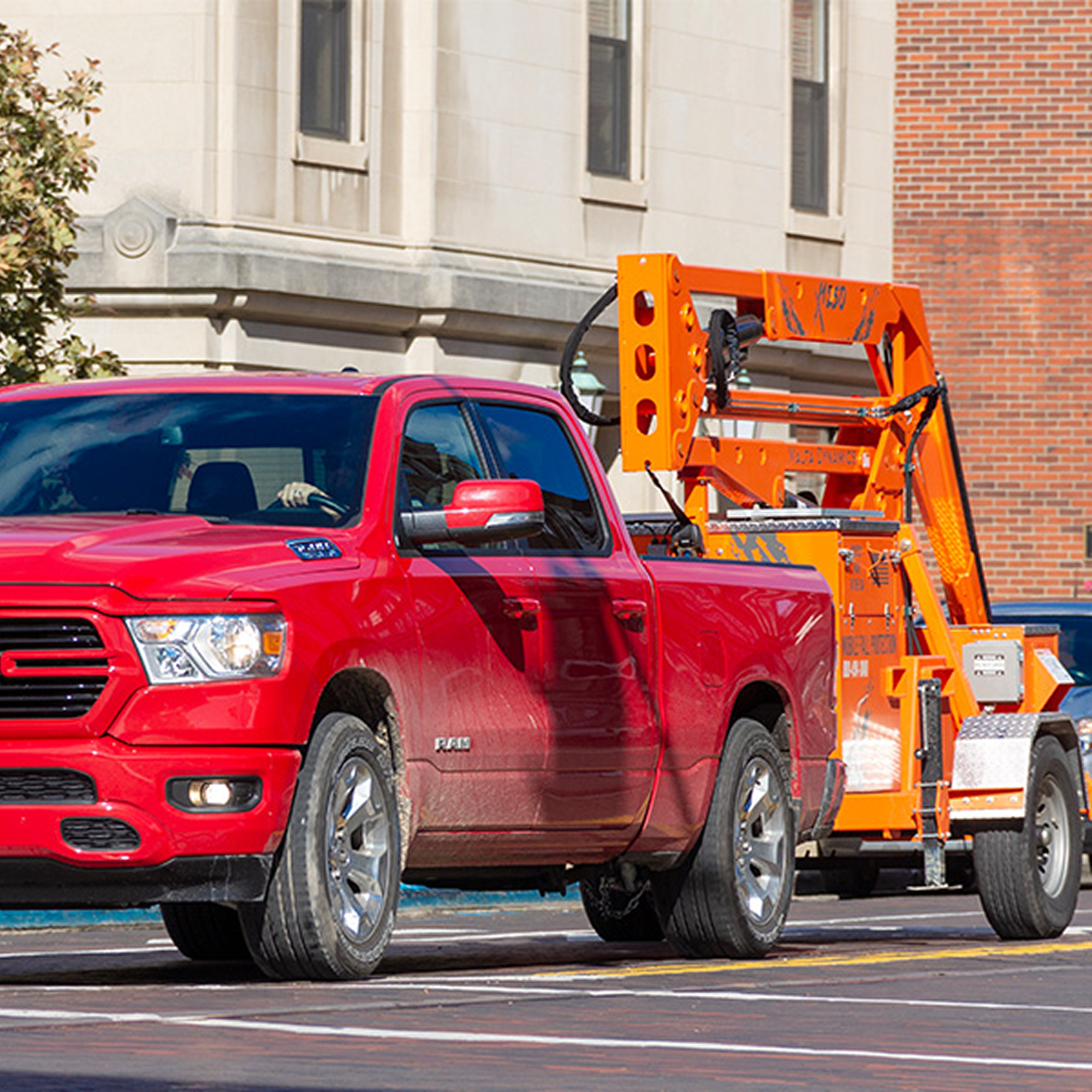

MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	7-Pole Blade
ACTUATING METHOD	Electric Powered Hydraulic System
CONTROLS	Remote (15' Cord length)
POWER SOURCE	12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
CHARGING SYSTEM	110 Volt Quick Smart Charger with Cord
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Built for any jobsite.

See how our XSERIES models provide overhead anchorage points, quick setup, and unparalleled portability on the job site. Our models support both fall arrest and fall restraint across various terrain systems and applications.

Blueprints & More.

Quick Deployment, Anywhere.

The X1260 is built for fast deployment on any roof surface, work area, or remote job site. Its battery-powered system and manual outrigger jacks allow users to position the unit, secure the portable base, and tie off quickly using the integrated anchor points. With no need for lifts or large equipment, the X1260 helps your team stay productive and protected, without the setup delay.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit
