X250

Name: X250
Brand: Malta Dynamics
Availability: InStock

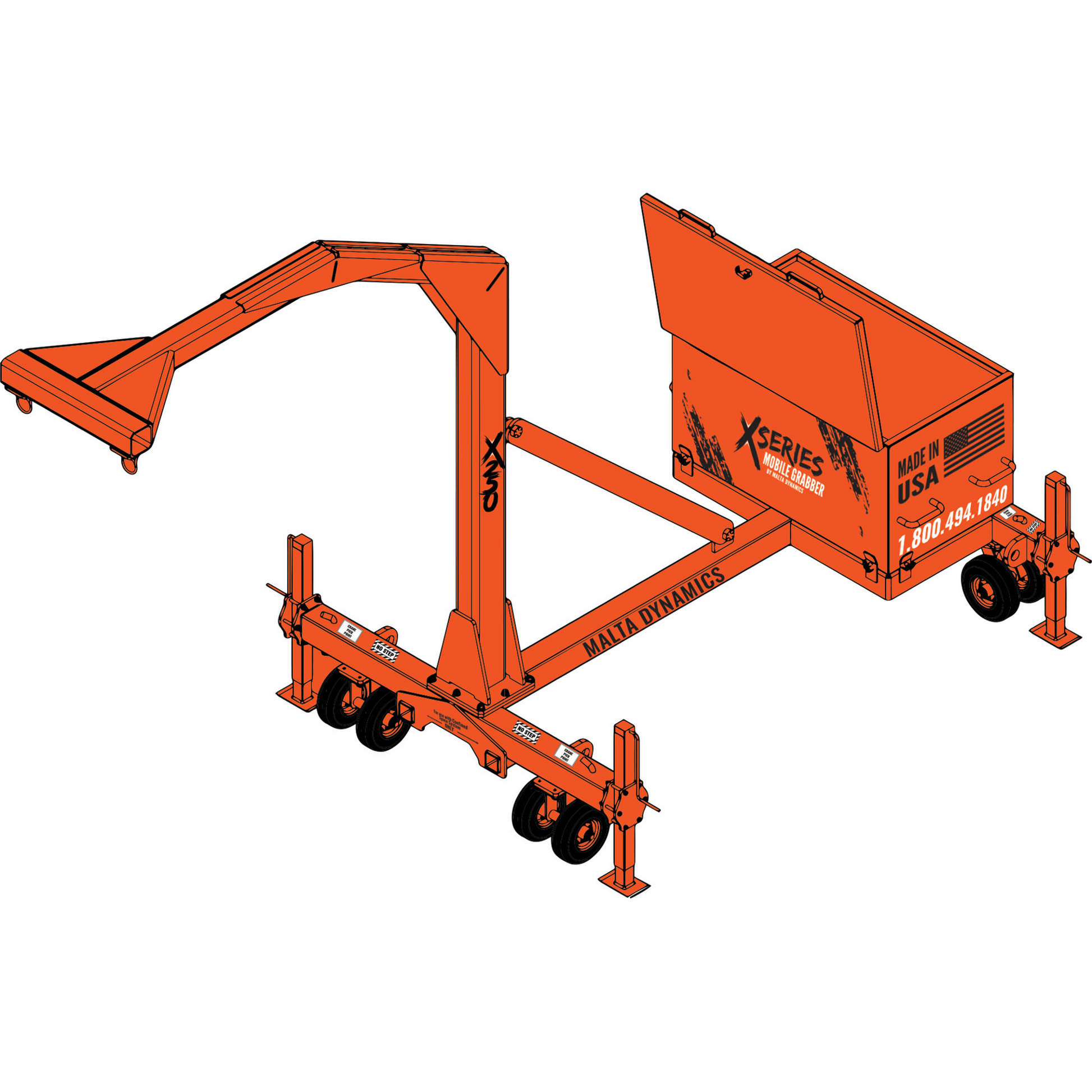

The X250 is a free-standing, 2-user mobile fall protection system used on flat roofs, and over trenches.

More Information

The X250's anchor design ensures fall protection even when working near edges, with additional capabilities for confined space rescue and retrieval.

When used on a flat roof, it allows users to tie off directly overhead, significantly reducing swing fall and free fall distances, while also preventing lifeline cables from making contact with sharp edges. This enhances both safety and efficiency during use.

The X250 is equally effective for confined space rescue and retrieval, particularly when mounted over a trench box and paired with our R1000 rescue/retrieval kits (available in one or two-kit configurations).

Manufactured in an ISO-9001 certified facility in the USA, the X250 undergoes rigorous testing to meet and exceed OSHA anchorage standards, ensuring durability and reliability in challenging environments.

At Malta Dynamics, we pride ourselves on creating field-tested, field-approved products. The X250, like all our systems, is engineered to provide safe, simple, and user-friendly experiences. We understand the demands of the job site and deliver high-quality safety solutions that perform every time.

Resources

XSERIES Brochure

Spec Sheet

Inspection Form

Declaration of Conformity

Instruction Manual

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	2320 lbs

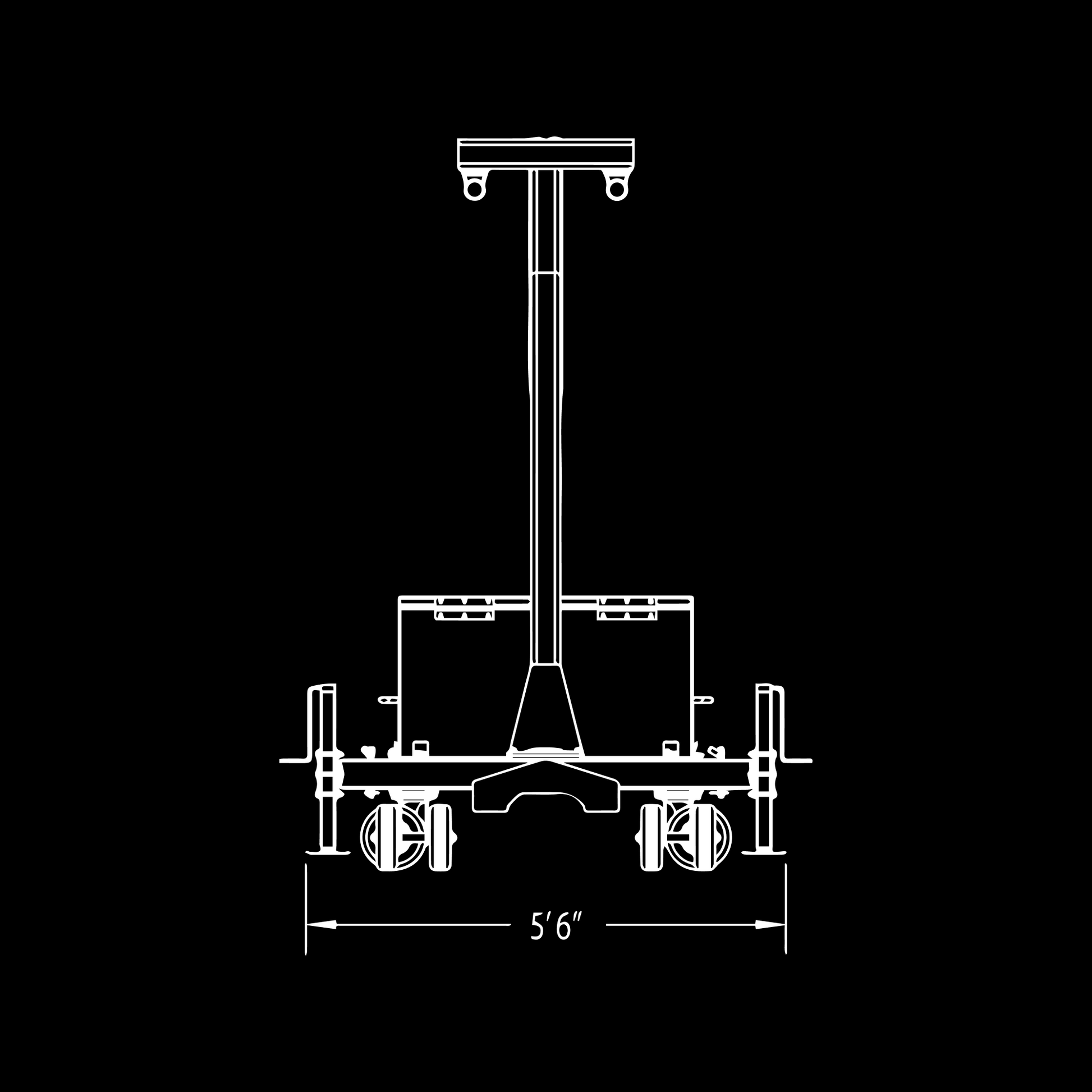

FRAME WIDTH	5'6"

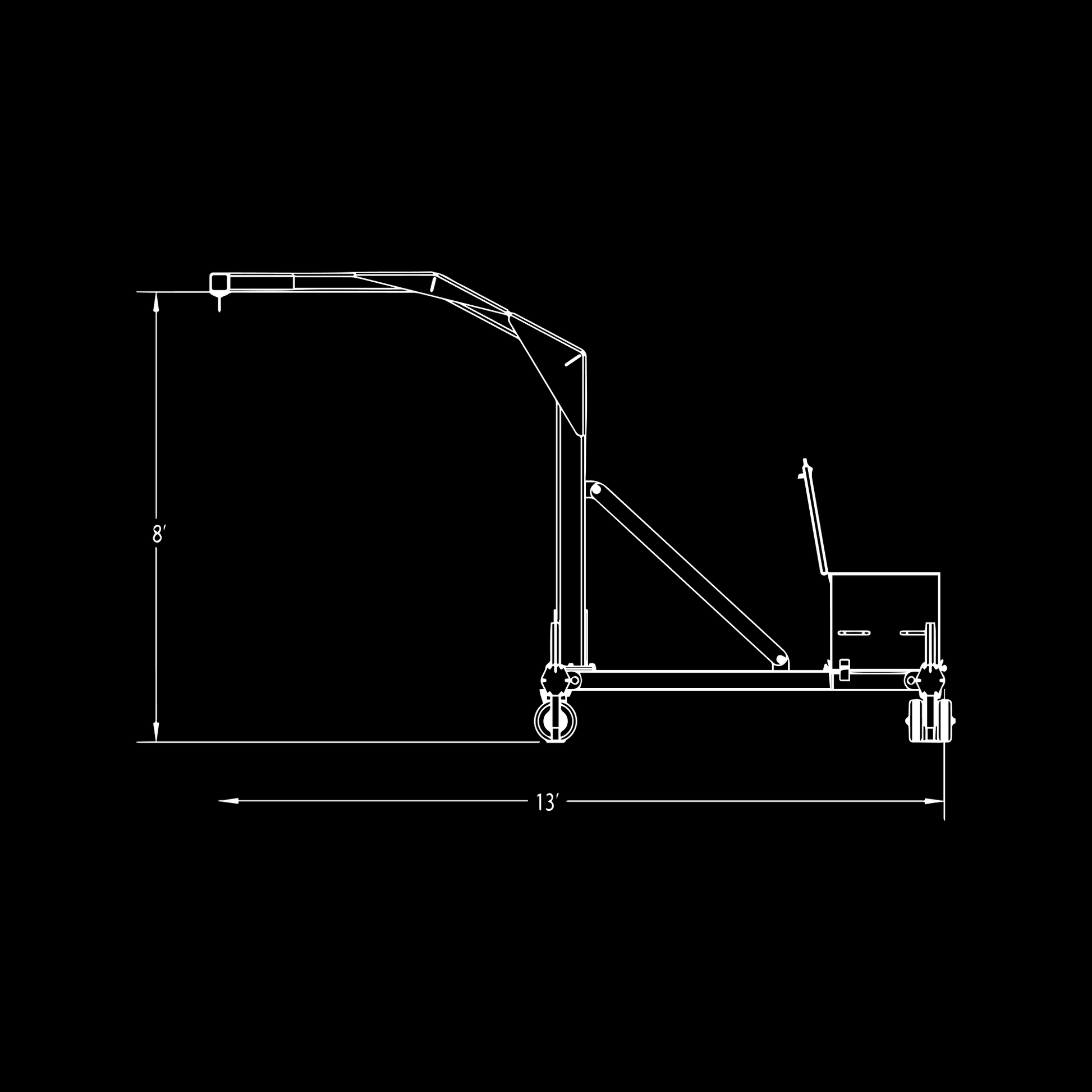

LENGTH	13'
REACH	6'3"
MAX ANCHOR POINT CAPACITY	310 lbs
MAX USERS	2
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Engineered for Every Work Area.

Discover how XSERIES portable fall protection systems provide dependable overhead anchorage with quick deployment and maximum portability. Each model incorporates advanced safety features to support both fall restraint and fall arrest systems, designed to perform across diverse terrains and specific applications.

Blueprints & More.

Overhead Edge Protection, Compact Footprint.

The X250 Mobile Edge Grabber is a free-standing, two-user fall protection system built for flat roofs, bridge decks, and trench work. Its counterweighted design lets your crew tie off directly overhead at the edge, cutting swing fall and free-fall distances while eliminating sharp-edge contact with lifelines.

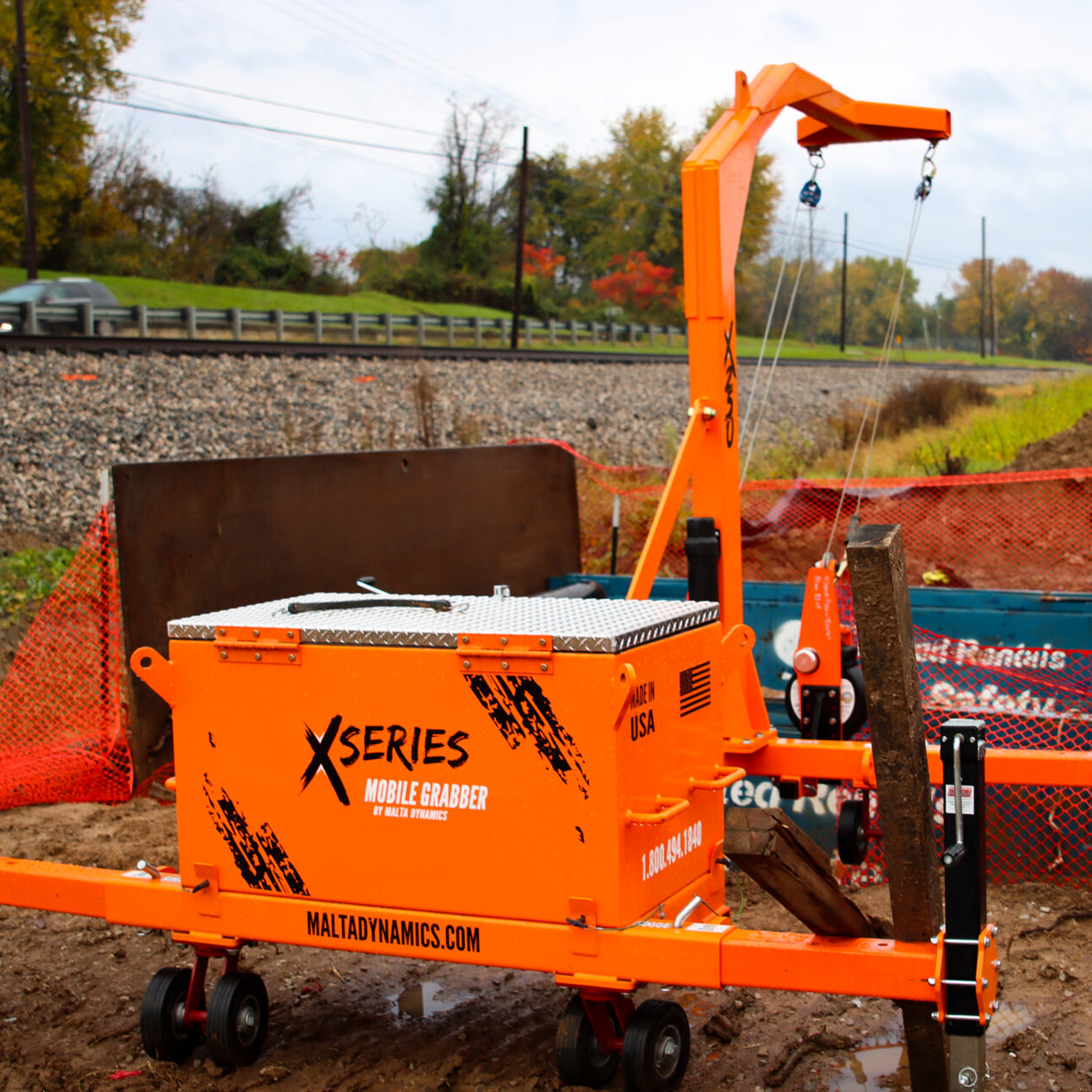

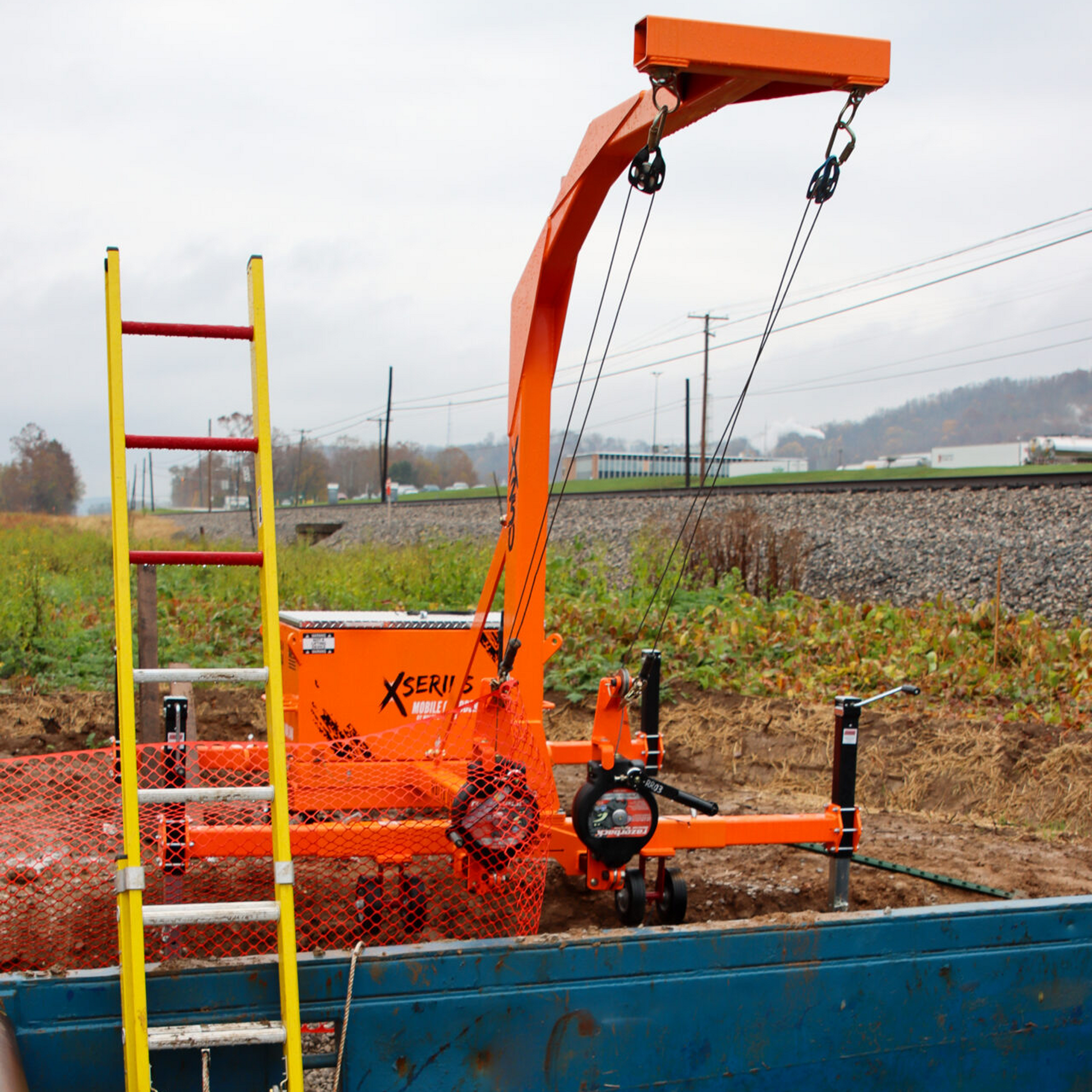

When paired with rescue/retrieval kits, the X250 also serves as a confined space solution over trench boxes and vaults, delivering OSHA-compliant, field-tested protection in a compact, easy-to-position unit.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

We don’t just manufacture fall protection equipment – we use it every day. At Malta Dynamics, our team originates from the field, and every mobile fall protection solution we engineer reflects that hands-on experience with worker safety at height.

The X250 is part of our trusted XSERIES lineup: mobile, overhead anchorage systems built to keep crews tied off where it matters most – right at the edge. Why professionals rely on Malta Dynamics:
