X1270

Name: X1270
Brand: Malta Dynamics
Availability: InStock

The XSERIES X1270 is a road-towable mobile fall protection system for two users, offering adjustable anchor heights from 20 to 45 feet. With quick setup and a battery-powered system, it provides reliable fall protection on dynamic job sites.

More Information

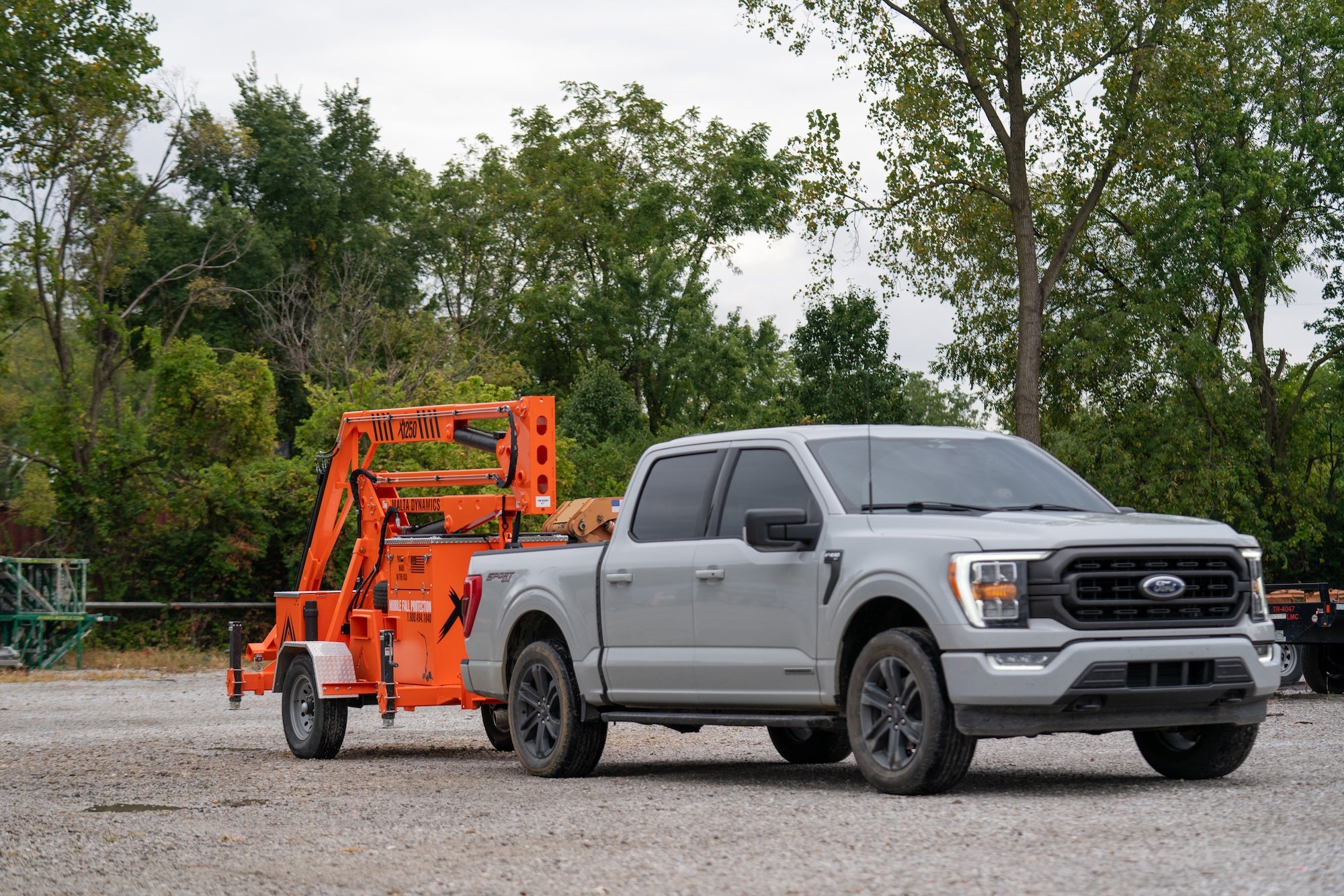

The XSERIES X1270 is a versatile mobile fall protection system designed for two users, providing adjustable overhead anchor points up to 45 feet. Its road-towable design makes it an ideal solution for dynamic job sites, delivering flexible and efficient fall arrest or restraint coverage wherever you need it.

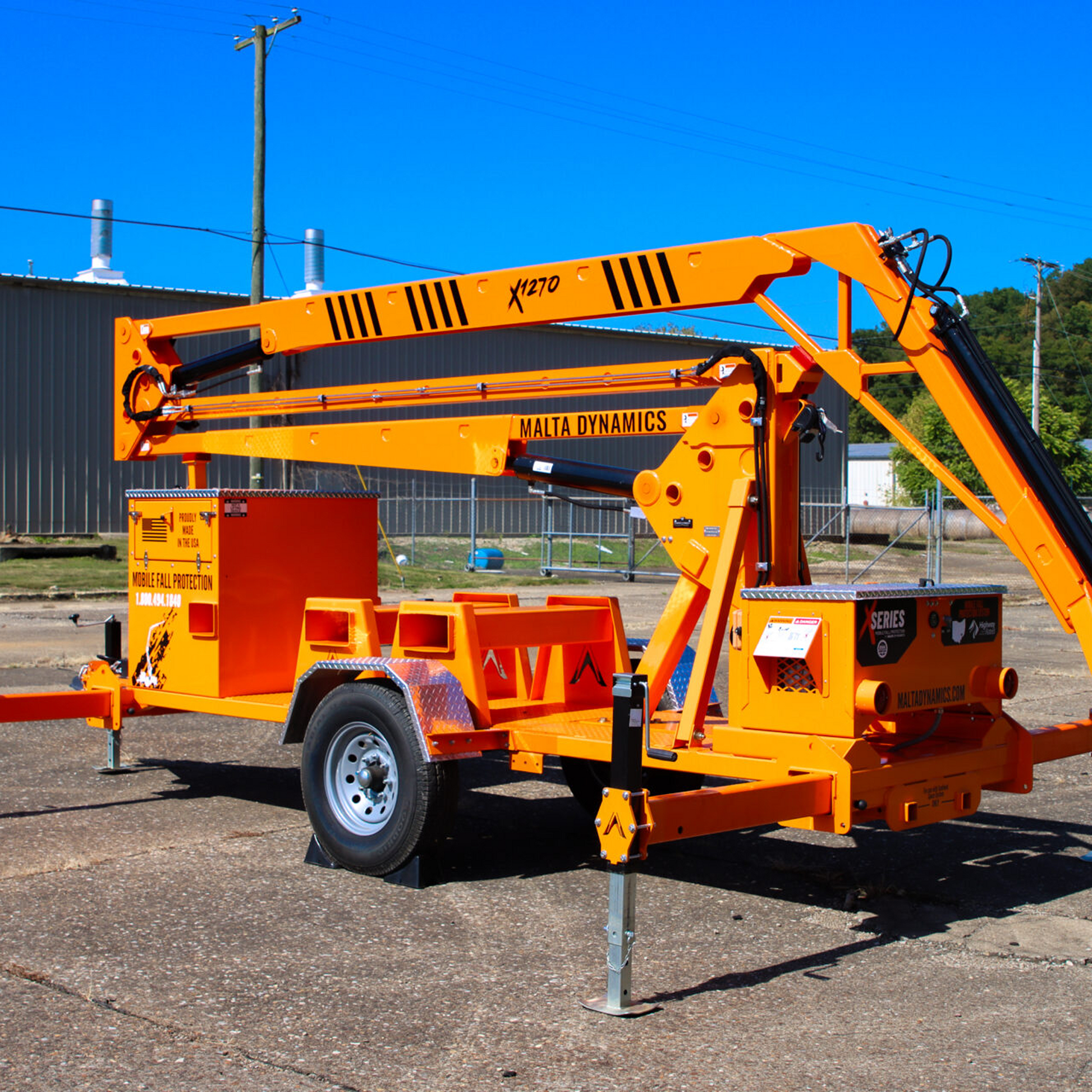

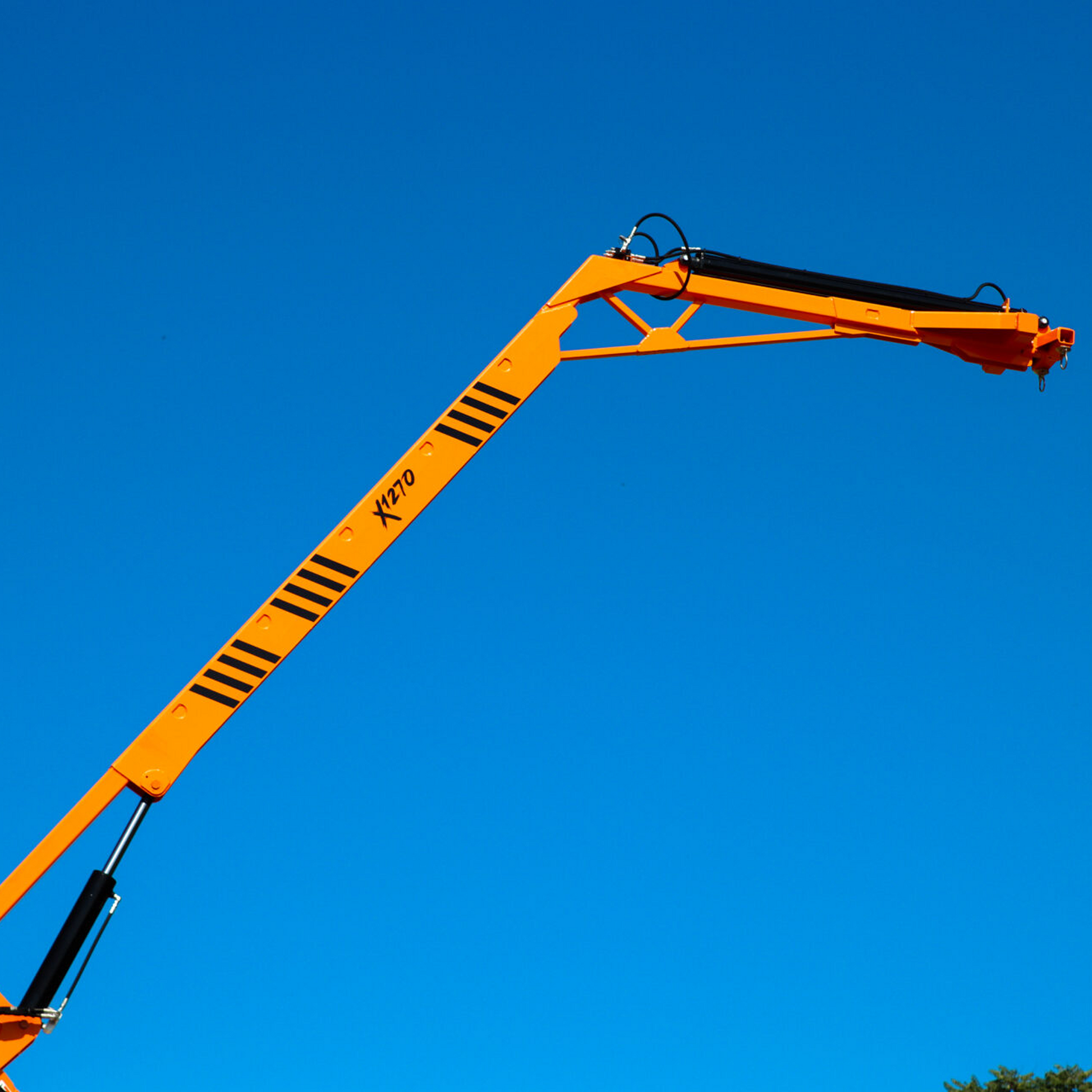

Featuring a folding steel mast with synchronized hydraulic controls, the X1270 allows for safe use at heights between 20 feet and 45 feet. Powered by a battery, the system can be set up quickly using manual outriggers, providing easy tie-off options and reliable protection for your team.

Manufactured in an ISO 9001-certified facility in the USA, the X1270 meets and exceeds OSHA standards for fall protection systems. Optional add-ons such as flat-free tires, counterweight bases, and fork pockets allow you to customize the system to fit your specific job site requirements.

The compact design of the X1270 ensures rapid deployment on any roof, work area, or remote job site. The battery-powered system and manual outriggers allow your team to quickly position the unit, secure the base, and tie off without the need for heavy lifting equipment. This mobile fall protection system keeps your crew productive and safe with minimal setup time.

Whether you're working on rooftops, construction zones, or industrial sites, the XSERIES X1270 provides reliable, flexible, and OSHA-compliant fall protection—without the delays or complexity of traditional systems.

Resources

XSERIES Brochure

Spec Sheet

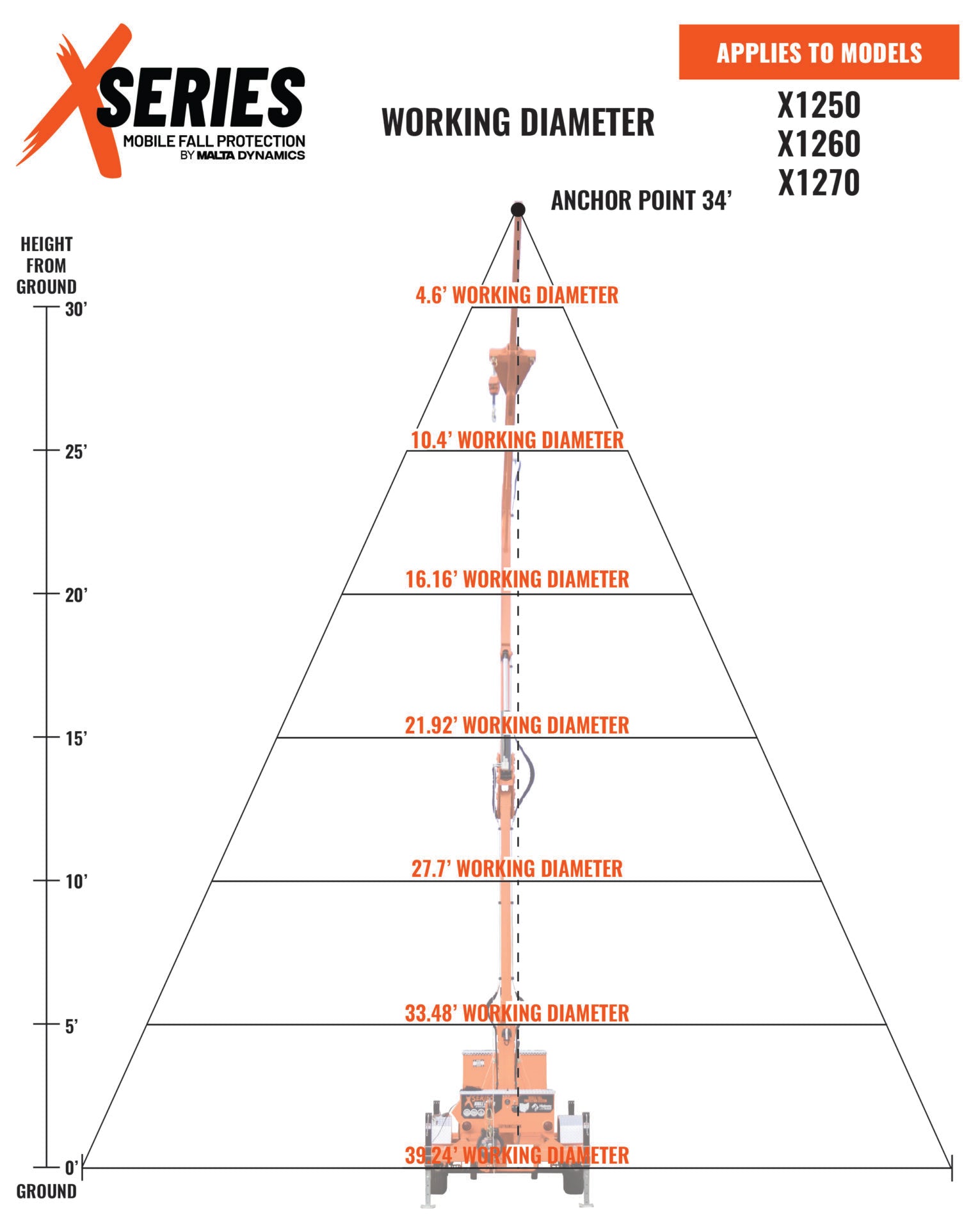

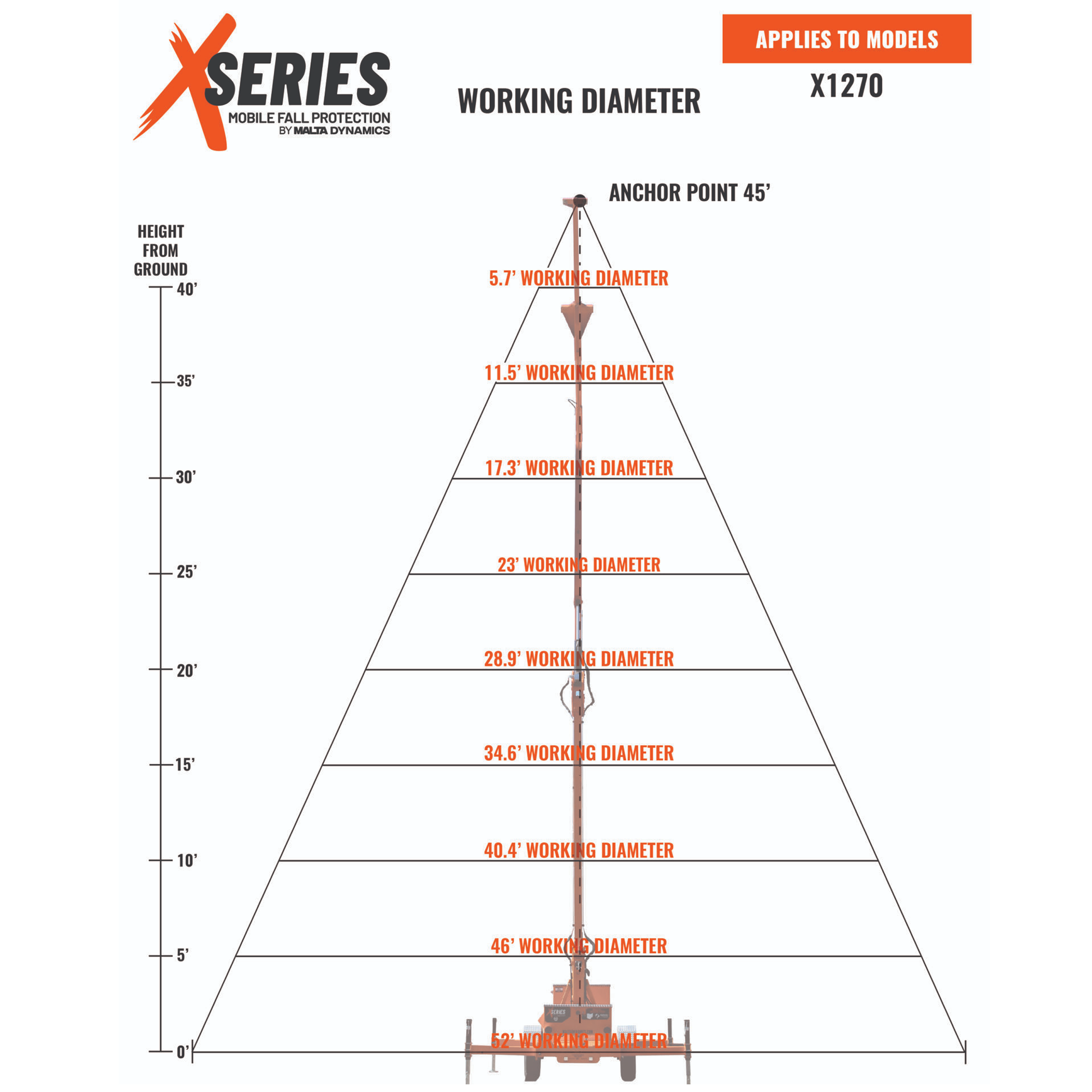

Working Diameter Charts

Inspection Form

Instruction Manual

Maintenance Manual

Declaration of Conformity

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	6700 lbs
MAX. WORKING HEIGHT	45' (13.7m)
MIN. WORKING HEIGHT	2' (.6m)
MAX. FOLDED HEIGHT	8'3" (2.5m)
TOWING WIDTH	5'9" (1.8m)
WORKING WIDTH	10'9" (3.3m)
OVERALL LENGTH	20'10" (6.4m)
MAX. ARM REACH OUT	10'4" (3.1m)
MAX. ANCHOR POINT CAPACITY	310 lbs
MAX. ALLOWABLE USERS	2
MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	7-Pole Blade
ACTUATING METHOD	Electric Powered Hydraulic System
CONTROLS	Remote (15' Cord length)
POWER SOURCE	12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
CHARGING SYSTEM	110 Volt Quick Smart Charger with Cord
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Built for any jobsite.

Explore how XSERIES units deliver reliable overhead fall protection with fast deployment and unparalleled portability. Each model comes equipped with safety features to support both fall restraint and arrest, built to perform across various terrains and applications.

Blueprints & More.

Fast Setup, Maximum Reach.

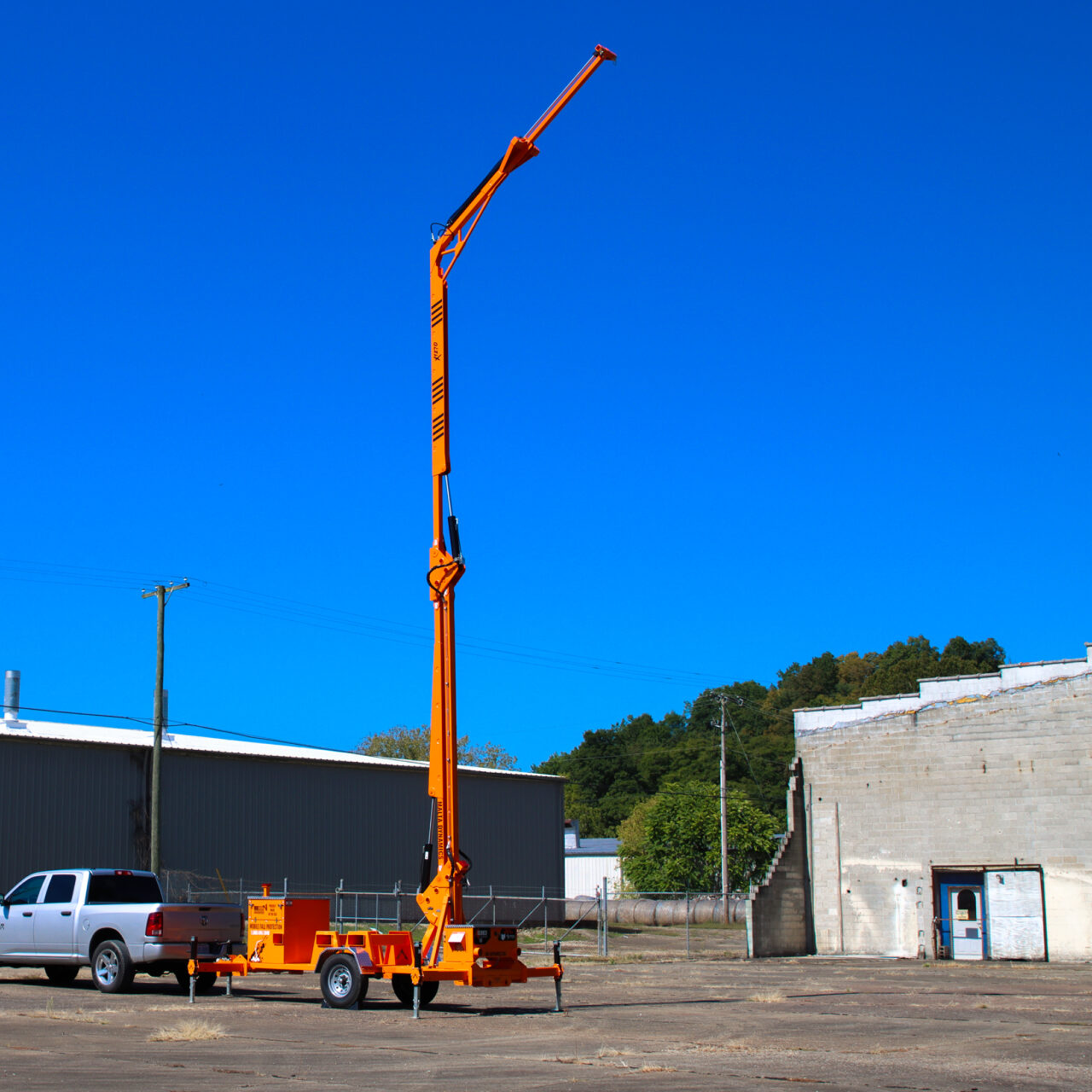

The X1270's compact design is built for rapid setup on any roof, work area, or remote job site. Its battery-powered system and manual outrigger jacks let your team position the unit, secure the base, and tie off fast using adjustable anchorage points. No need for lifts or extra equipment, just reliable, mobile fall protection that keeps your crew moving.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

We don’t just design fall protection equipment– we use them. At Malta Dynamics, our team comes from the field, and every solution we build reflects that experience.

The X1270 Mobile Grabber is part of our trusted XSERIES lineup: high-performance, portable, and ready for the demands of real-world job sites. From anchor points to restraint systems, every detail is built for safety, compliance, and ease of use.
