The XSERIES X1250 Mobile Grabber is a versatile, towable mobile fall protection system designed to deliver dependable overhead anchor points for up to three workers at height. Engineered to meet the demands of challenging jobsite conditions, the X1250 offers a safe, portable solution for overhead fall protection across multiple industries.

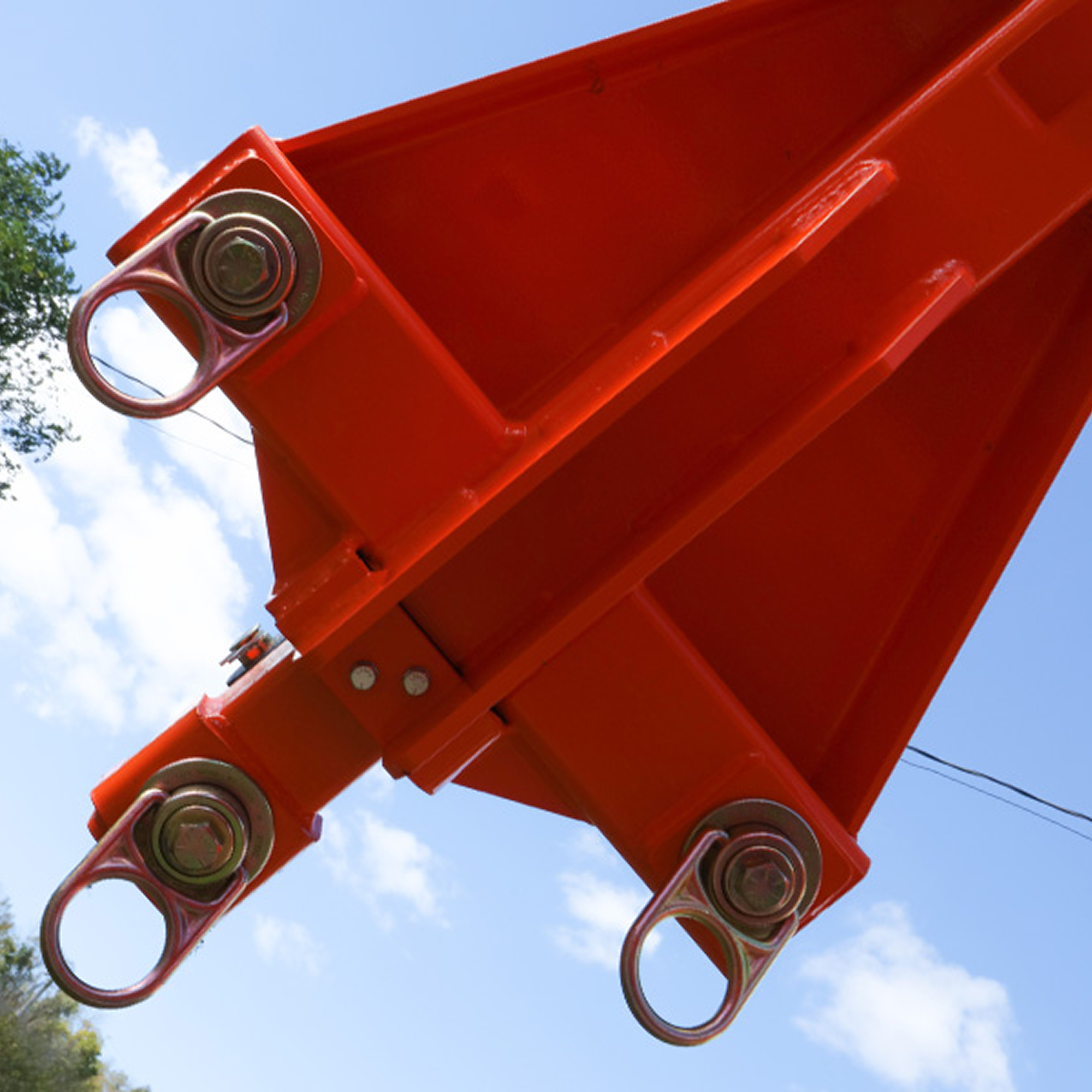

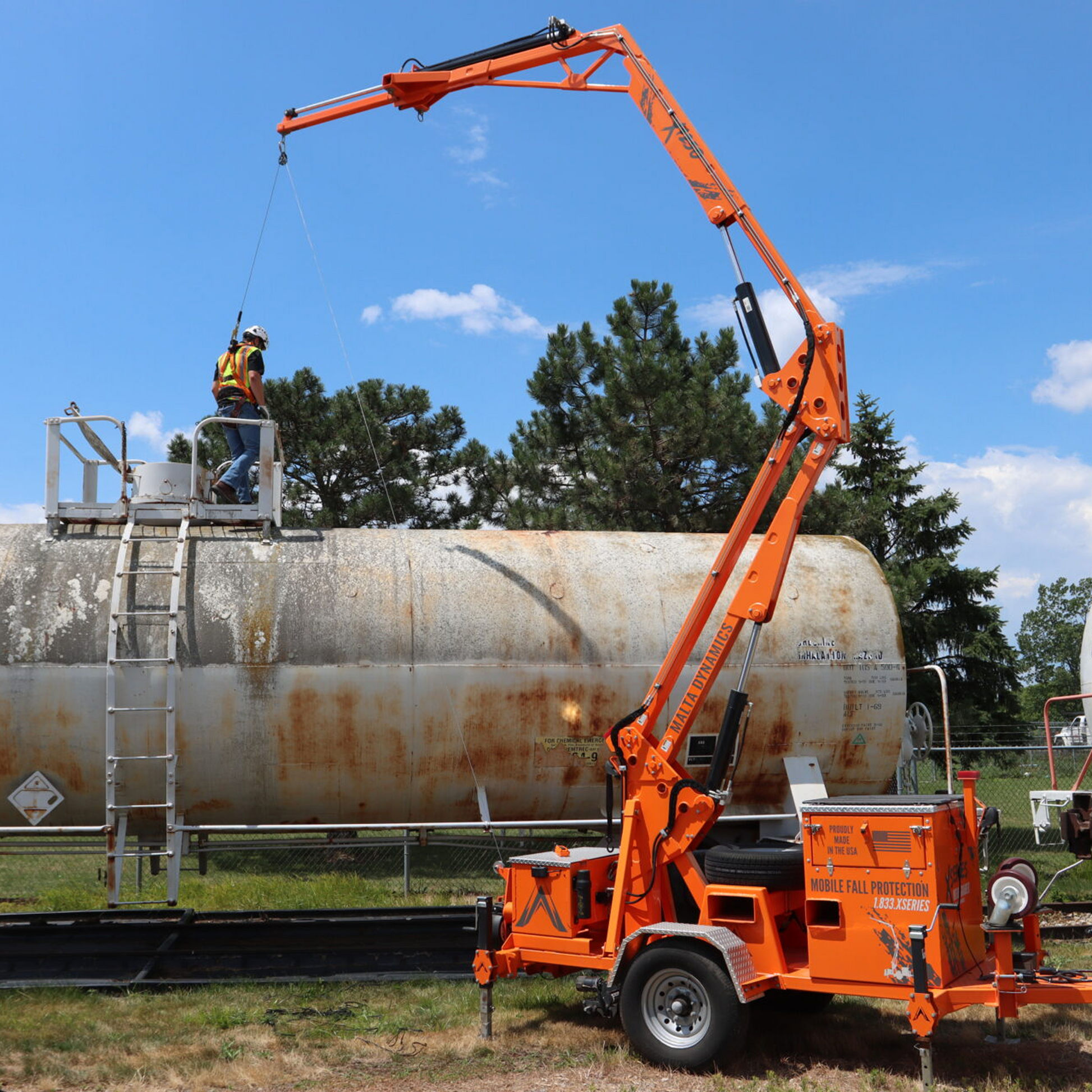

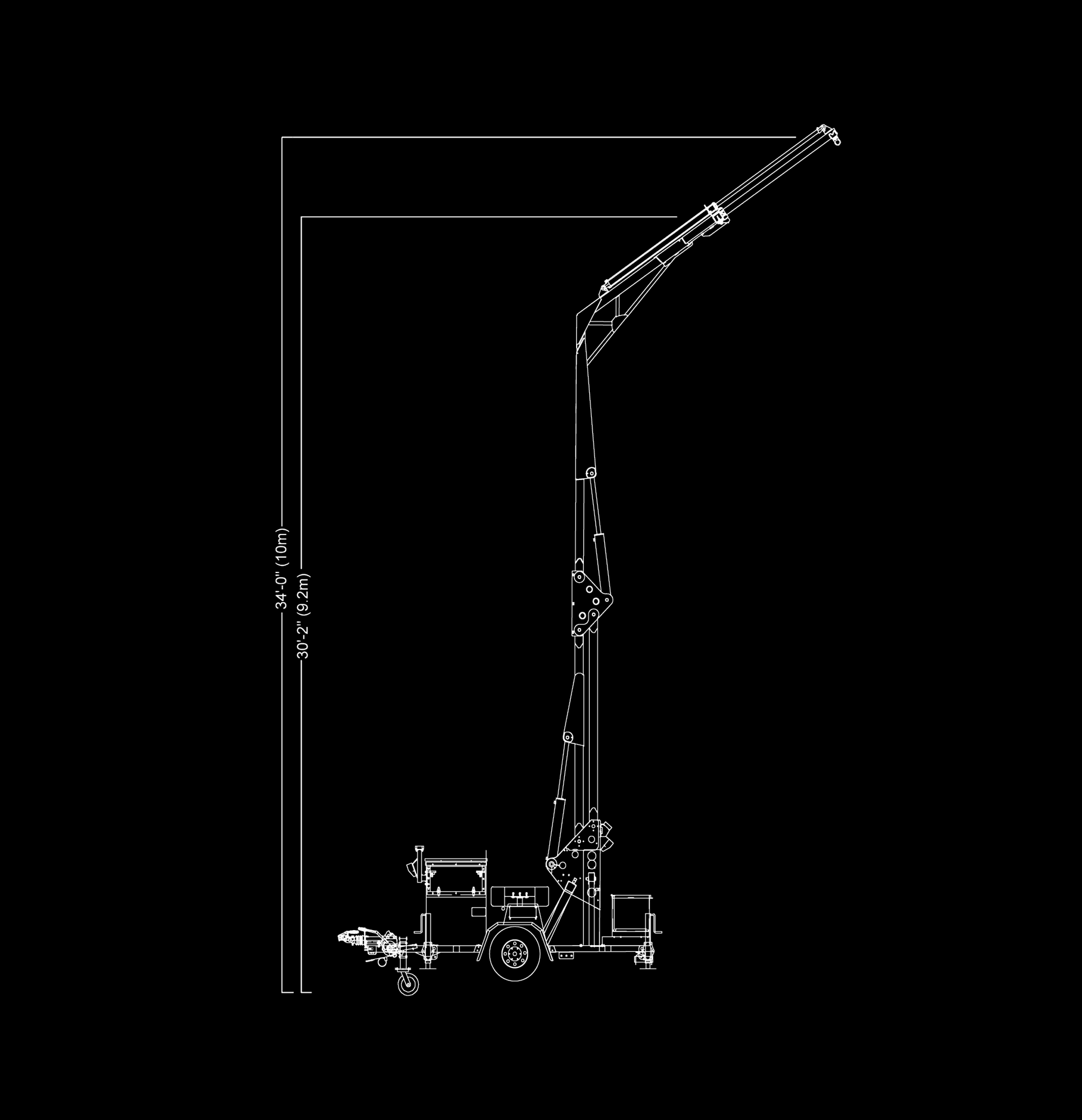

With an adjustable height mast extending up to 34 feet, the X1250 provides a high-reach anchor point for one worker. While the system features three total anchor points, only one can be used when the mast is fully extended to 34 feet, while the remaining two are intended for lower-height applications. Each anchor point supports a fall arrest capacity of 310 lbs., ensuring reliable, OSHA-compliant protection.
Manufactured in the USA at an ISO 9001-certified facility, the X1250 exceeds OSHA requirements for mobile fall protection systems. As with all Malta Dynamics products, the X1250 is field-tested and field-approved, providing a trusted solution for a wide range of job sites, including temporary work zones, construction sites, and plant maintenance areas.

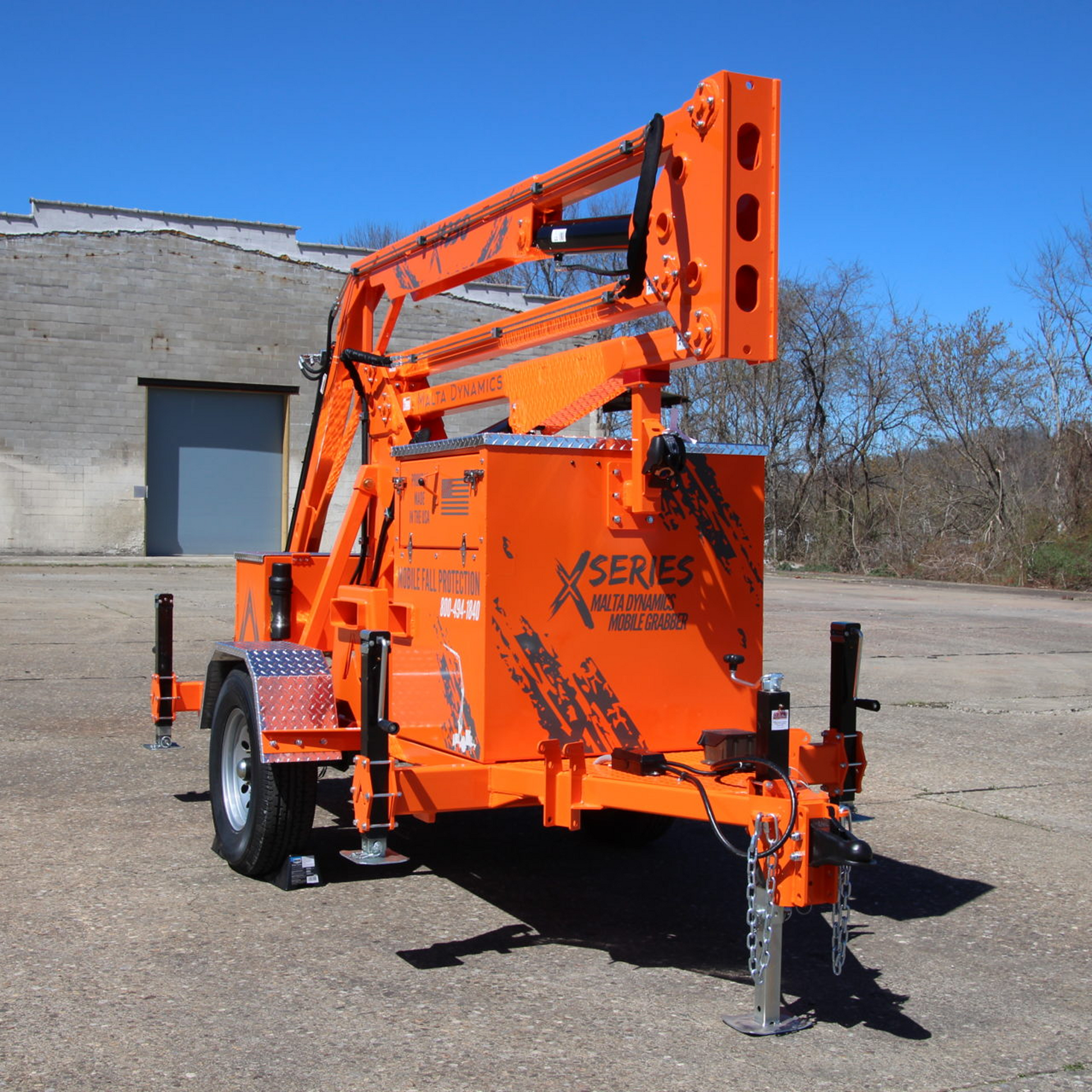

The X1250’s compact and durable design makes it easy to deploy across rooftops, ground-level projects, or remote job sites. The adjustable mast and overhead horizontal lifeline eliminate the need for lifts or permanent tie-off points. To set up, simply secure the outriggers, position the unit, and tie off. The X1250 is engineered for simplicity, strength, and compliance, ensuring your crew stays safe and productive.
Resources
Resources
Product Specs.
| SPECIFICATION | DETAIL |
|---|---|
|
WEIGHT
|
5900 lbs
|
|
MAX. WORKING HEIGHT
|
30' (9.1m)
|
|
MIN. WORKING HEIGHT
|
2' (.6m)
|
|

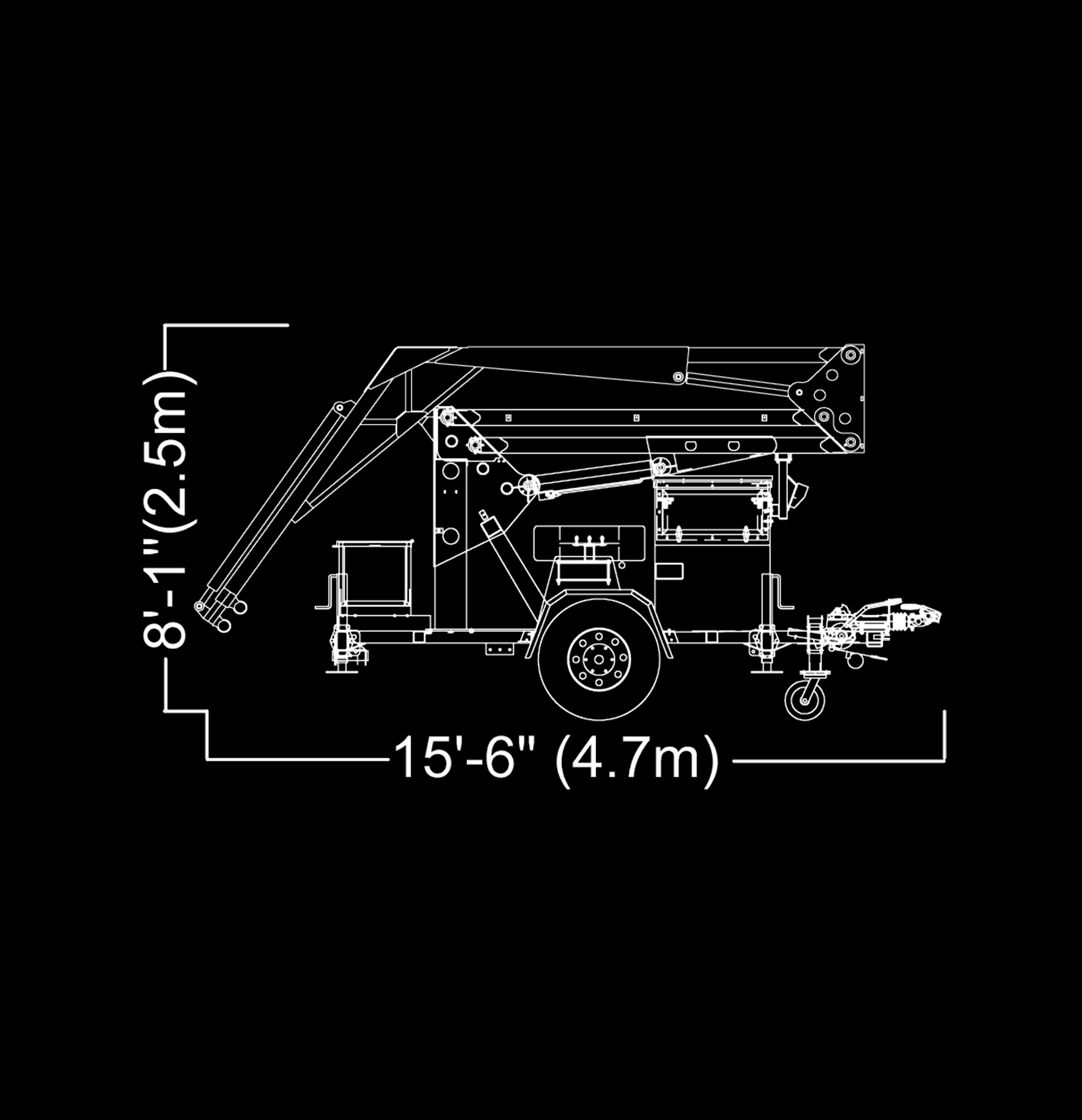

MAX. FOLDED HEIGHT
|
8'1" (2.6m)
|
|

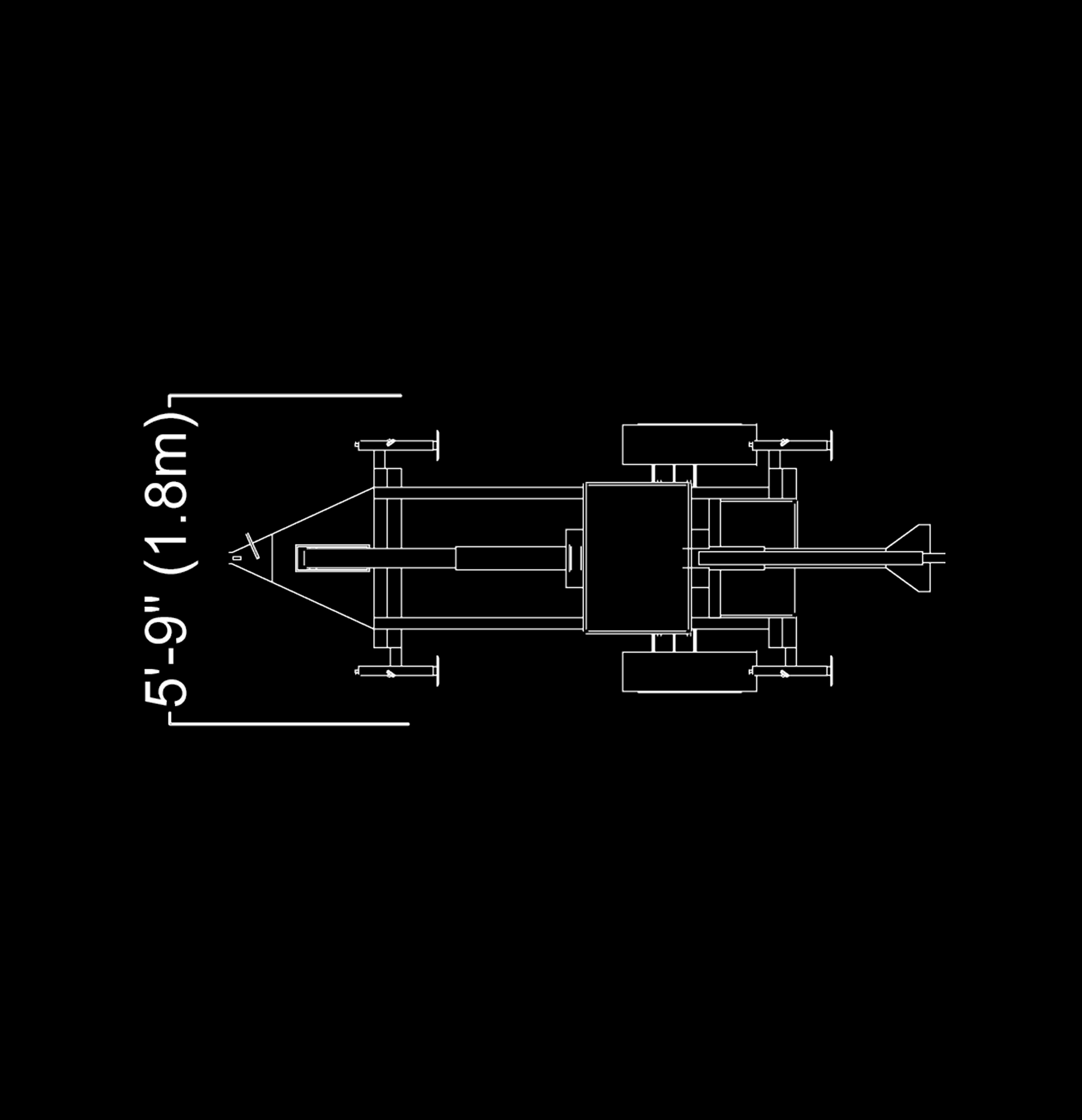

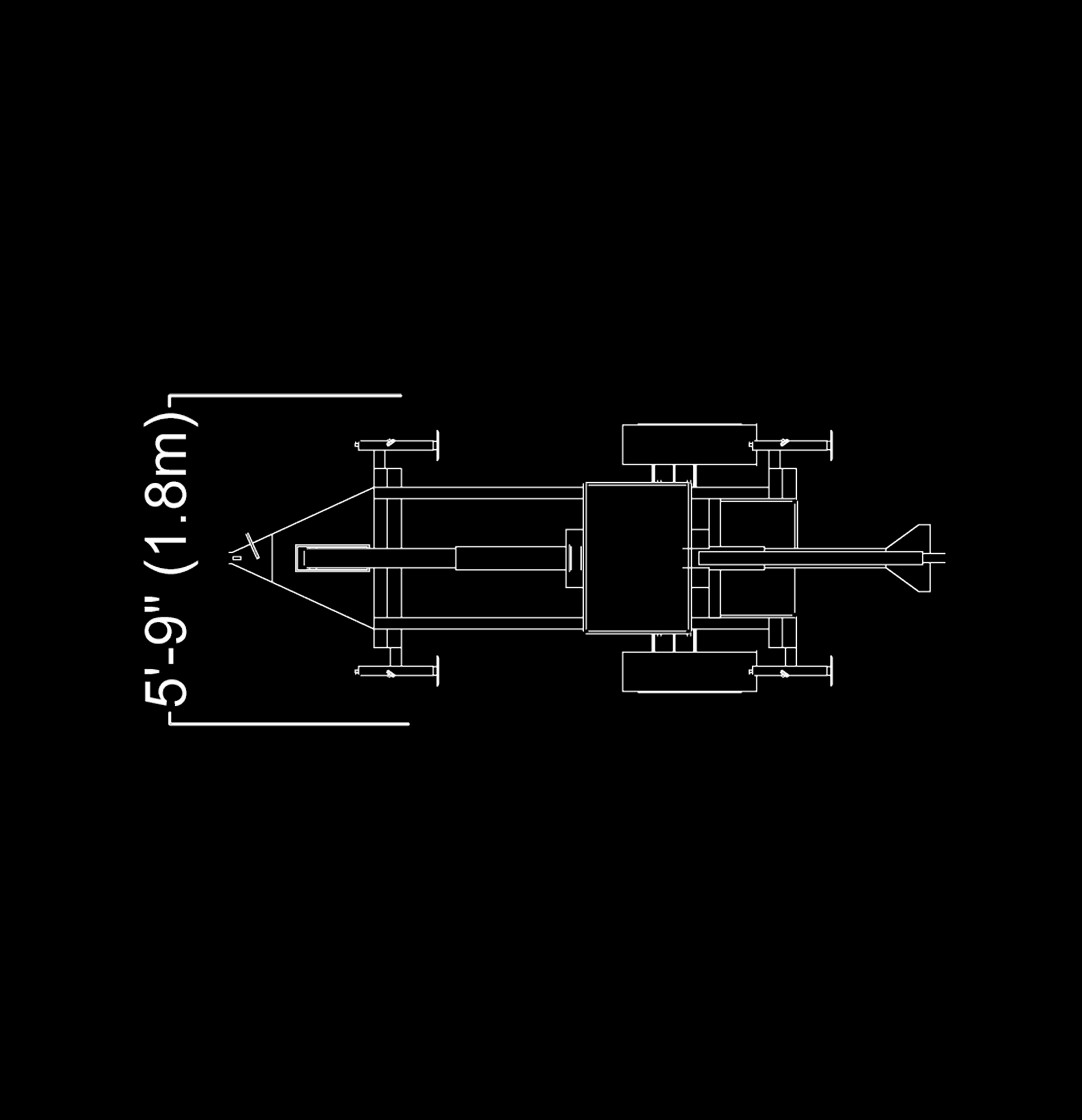

TOWING WIDTH
|
5'9" (1.8m)
|
|
OVERALL LENGTH
|
15'6" (4.7m)
|
|
MAX. ARM REACH OUT
|
4'-5.5' (1.4m)
|
|
MAX. ANCHOR POINT CAPACITY
|
310 lbs
|
|
MAX. ALLOWABLE USERS
|
2
|
|

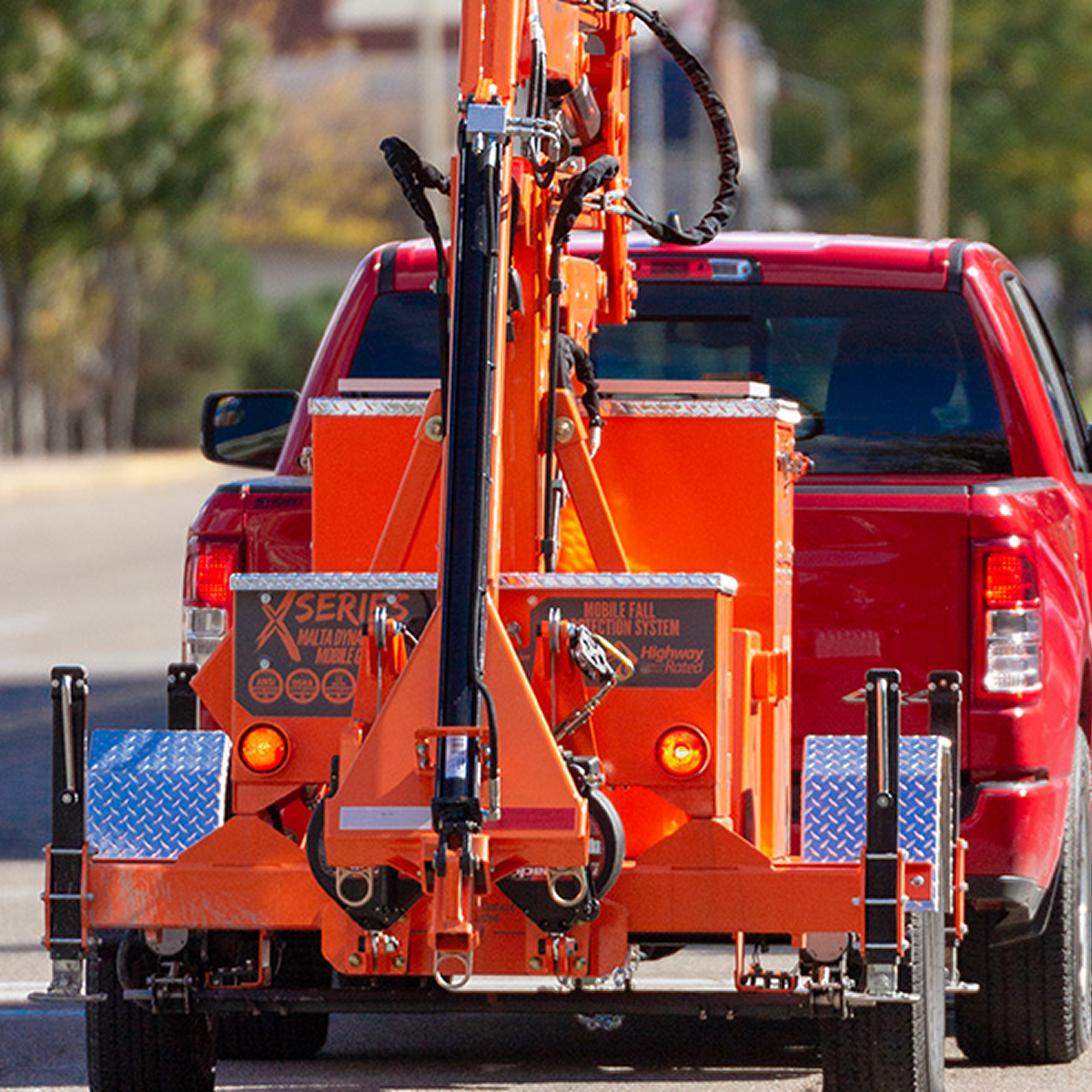

MAX. TOWING SPEED
|
Posted Highway Speed
|
|
TRAILER PLUG WIRING
|
7-Pole Blade
|
|
ACTUATING METHOD
|
Electric Powered Hydraulic System
|
|
CONTROLS
|
Remote (15' Cord length)
|
|
POWER SOURCE
|
12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
|
|
CHARGING SYSTEM
|
110 Volt Quick Smart Charger with Cord
|
|
OUTRIGGER SYSTEM
|
4 Manually Adjustable Jacks
|
|
WARRANTY
|
1yr + 5yr Structural
|
