X1000

Name: X1000
Brand: Malta Dynamics
Availability: InStock

The XSERIES X1000 is a road-towable mobile fall protection system for two workers, offering overhead anchorage from 17 to 22 feet. With a manual hydraulic system, it provides cost-effective, OSHA-compliant protection on dynamic job sites.

More Information

The XSERIES X1000 is a road-towable mobile fall protection system, engineered for two workers, providing overhead anchor points from 17 to 22 feet in height. Designed for fast deployment and portability, this compact system ensures reliable fall arrest and fall restraint capabilities on job sites where permanent anchorage isn’t available.

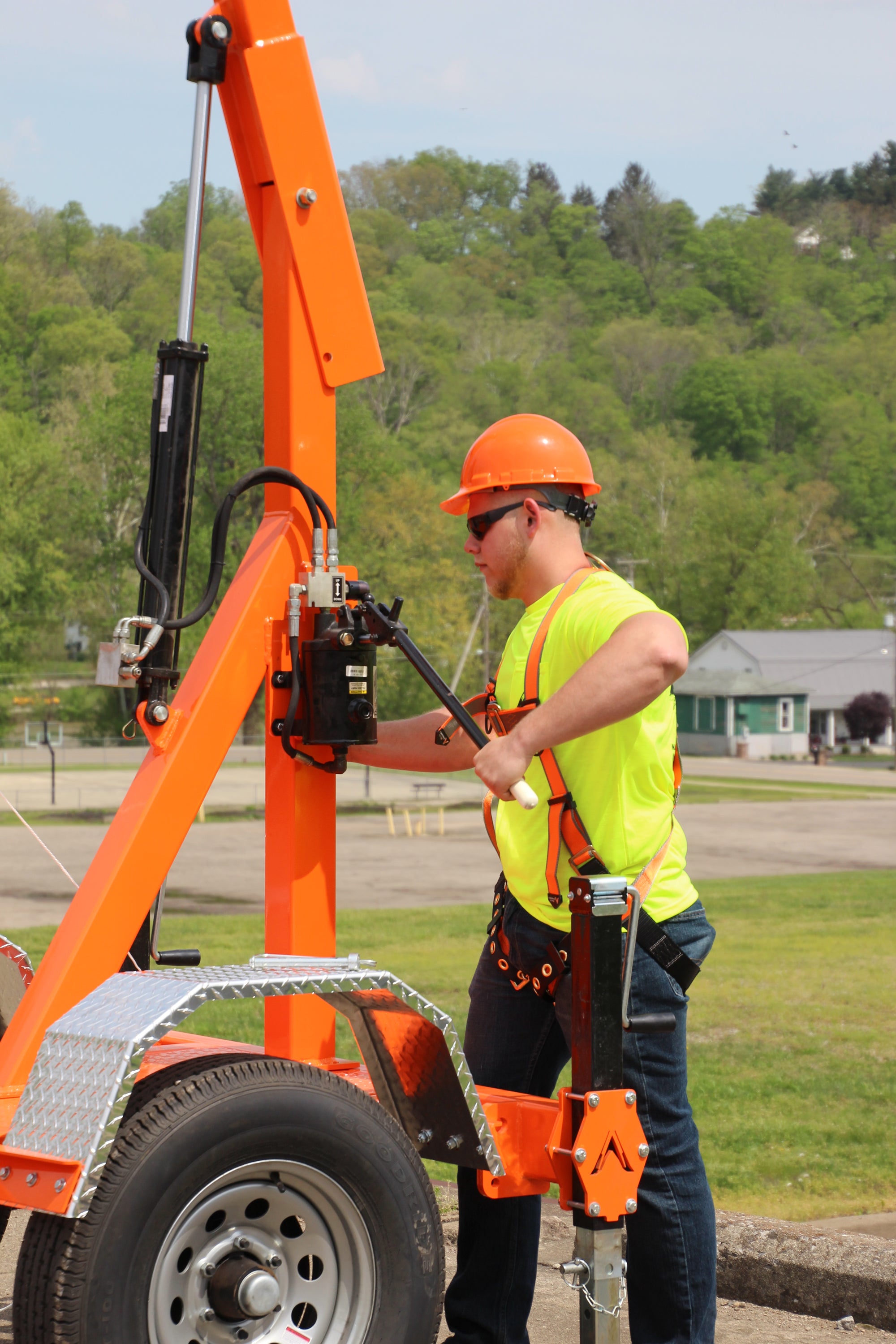

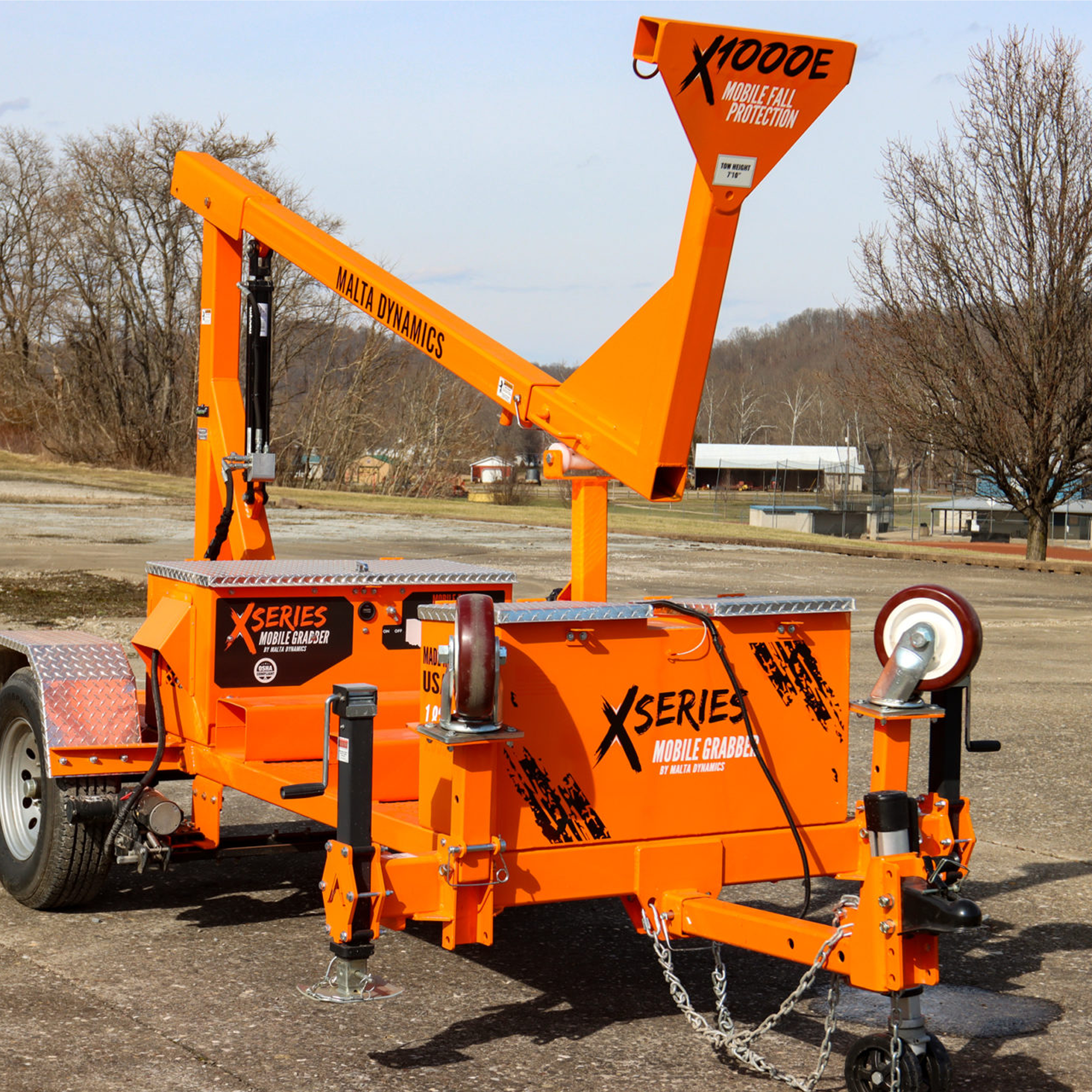

Operating with a manual hand-pump hydraulic system, the X1000 offers our most cost-effective mobile fall protection solution. Each anchor point supports up to 310 lbs., delivering OSHA-compliant overhead protection in environments where traditional anchorage is not an option. For those seeking enhanced convenience, the X1000E model features an electric-powered hydraulic system with remote control operation for effortless positioning.

Manufactured in an ISO-9001 certified facility in the USA, the X1000 is rigorously tested to meet and exceed OSHA fall protection standards. Its compact design allows for quick setup on roofs, work areas, or remote job sites, with adjustable outrigger jacks to position the unit and establish tie-off points efficiently. With dual overhead anchorage points, the XSERIES X1000 provides dependable fall protection without the need for extra lifting equipment, ensuring worker safety and operational efficiency.

Resources

XSERIES Brochure

X1000 Spec Sheet

Inspection Form

Working Diameter Charts

Declaration of Conformity

Declaration of Conformity (v2)

X1000 Instruction Manual

X1000-EN Instruction Manual

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	2200 lbs
MAX. WORKING HEIGHT	22' (6.7m)
MIN. WORKING HEIGHT	17' (5.18m)
MAX. FOLDED HEIGHT	7'10" (2.38m)
TOWING WIDTH	5'8" (1.73m)
OVERALL LENGTH	12'9" (3.89m)
MAX. ARM REACH OUT	3' (.91m)
MAX. ANCHOR POINT CAPACITY	310 lbs per Anchor
MAX. ALLOWABLE USERS	2
MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	4-Pole Blade
ACTUATING METHOD	Manual Operating System
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Engineered for Every Work Area.

Discover how XSERIES systems provide dependable overhead fall protection with quick deployment and maximum portability. Each model incorporates safety features to support both fall restraint and fall arrest systems, designed to perform across diverse terrains and applications.

Blueprints & More.

Rapid Setup, Maximum Coverage.

The X1000's compact design enables quick setup on any roof, work area, or remote jobsite. Its manual hydraulic system and adjustable outrigger jacks allow your team to position the unit, stabilize the base, and establish tie-off points efficiently using the dual overhead anchorage points. The XSERIES delivers dependable mobile fall protection without the need for extra lifting equipment, keeping your crew safe and productive.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

At Malta Dynamics, we don’t just build fall protection—we use it every day. Our team comes from the field, and every mobile solution we engineer is shaped by real-world experience.

The X1000 Mobile Grabber represents our trusted XSERIES collection: high-performance, portable, and ready for the demands of real-world job sites. From anchor points to restraint systems, every component is engineered for safety, compliance, and operational efficiency.
