X360

Name: X360
Brand: Malta Dynamics
Availability: InStock

The X360 is a road-towable mobile fall protection anchor system, designed for two workers. With a 360-degree rotating mast and hydraulic operation, it provides overhead anchorage up to 34 feet 6 inches.

More Information

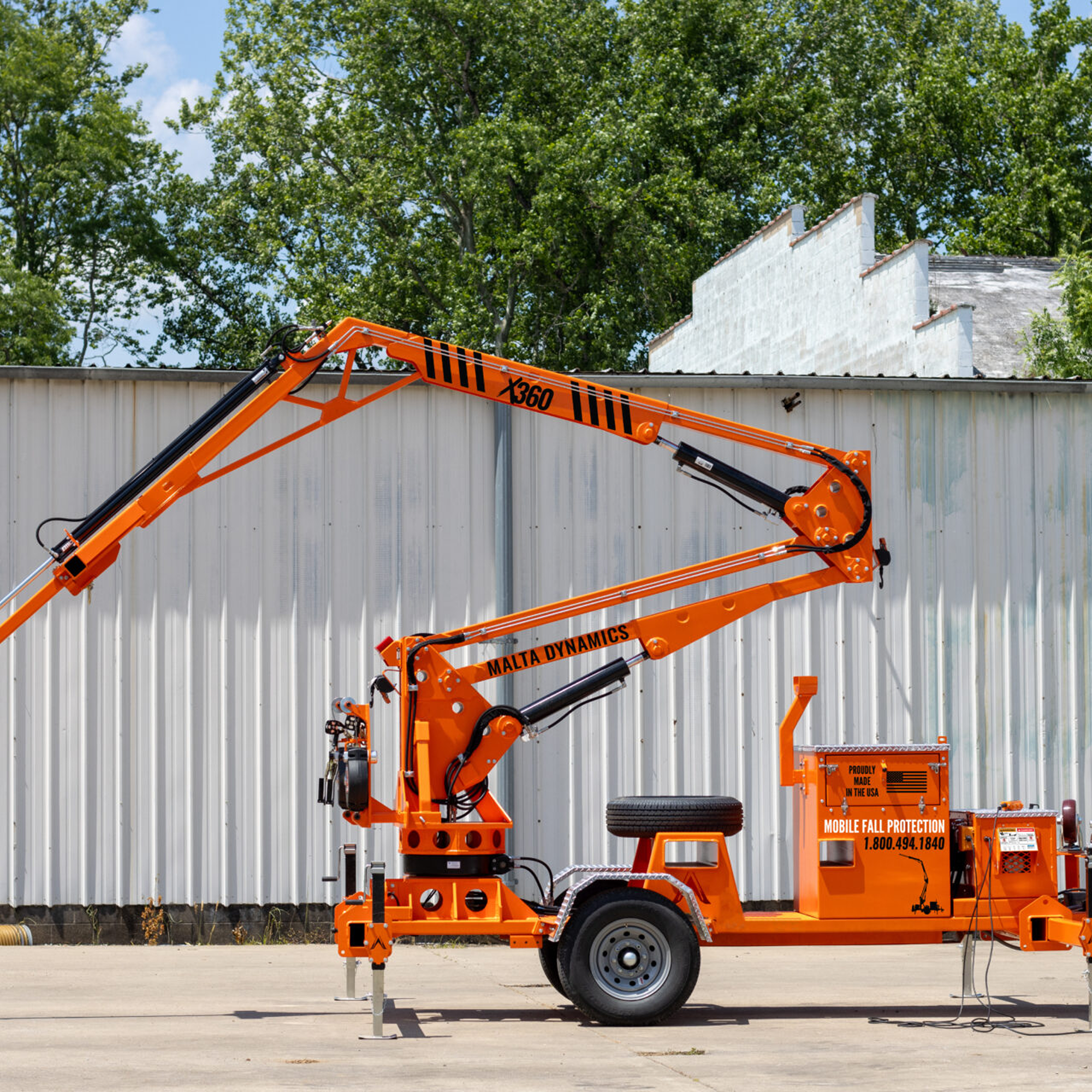

The XSERIES X360 is an advanced, road-towable mobile fall protection system designed to accommodate two workers, providing overhead anchorage up to 34 feet 6 inches in height. Featuring a compact and revolutionary design, the X360 boasts a 360-degree rotating mast that allows for unmatched portability and precise positioning. This ensures that workers maintain optimal anchor point alignment without needing to reposition the entire fall protection system, even on dynamic job sites.

Engineered with a folding steel mast and synchronized hydraulics, the X360 extends from a height of 2 feet to full extension, delivering consistent fall protection at various heights. Its 360-degree rotation further enhances convenience, allowing workers to remain directly beneath the anchor point without needing to adjust the outriggers, making it ideal for projects requiring frequent movement or repositioning.

Manufactured in an ISO-9001 certified facility in the USA, the X360 exceeds OSHA fall protection standards and undergoes rigorous testing to ensure reliable, high-performance anchorage in the toughest environments. The electric-powered hydraulic system, complete with remote control operation, offers smooth, precise adjustments for optimal worker safety and efficiency.

Resources

XSERIES Brochure

Spec Sheet

Working Diameter Charts

Inspection Form

Instruction Manual

Maintenance Manual

Declaration of Conformity

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	7180 lbs (3257kg)

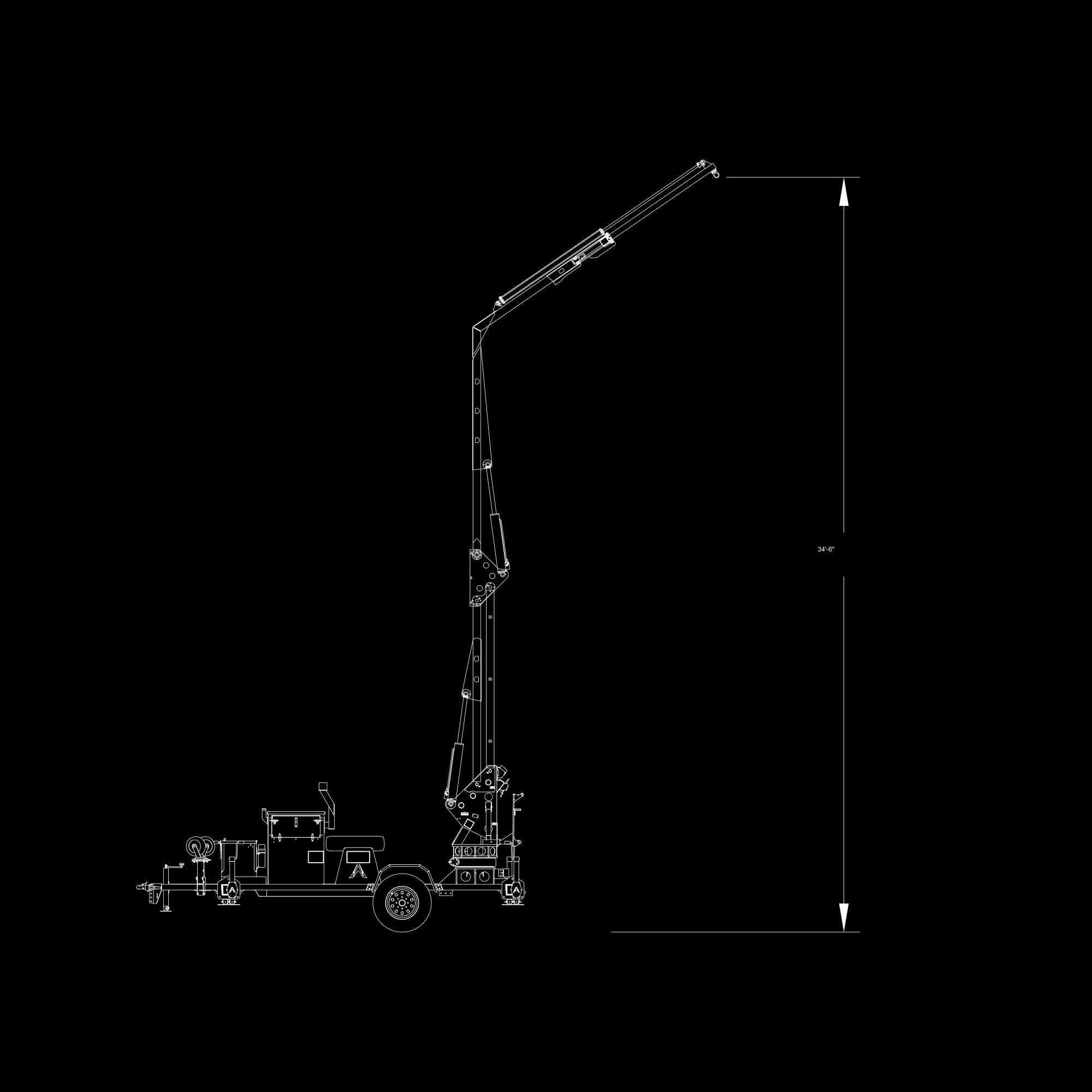

MAX. WORKING HEIGHT	34'-6" (10m) with Mast Fully Extended
MIN. WORKING HEIGHT	2' (.6m)
MAX. FOLDED HEIGHT	8'8" (2.6m)

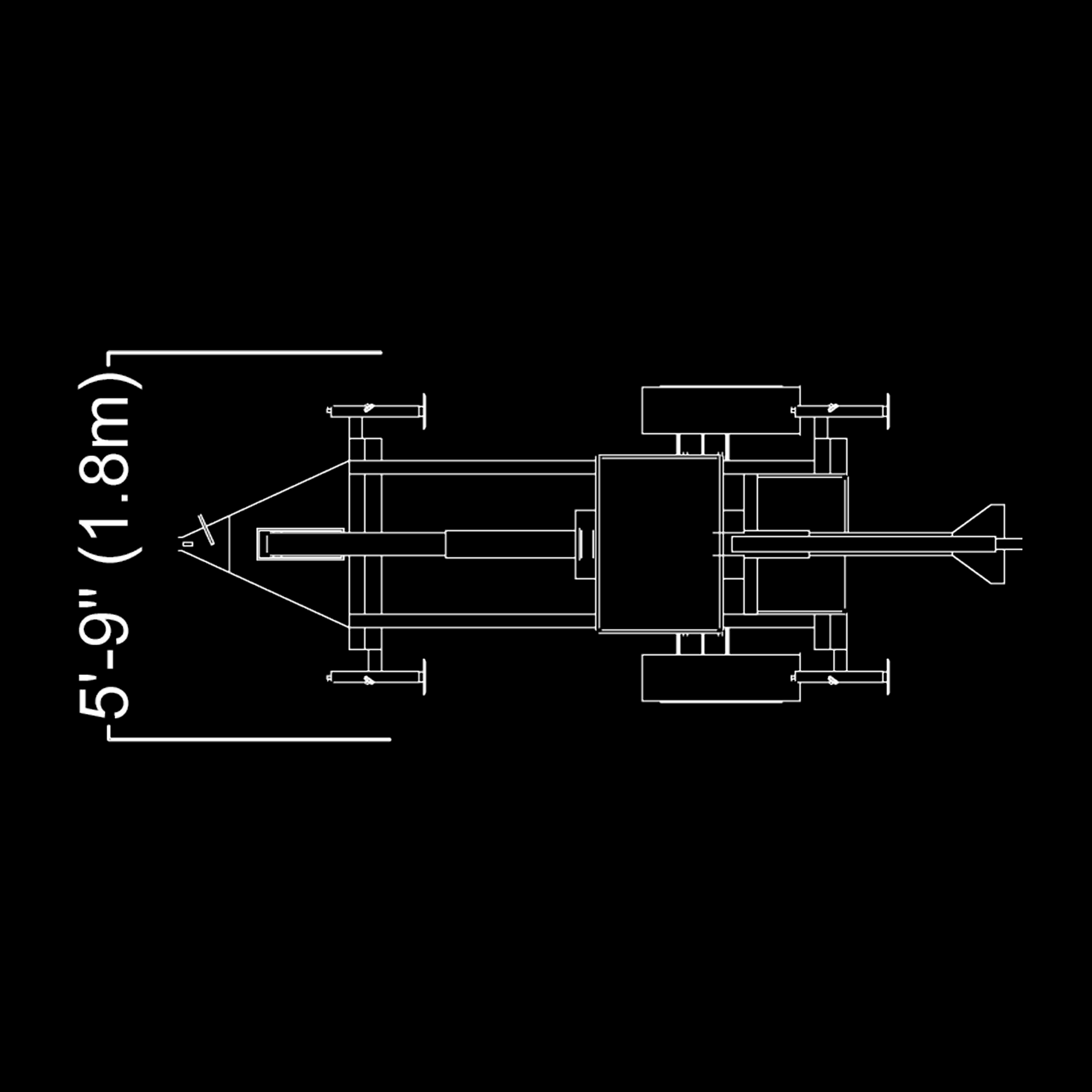

FRAME WIDTH	5'9" (1.7m)

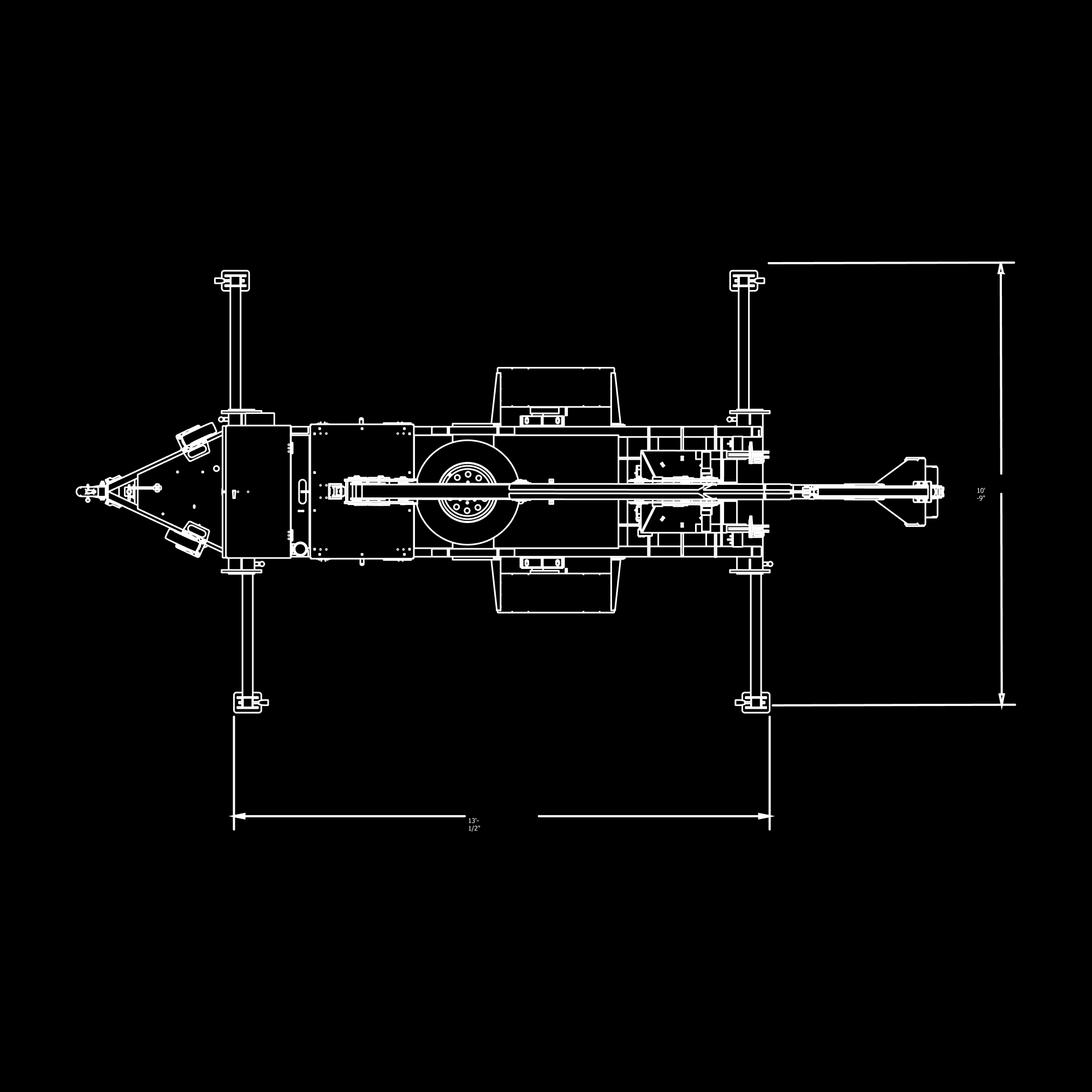

OUTRIGGERS EXTENDED WIDTH	10'9" (3.3m)
OVERALL LENGTH	20'5" (6.2m)
MAX. ARM REACH OUT	13'-6" (4.1m)
MAX. ANCHOR POINT CAPACITY	310 lbs
MAX. ALLOWABLE USERS	2
MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	7-Pole Blade
ACTUATING METHOD	Electric Powered Hydraulic System
CONTROLS	Pendant Remote (15'0 Cord length), Remote for Rotation (15'0 cord length)
POWER SOURCE	12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
CHARGING SYSTEM	110 Volt Quick Smart Charger with Cord
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Engineered for Every Jobsite.

Discover how XSERIES portable fall protection systems provide dependable overhead anchorage with quick deployment and maximum portability. Each model incorporates advanced safety features to support both fall restraint and fall arrest systems, designed to perform across diverse terrains and specific applications.

Blueprints & More.

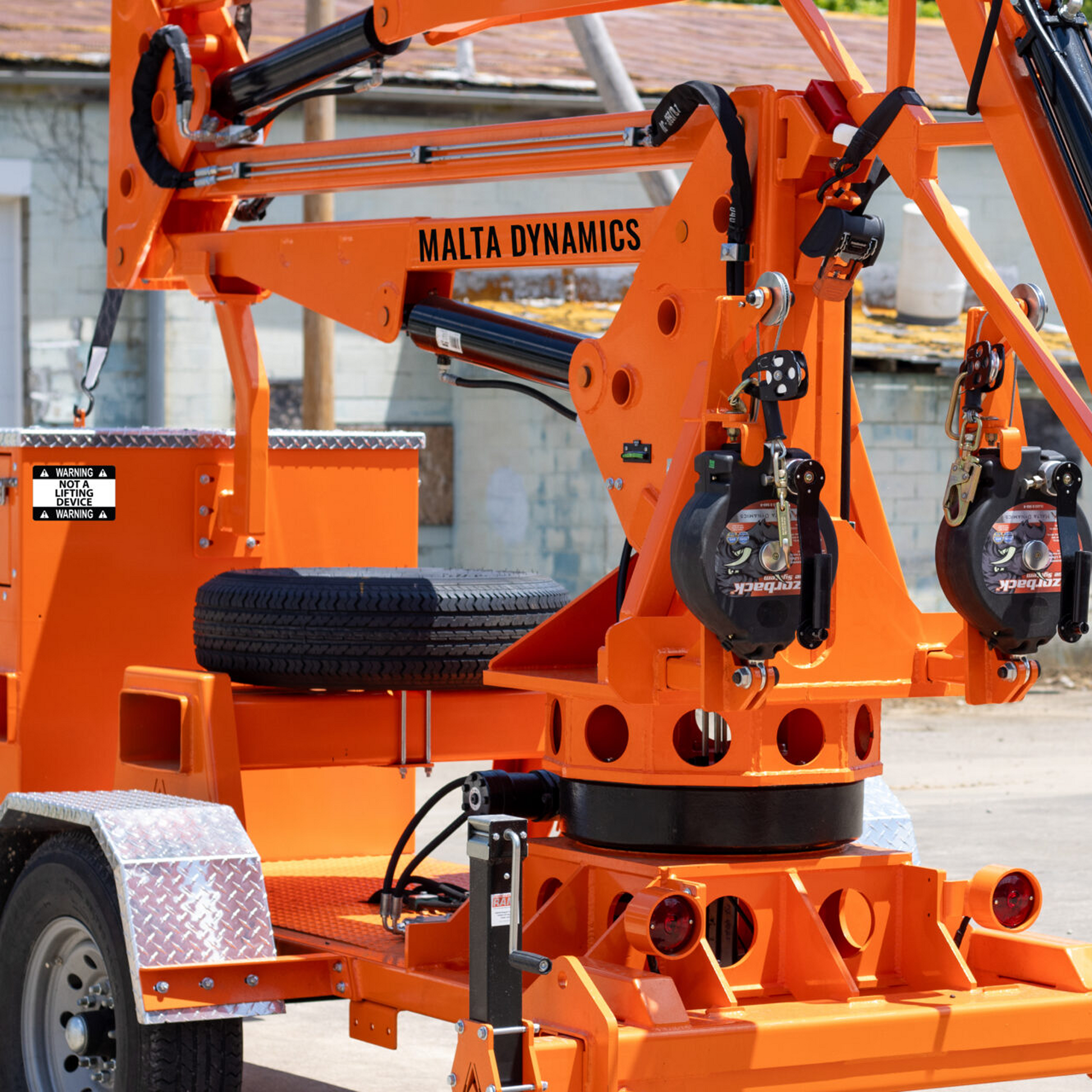

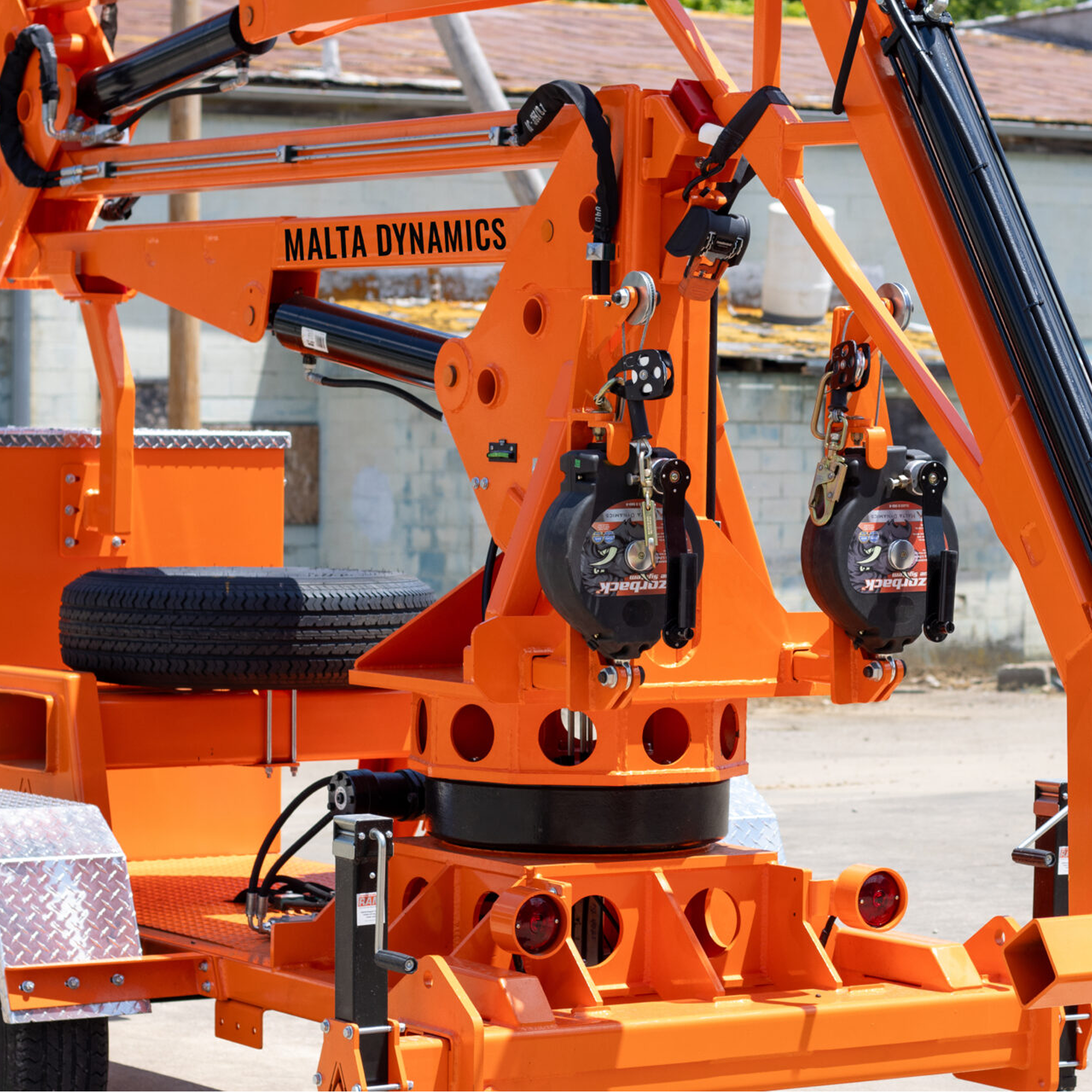

360° Rotation, Max Coverage.

The X360's compact design enables rapid setup on any roof, work area, or remote job site. Its electric-powered hydraulic system with pendant remote control allows your team to position the unit, stabilize the base with manual outrigger jacks, and establish secure tie-off points efficiently.

The unique 360-degree rotating mast eliminates the need to reposition the entire fall protection cart when work areas shift.

Mobility Enhancement Package

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

Stabilizer Pads
Hydraulic Outriggers
LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

We don’t just manufacture fall protection equipment– we use it every day. At Malta Dynamics, our team originates from the field, and every mobile fall protection solution we engineer reflects that hands-on experience with worker safety at height.

The X360 Mobile Grabber represents our trusted XSERIES collection: high-performance, portable fall arrest systems ready for the demands of real-world job sites. Why professionals trust Malta Dynamics:
