X1240

Name: X1240
Brand: Malta Dynamics
Availability: InStock

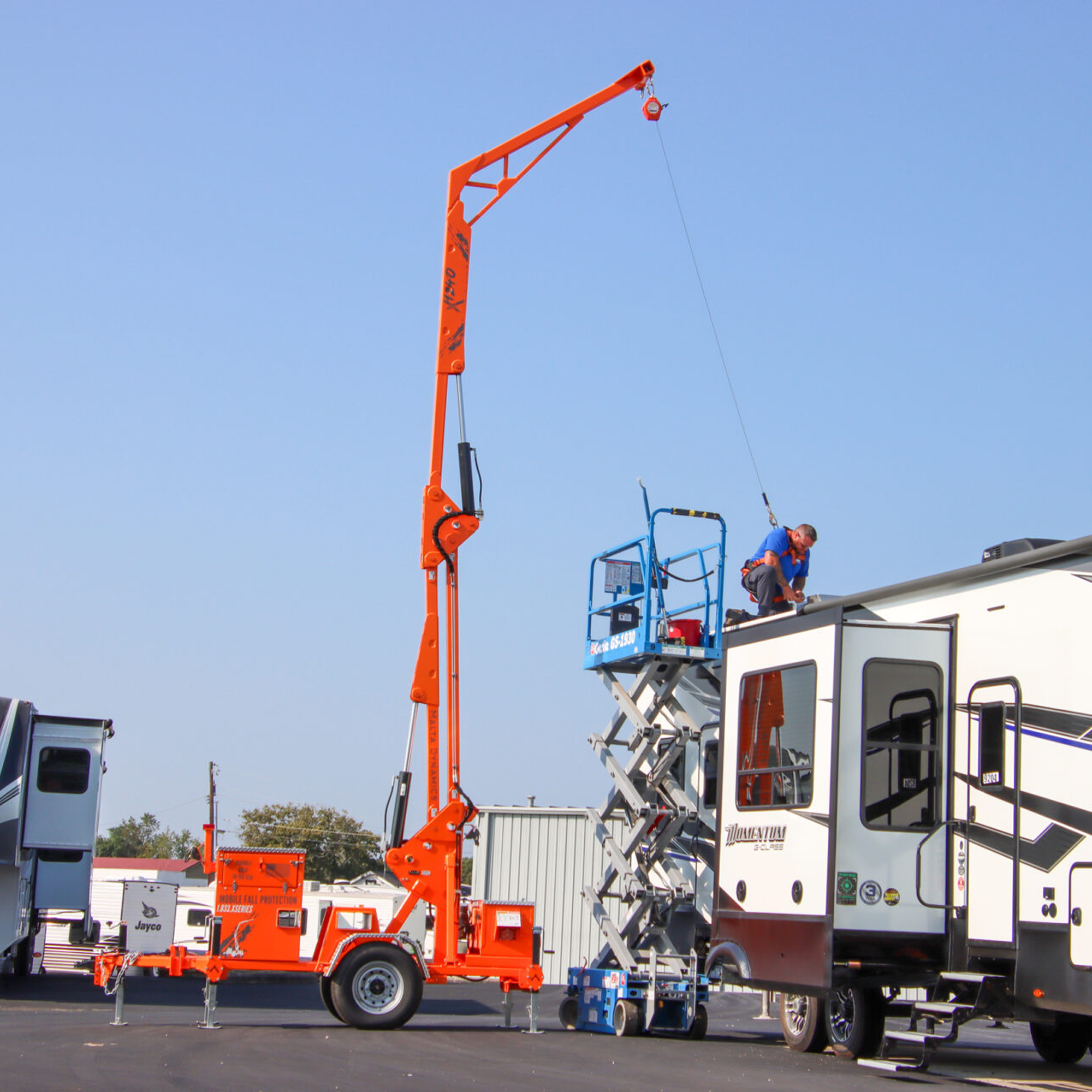

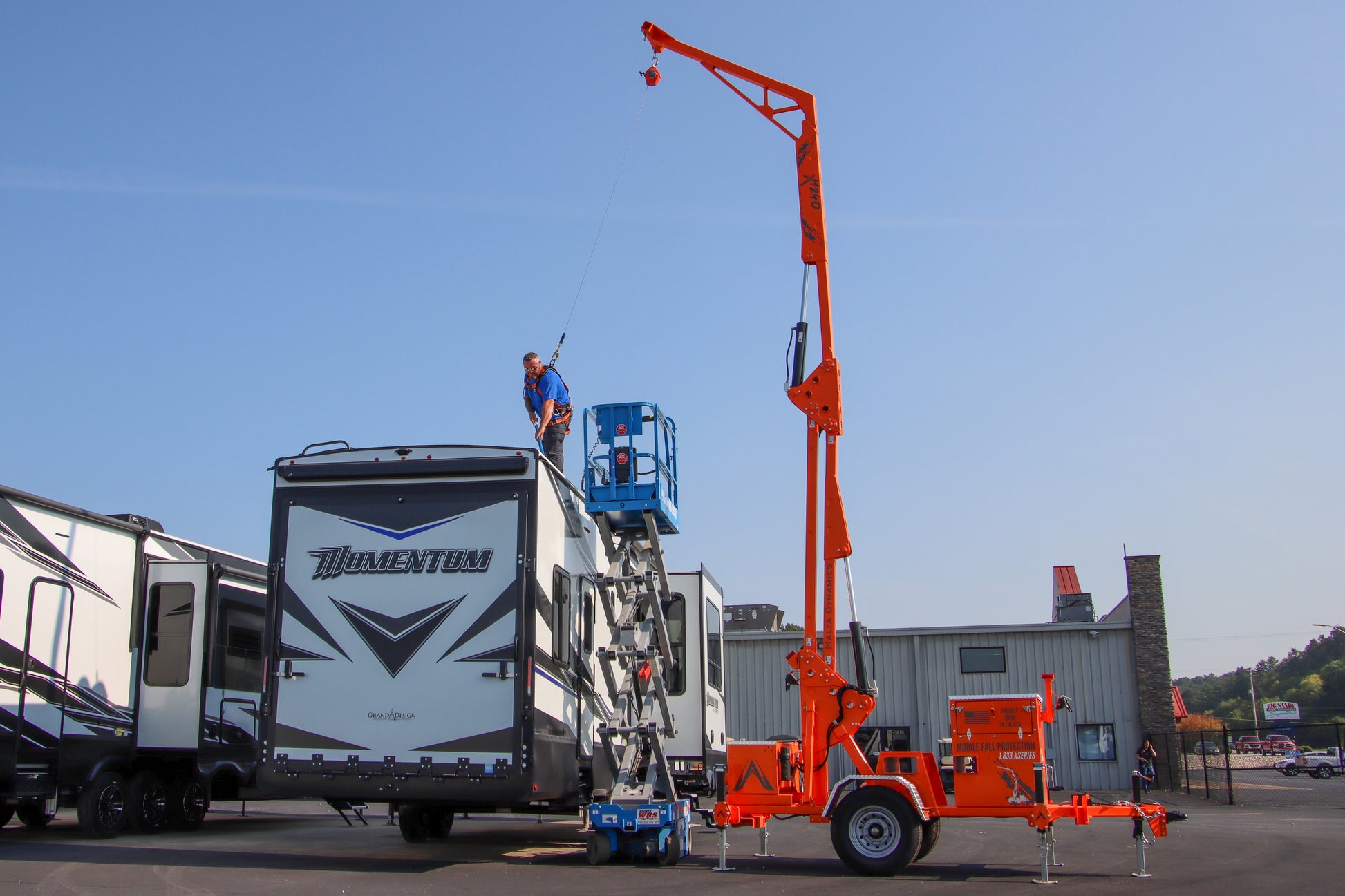

The XSERIES X1240 is a road-towable, portable fall protection system for two workers, providing overhead anchor points with 310 lb. capacity per anchor. Powered by a rechargeable battery, it offers quick setup and unmatched portability across construction sites and industrial settings.

More Information

The XSERIES X1240 from Malta Dynamics is a portable fall protection system designed to provide reliable overhead anchor points for up to two workers. With two 310 lb. anchor point capacities, the X1240 supports both fall arrest and fall restraint applications, making it an ideal solution for a wide range of jobsite conditions.

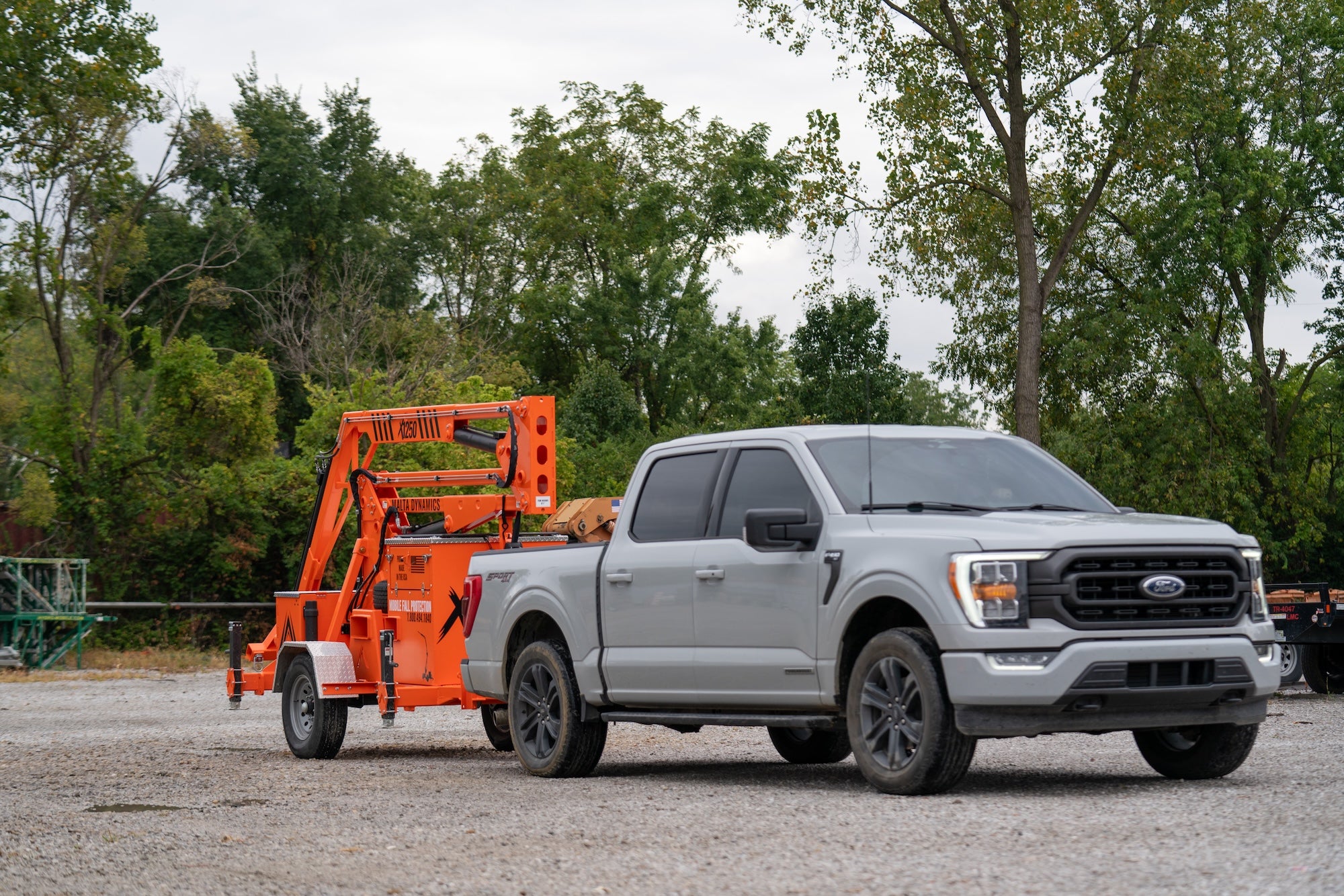

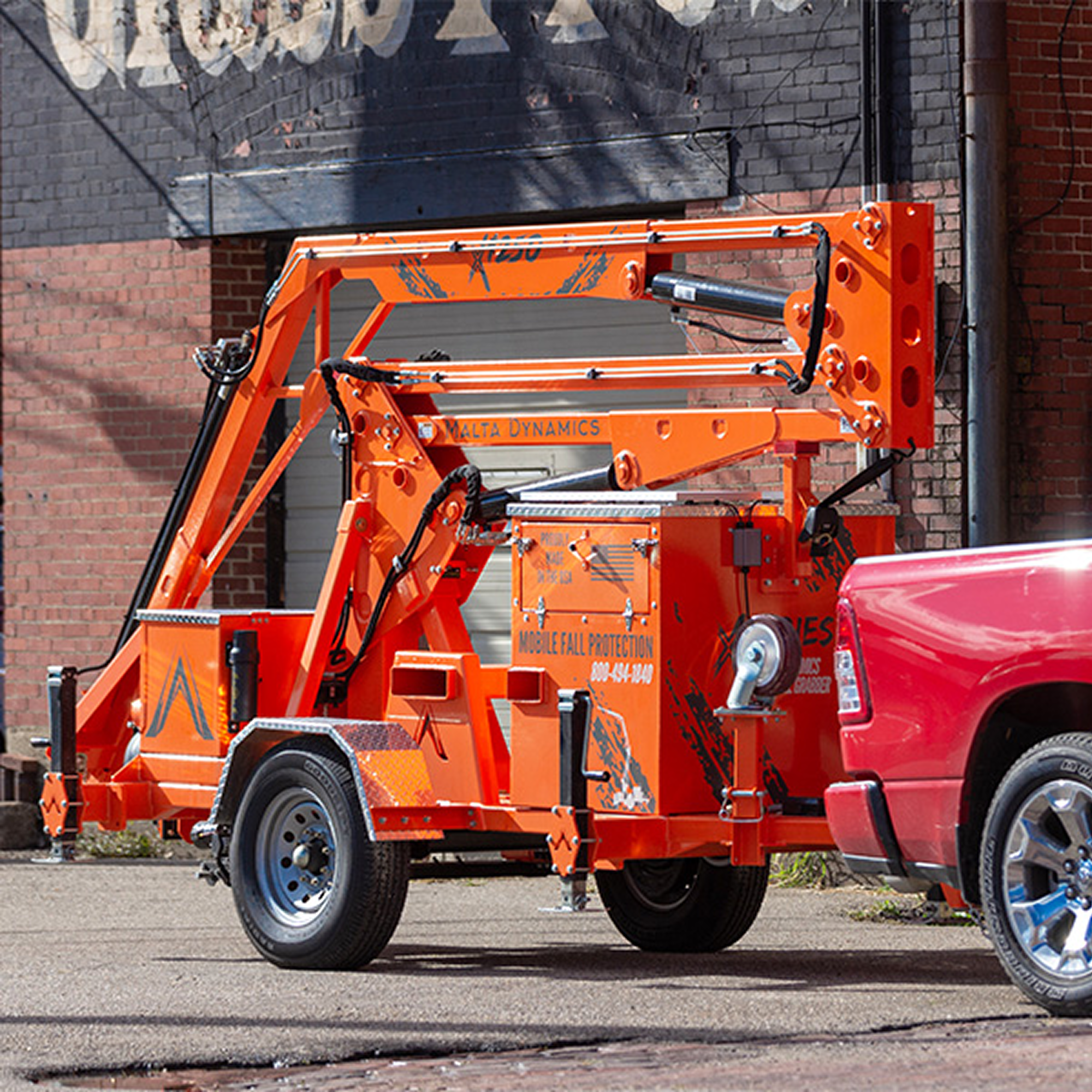

Boasting a compact, road-towable design, the X1240 ensures exceptional portability, allowing for quick repositioning across construction sites, industrial settings, and rough terrain. The system’s setup is efficient, powered by a rechargeable battery and featuring manual outrigger jacks for swift deployment without the need for heavy machinery or extended preparation.

Engineered with flat-free tires and an integrated axle, the X1240 is built for high performance, even on challenging surfaces. Tested to exceed OSHA and ANSI Z359 standards, this mobile fall arrest system offers unmatched reliability and safety on the jobsite.

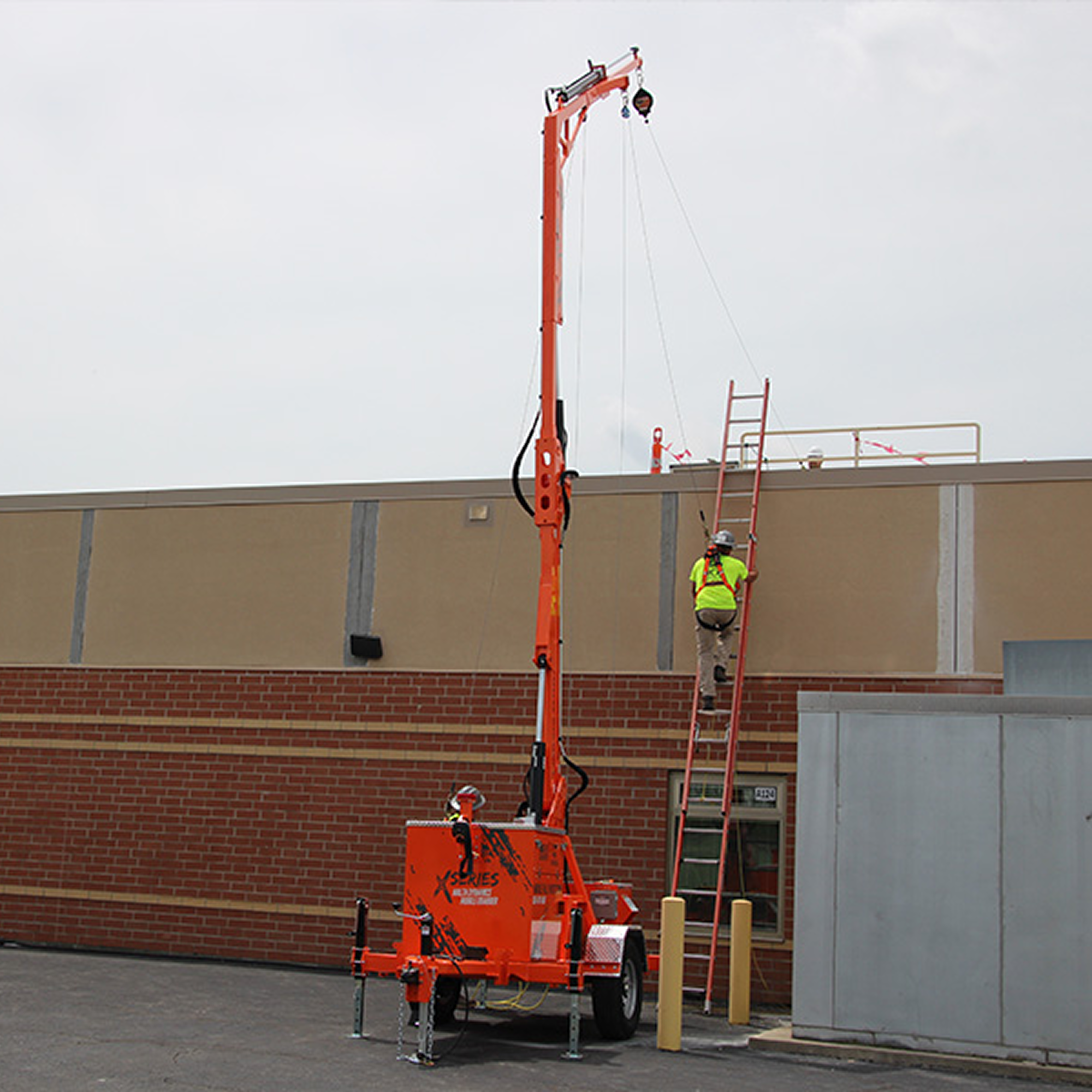

With its user-friendly design, the X1240 can be deployed in minutes. Workers can easily adjust the manual outrigger jacks, position the unit, and tie off using the integrated overhead anchor points. Whether relocating across a large work area or setting up for the day, the X1240 helps your crew stay productive with minimal downtime, ensuring OSHA-compliant safety without the hassle of additional lifting equipment.

At Malta Dynamics, we pride ourselves on creating field-tested, field-approved fall protection products that meet the demands of your toughest jobs.

Resources

XSERIES Brochure

Spec Sheet

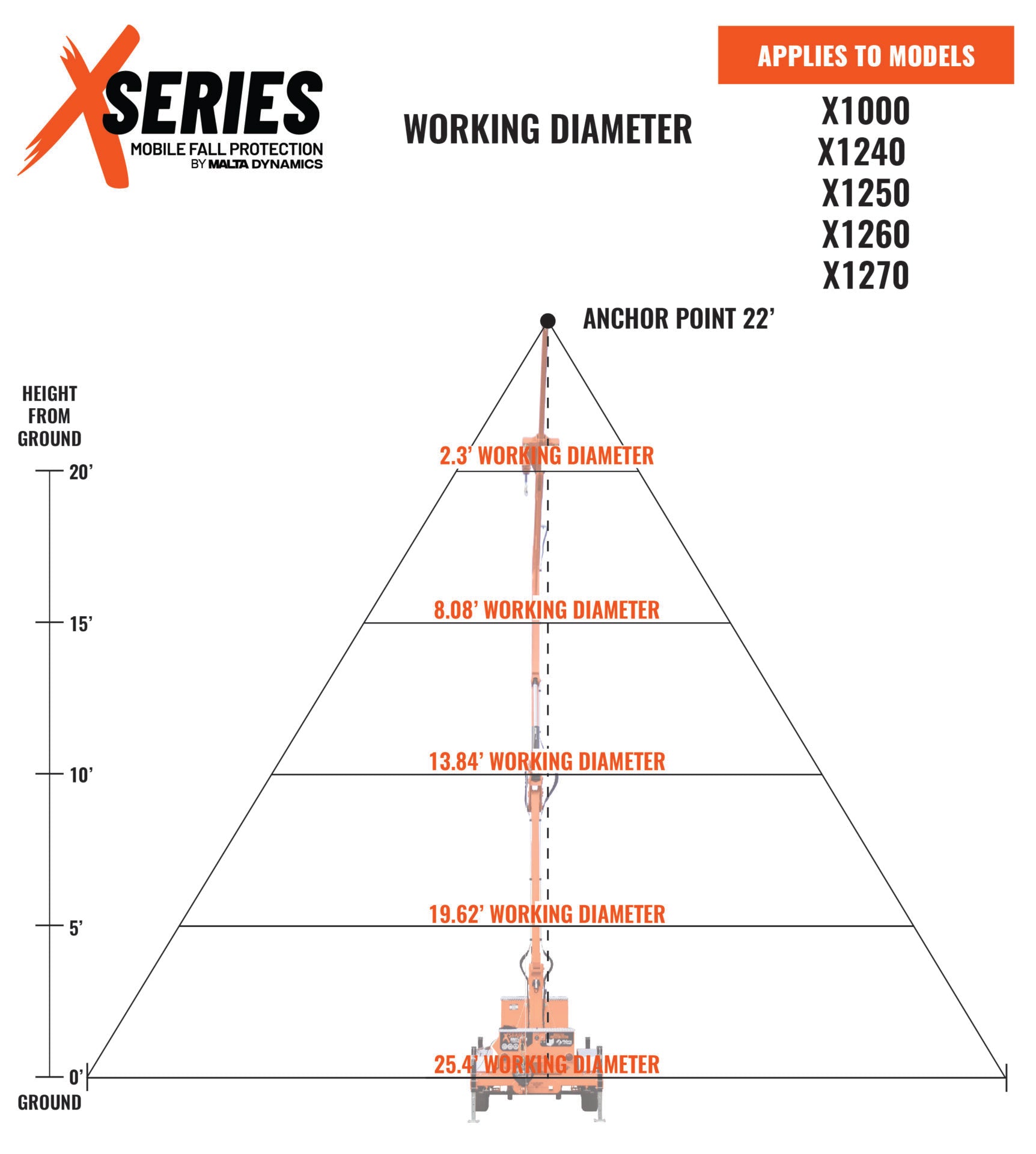

Working Diameter Charts

Inspection Form

Instruction Manual

Maintenance Manual

Declaration of Conformity

1-Year Unlimited Warranty

5-Year Structural Warranty

Product Specs.

SPECIFICATION	DETAIL
WEIGHT	5900 lbs.
MAX. WORKING HEIGHT	30' (9.1m)
MIN. WORKING HEIGHT	2' (.6m)

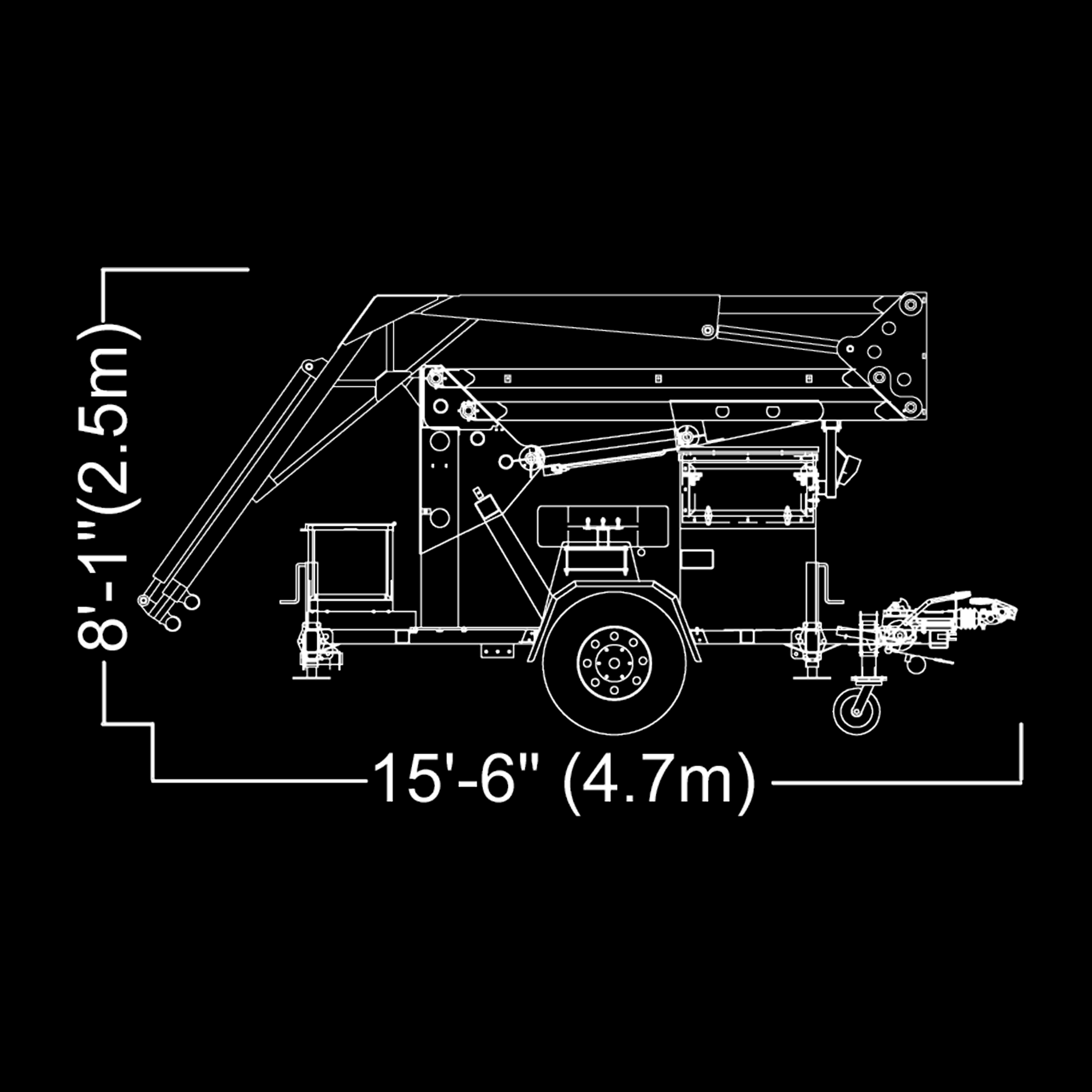

MAX. FOLDED HEIGHT	8'1" (2.6m)

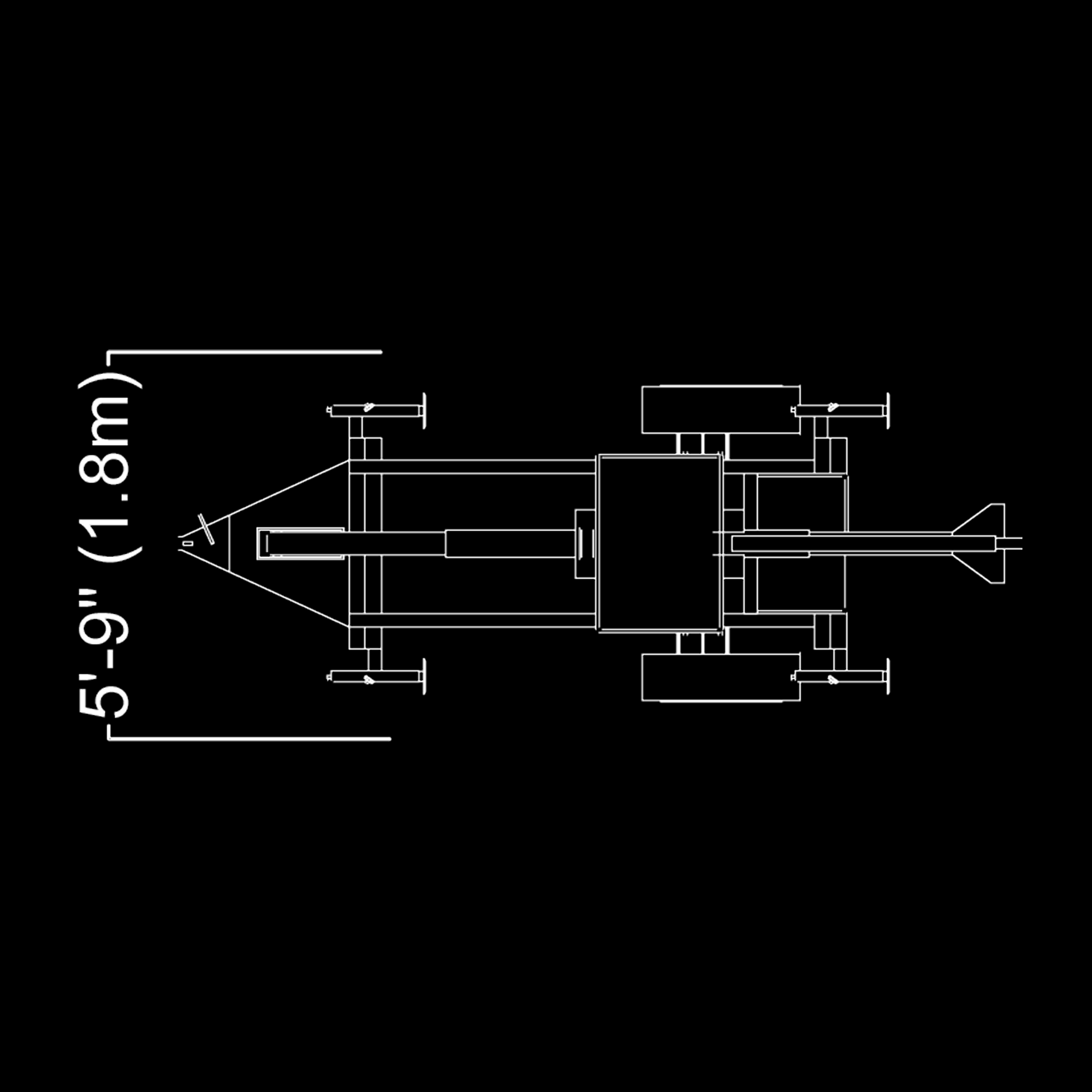

TOWING WIDTH	5'9" (1.8m)
OVERALL LENGTH	15'6" (4.7m)
MAX. ARM REACH OUT	4'-5.5' (1.4m)
MAX. ANCHOR POINT CAPACITY	310 lbs.
MAX. ALLOWABLE USERS	2
MAX. TOWING SPEED	Posted Highway Speed
TRAILER PLUG WIRING	7-Pole Blade
ACTUATING METHOD	Electric Powered Hydraulic System
CONTROLS	Remote (15ft Cord length)
POWER SOURCE	12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge
CHARGING SYSTEM	110 Volt Quick Smart Charger with Cord
OUTRIGGER SYSTEM	4 Manually Adjustable Jacks
WARRANTY	1yr + 5yr Structural

OVERHEAD FALL PROTECTION

Rapid Deployment on any jobsite.

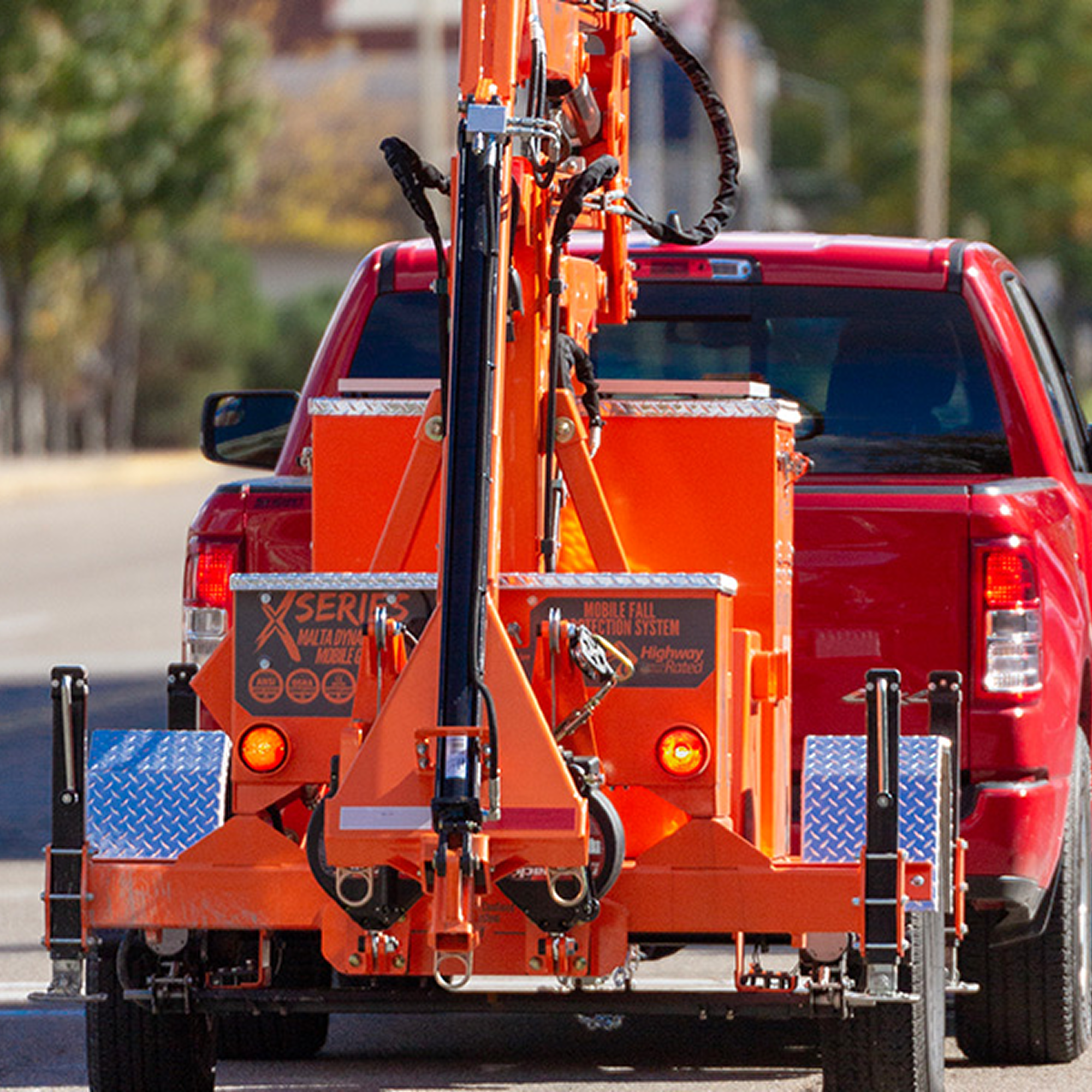

See how our XSERIES models provide overhead anchorage points, quick setup, and unparalleled portability on the jobsite. Our models support both fall arrest and fall restraint across various terrain systems and applications.

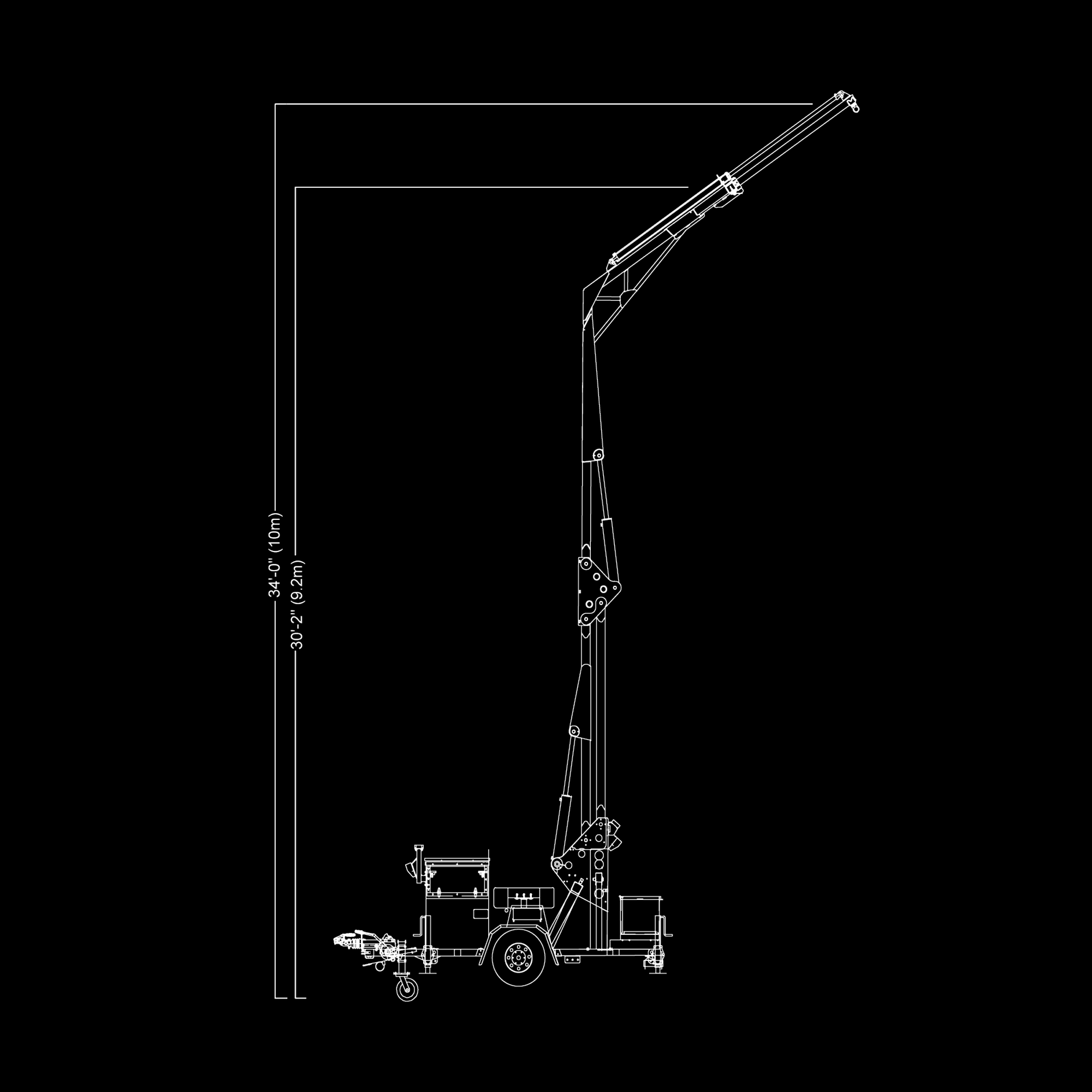

Blueprints & More.

Simple Setup in Minutes.

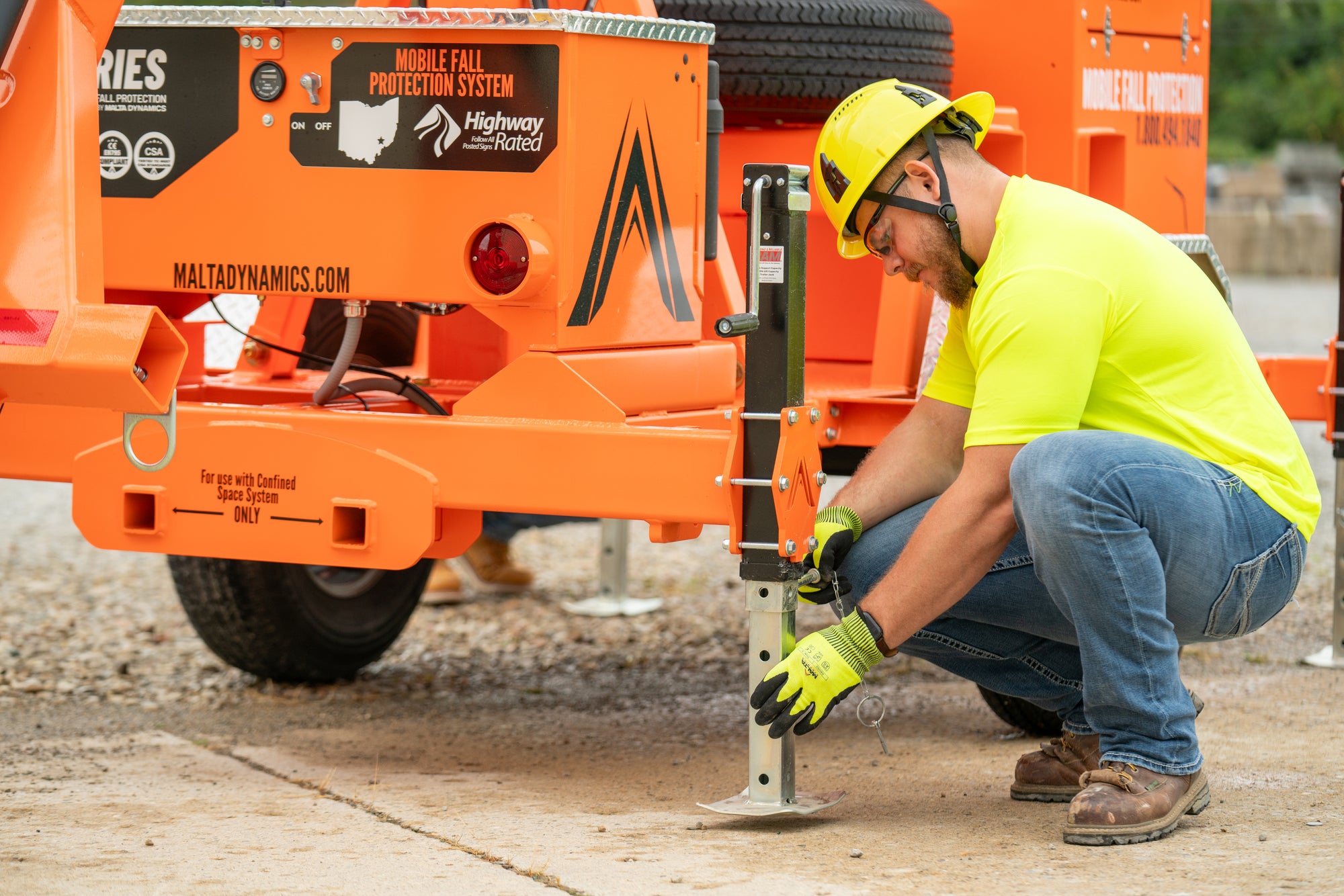

The X1240 is designed for efficiency where it matters most – on the jobsite. With a user-friendly layout and battery-powered operation, the system can be deployed in just minutes. Workers can easily position the unit, adjust the manual outrigger jacks, and tie off using the integrated overhead anchor points. There’s no need for heavy machinery or extended prep time. Whether you're relocating across a large work area or setting up for the day, the X1240 helps crews stay productive with minimal downtime.

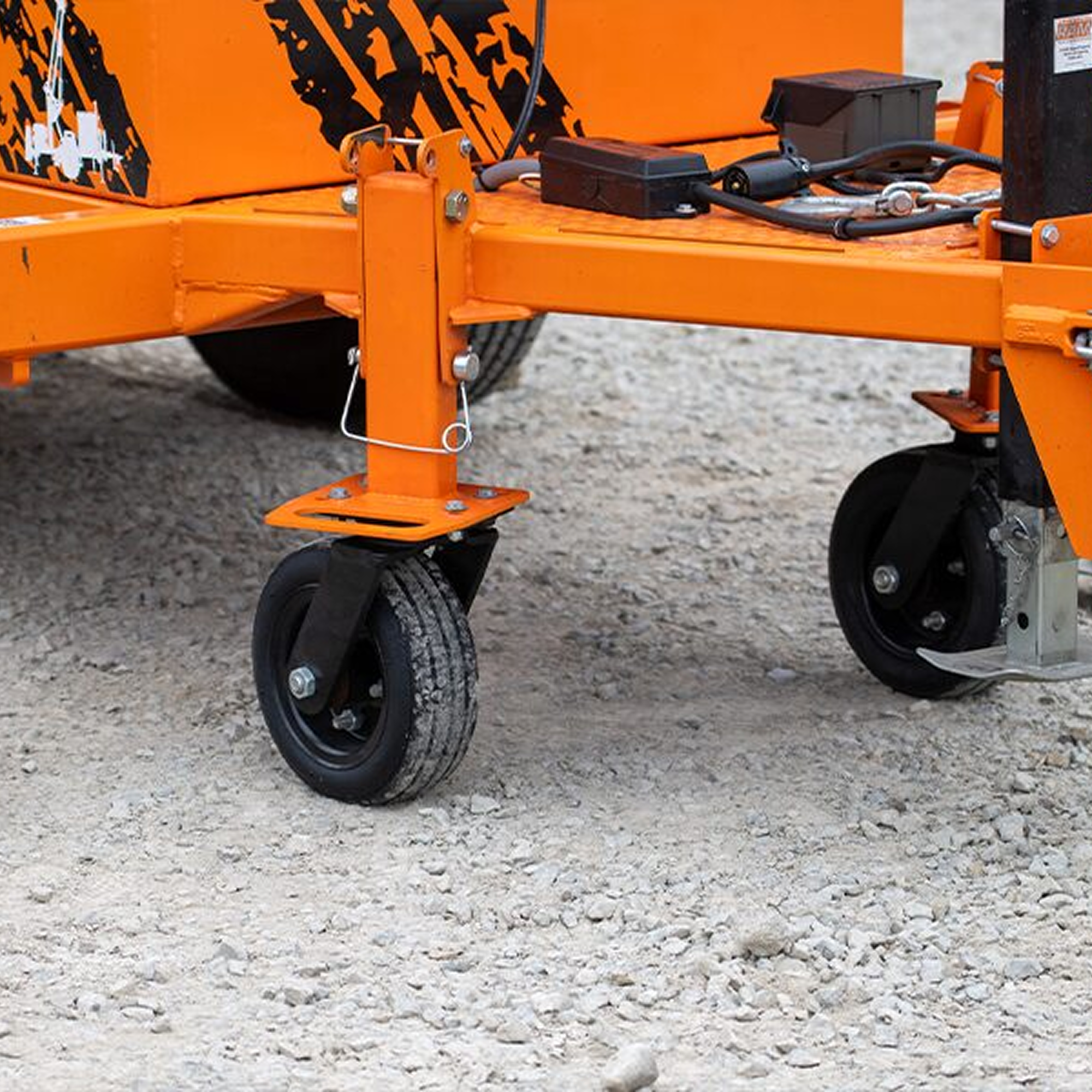

Mobility Enhancement Package

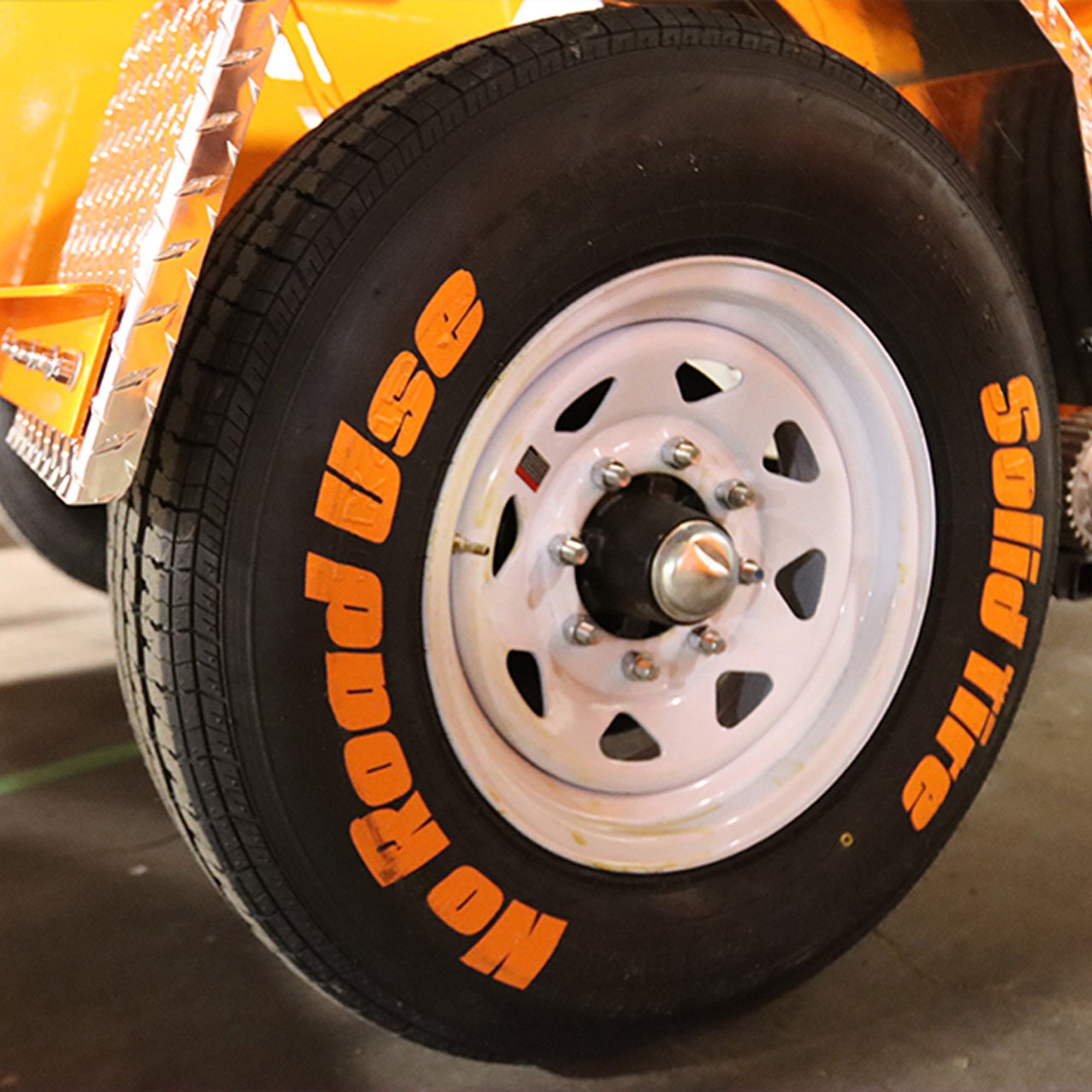

Maximize maneuverability with flat free tires and enhanced positioning components, enabling easier movement across challenging terrain and tight space operations.

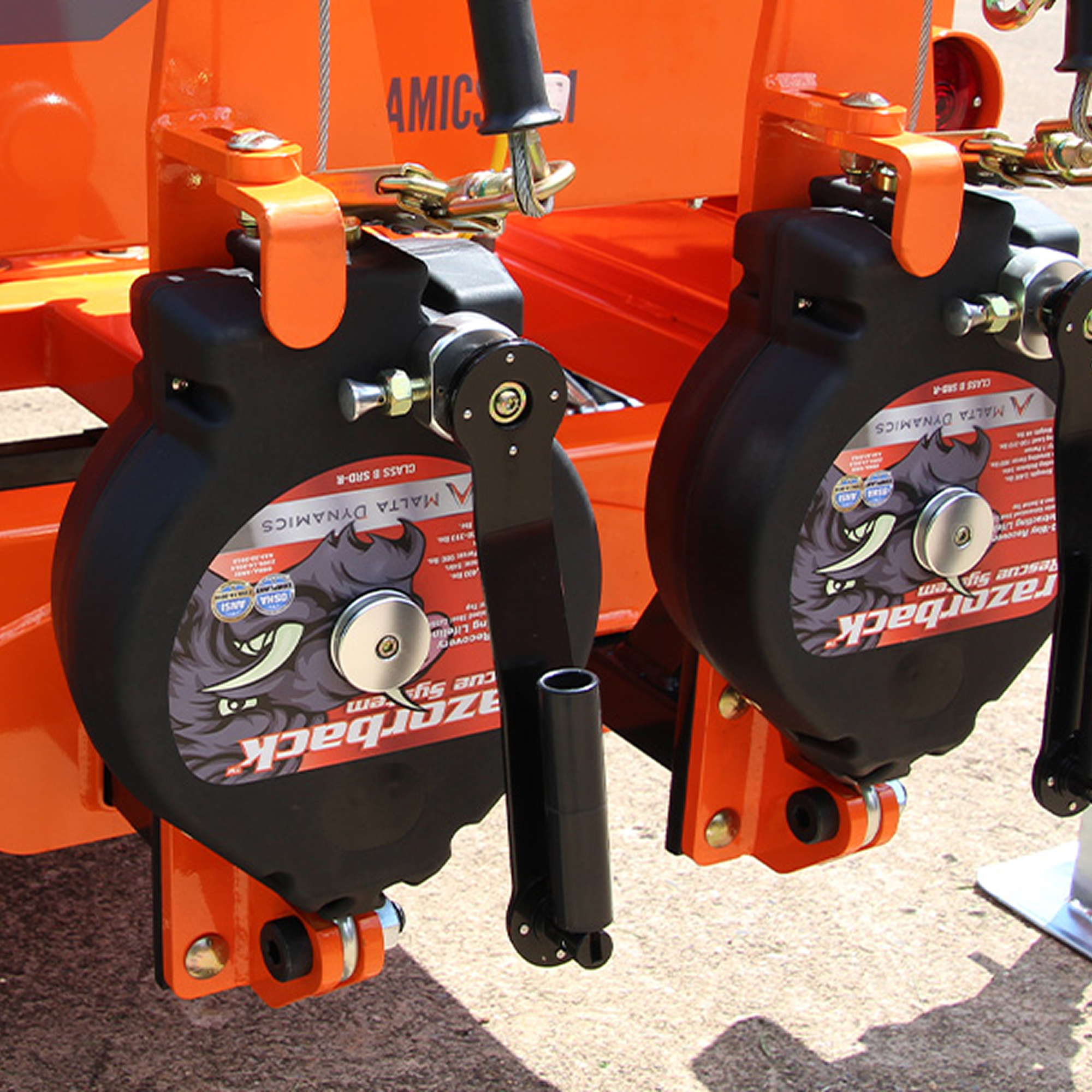

Rescue & Recovery System

Enable rapid and safe worker retrieval in fall arrest situations. This enhancement supports complete OSHA compliance by providing immediate, on-site rescue capabilities for your fall protection solution.

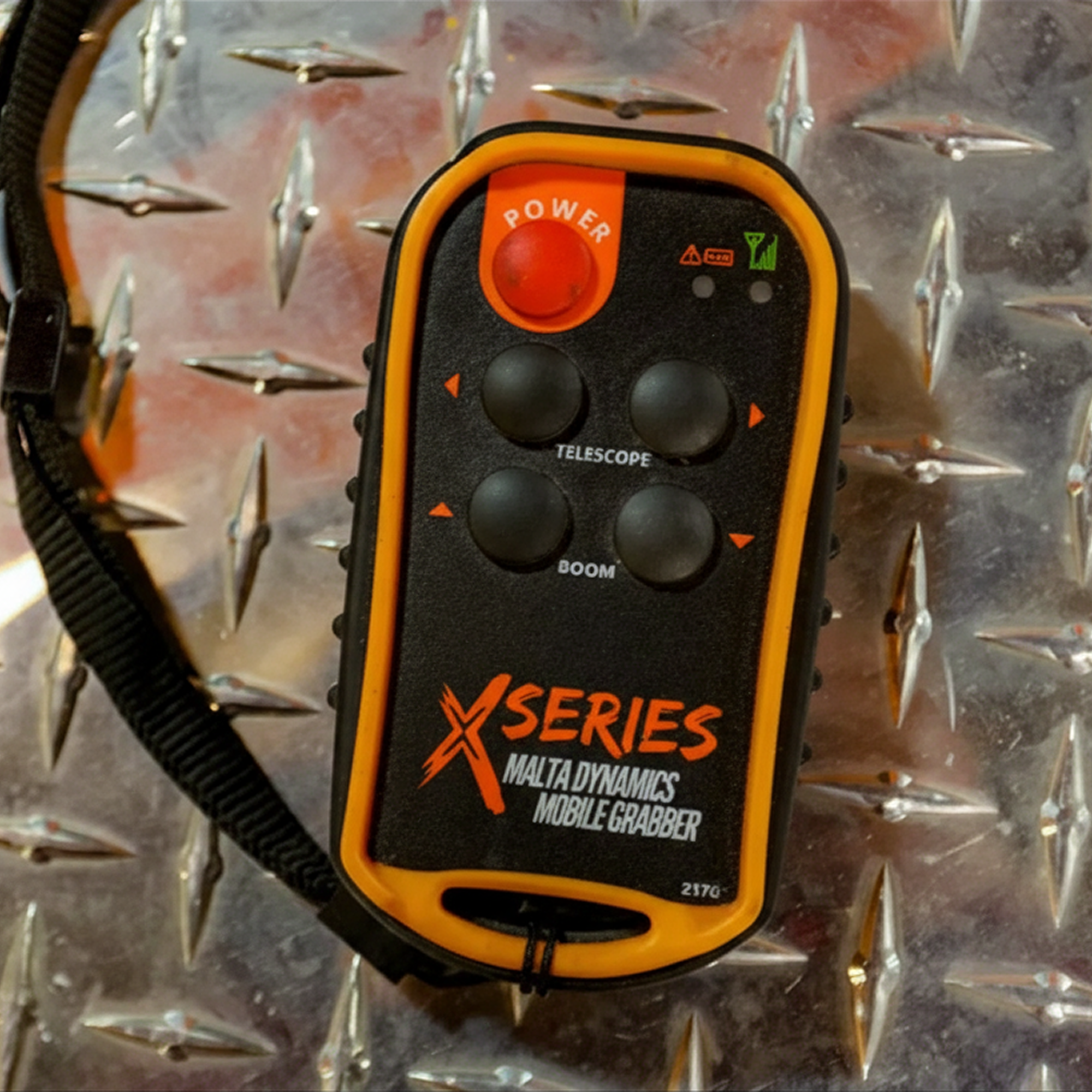

Wireless Remote Control

Upgrade to advanced wireless operation for faster, safer deployment. Control mast elevation, rotation, and hydraulic adjustments remotely—ideal for confined spaces or single-operator setups.

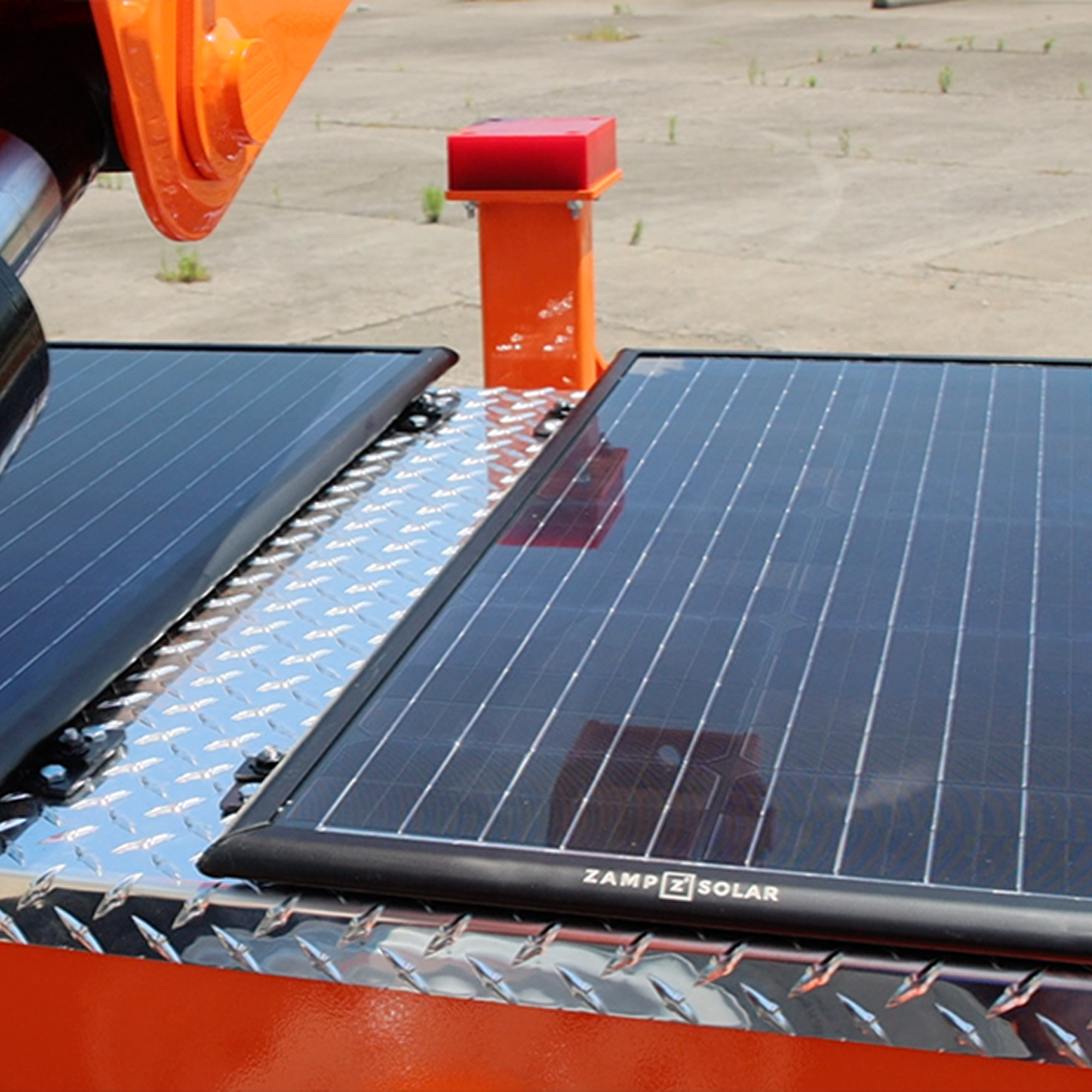

Solar Power System

Extend operational time and reduce downtime with solar charging panels that maintain battery power during extended shifts or remote job sites with limited electrical access.

Counterweight Base Enhancement

Increase stability with additional counterweight options for challenging work environments requiring enhanced anchoring capability.

Additional Customization

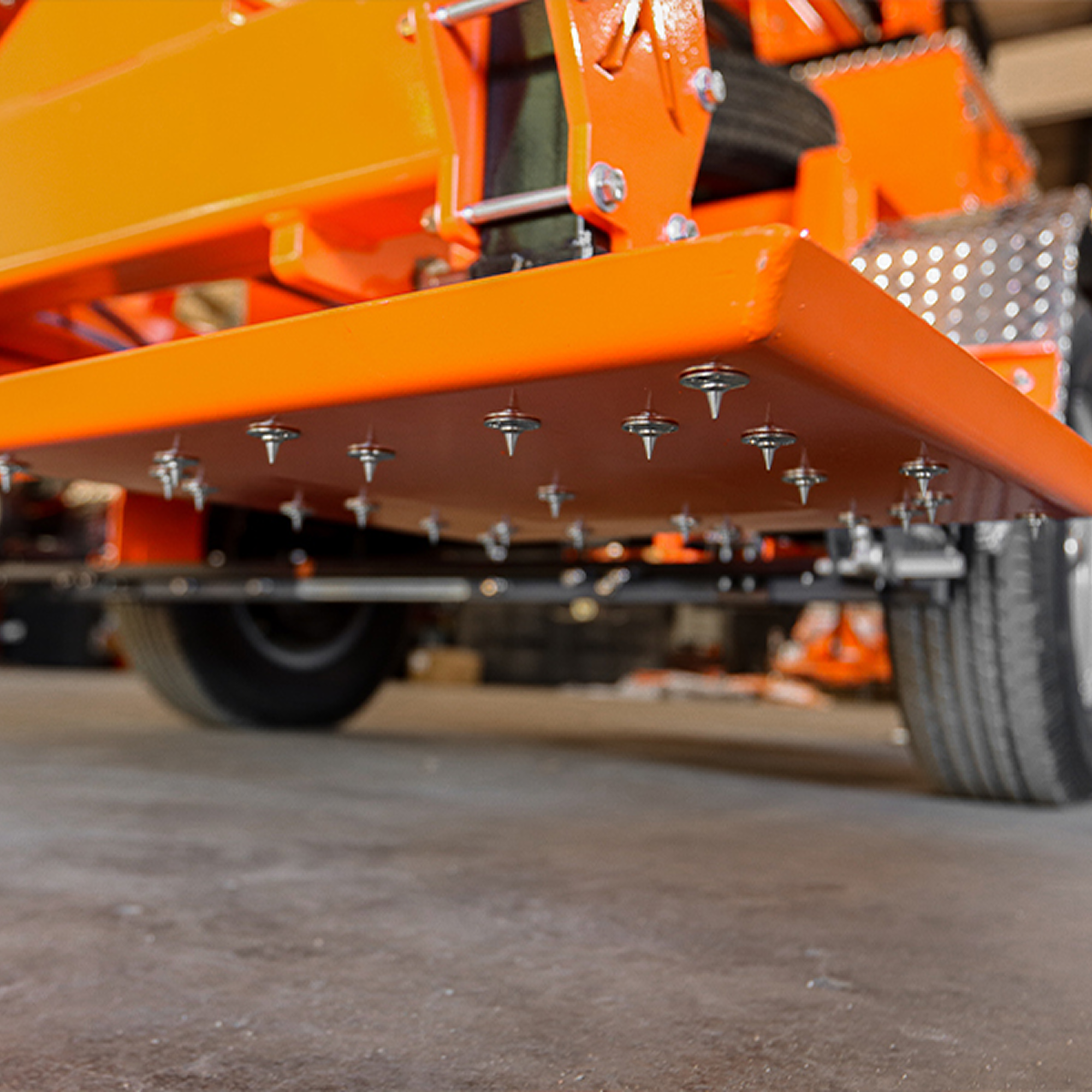

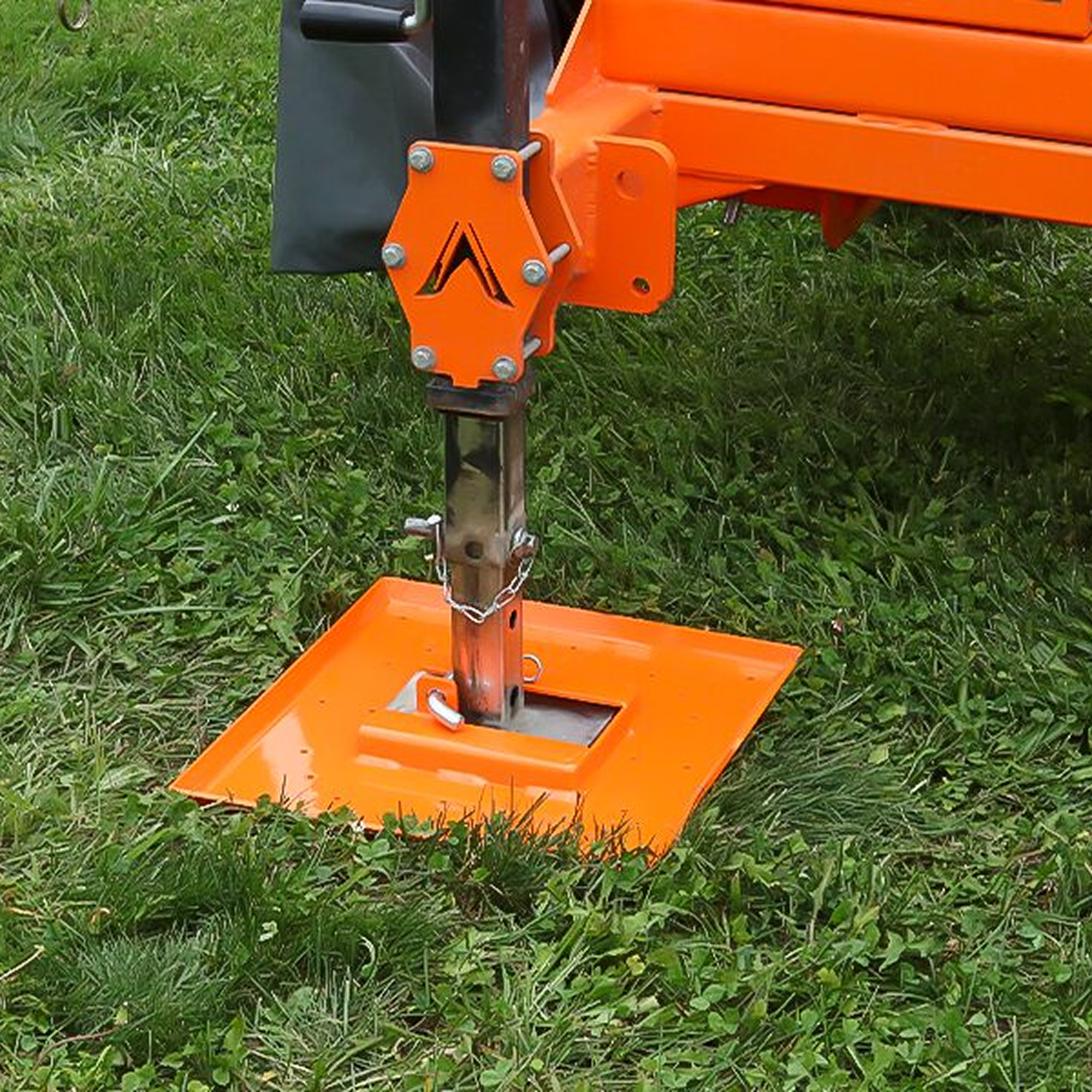

Stabilizer Pads

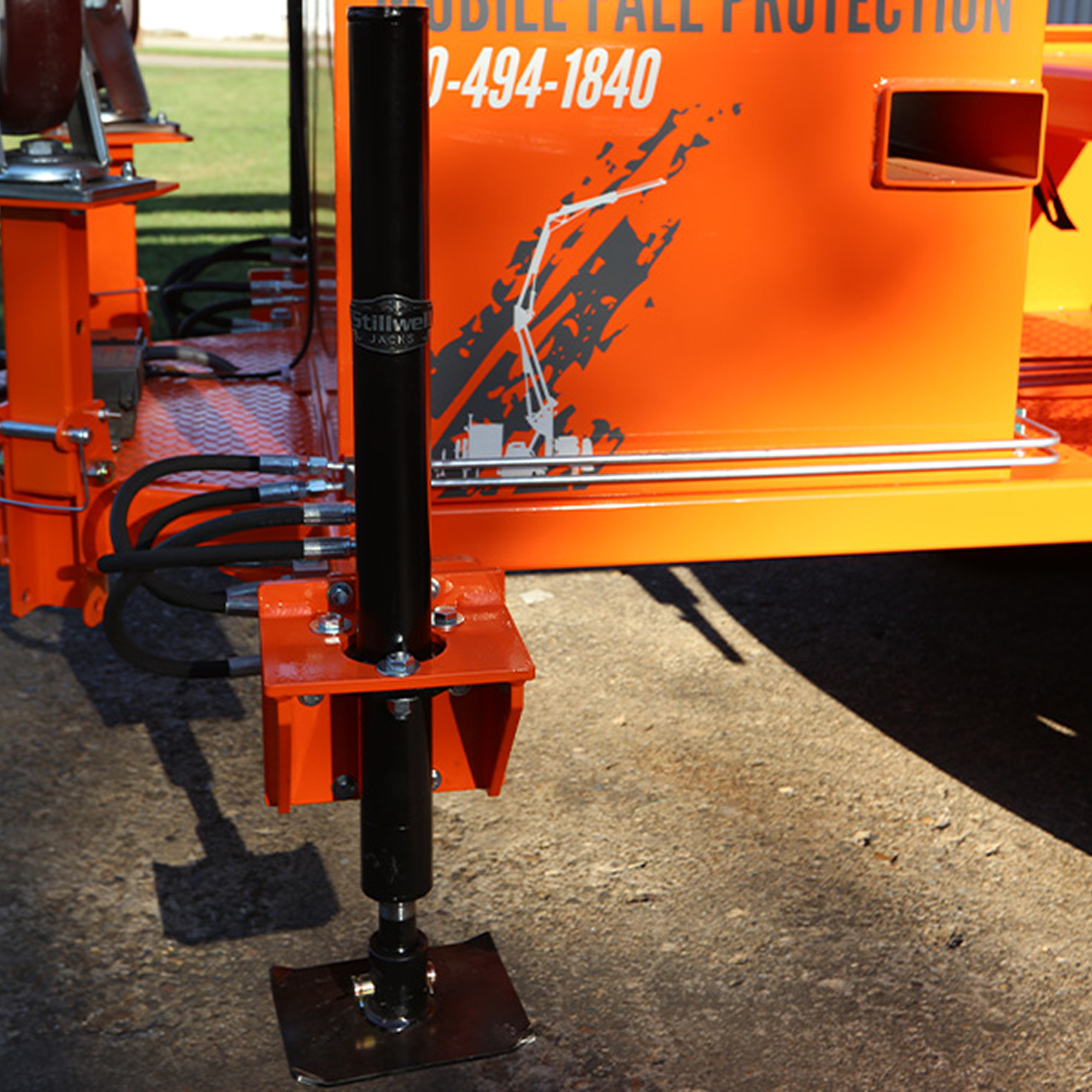

Hydraulic Outriggers

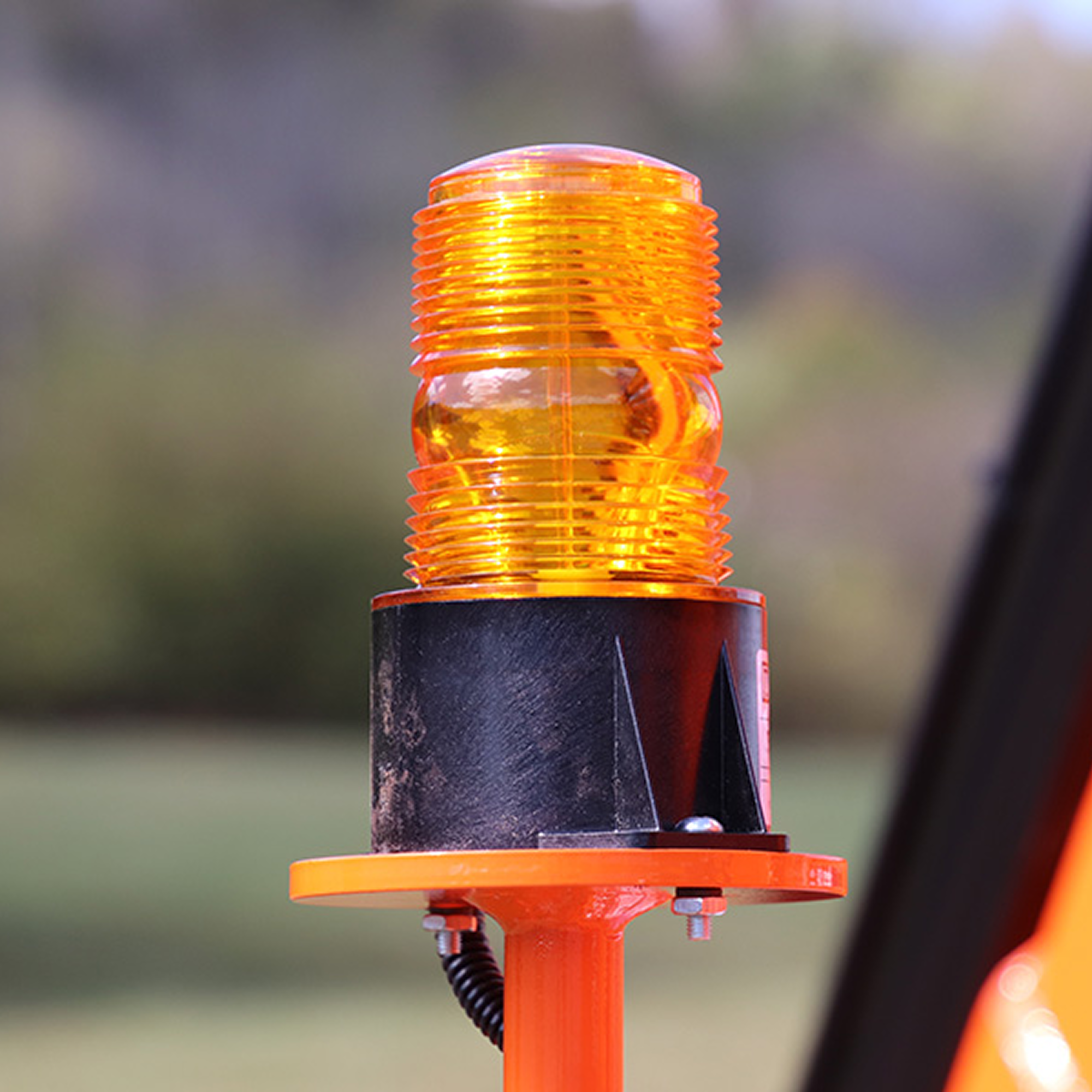

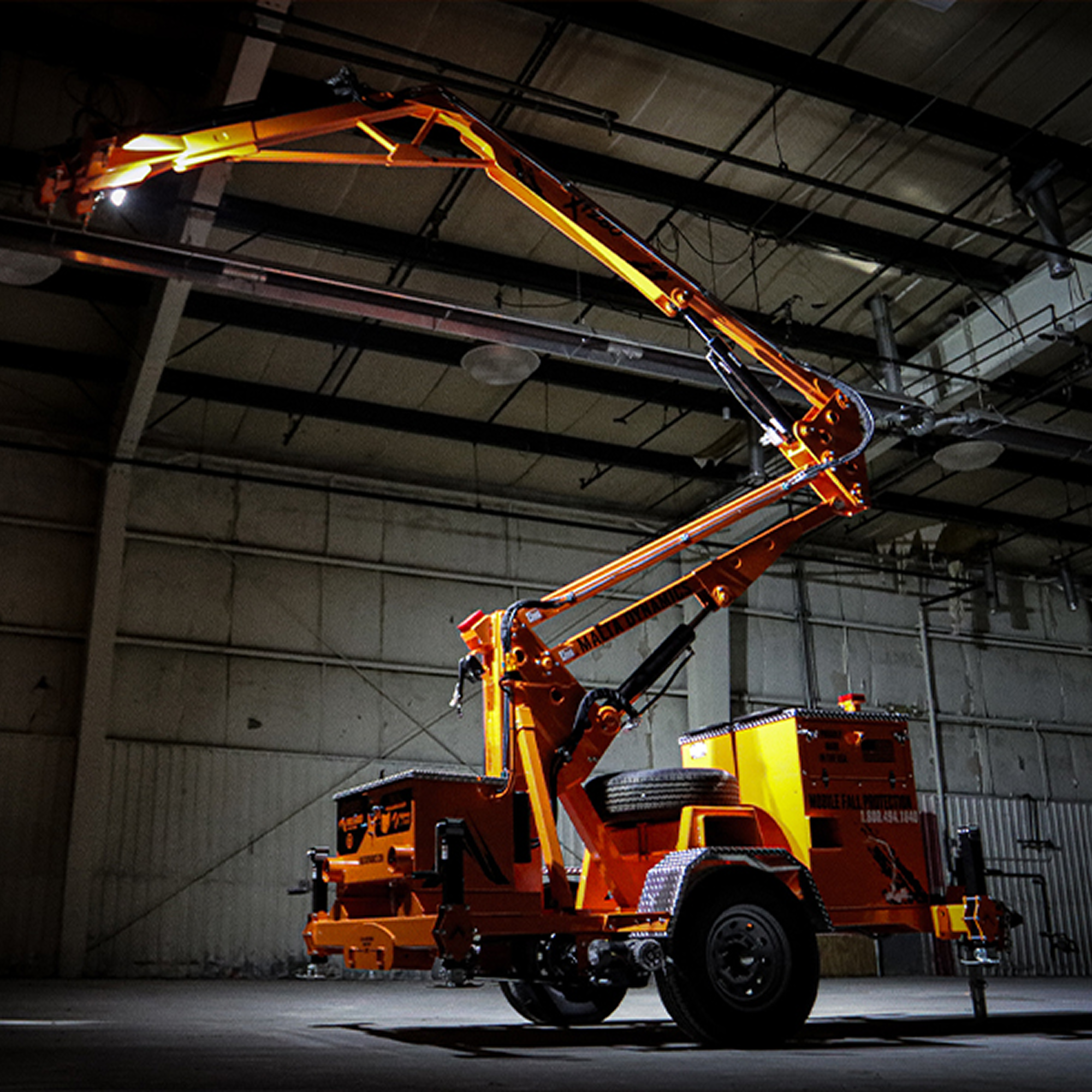

LED Lighting Kit

FOR THE BEST MOBILE FALL PROTECTION SYSTEMS,

Choose Malta Dynamics.

At Malta Dynamics, we design safety products and systems that work as hard as you do. Our team comes from the field — so we understand the real-world challenges of staying safe while working at height.

The XSERIES Mobile Grabber lineup, including the X1240, is built with performance, portability, and protection in mind. Every unit is manufactured in an ISO 9001-certified facility and rigorously tested to meet or exceed OSHA and ANSI Z359 standards. From overhead anchor points to complete fall protection systems, we offer equipment you can trust — every shift, every job, every time.
