Beam Walker Super Slider
Beam Walker Super Slider
Regular price
$157.67
Sale price
$157.67
Regular price
$185.49
Shipping calculated at checkout.
Description
Description

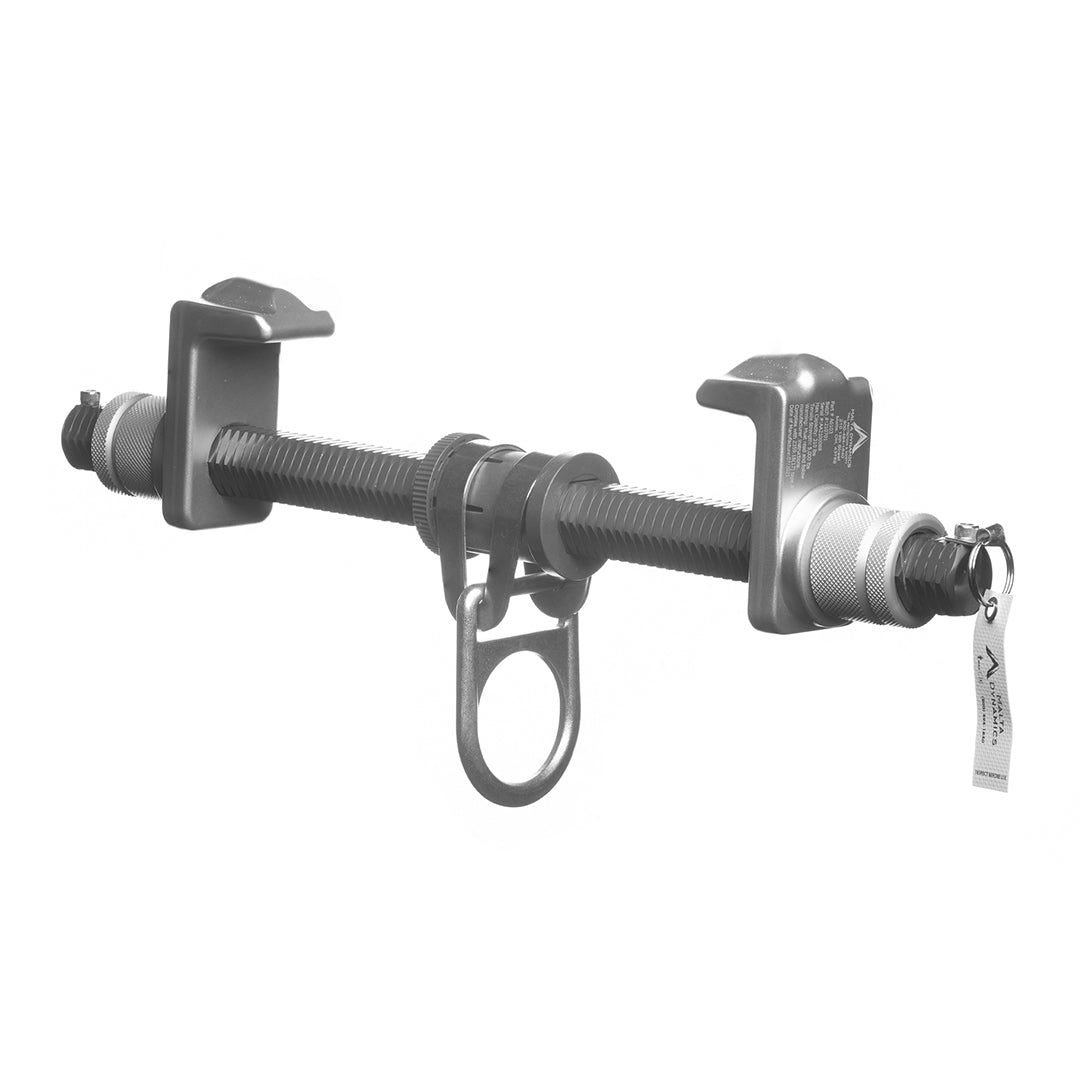

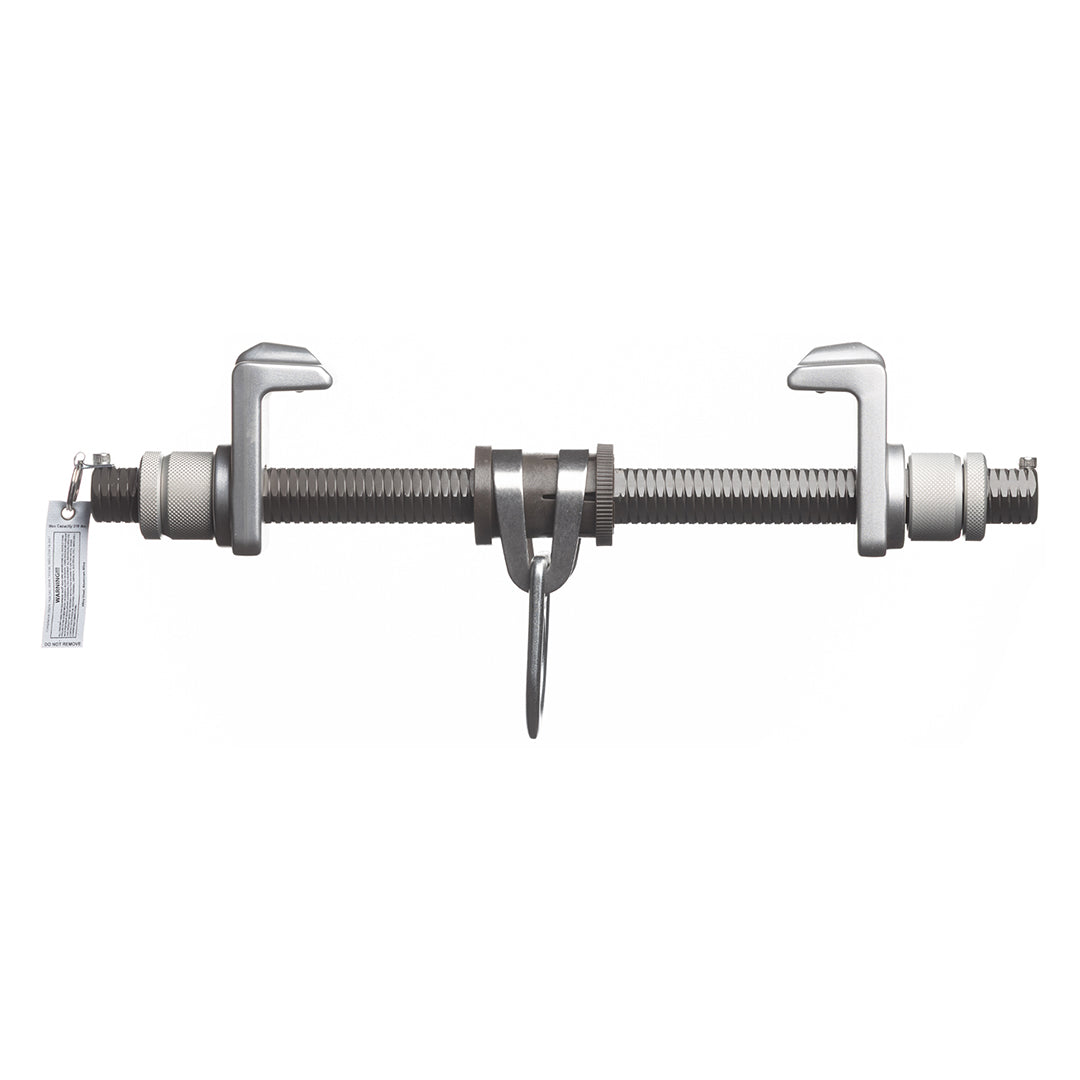

The Beam Walker Super Slider 3.5″ – 14″ (Parts #A6103 and #A6104) is a large version (14” or 24" capacity) fall arrest anchor designed for use on the top flange of a steel I or H beam. Light, smooth, and easy to use, the Beam Walker Super Slider is designed for fall protection, rope access, and work positioning. These I-Beam trolleys are the best on the market for worker safety!
How to Install the Beam Walker Anchor
Installation is straightforward with this Malta Dynamics Beam Walker anchor. You can spend less time installing and more time getting to work. Before installing the safety anchor, carefully inspect it, along with the beam you will be installing on. You’ll need to ensure the beam is structurally sound and is not damaged in any way.
Installation:
- Locate a structural steel beam flange capable of withstanding a 5,000-lbf. static load or meeting OSHA 1926.502 requirements for a safety factor of two.
- Push in on the latch handle to allow the adjustable hook to move.
- Keeping the unit perpendicular to the beam, fi t the hooks over the edges of the beam flange.
- Slide the adjustable hook so that both hooks are snug against the beam flange.
- Pull back the adjustable hook to ensure the ratchet teeth are fully seated in the nearest ratchet notches.
*Always re-adjust according to installation steps 1-6 when moving to a new or different sized beam.
These steps are a brief overview of the installation procedures required for this beam walker anchor — see the manual for more comprehensive instructions and use guidelines.
If you have any questions about the Malta Dynamics Beam Walker Anchor, please reach out to us online or at (800) 494-1840!
