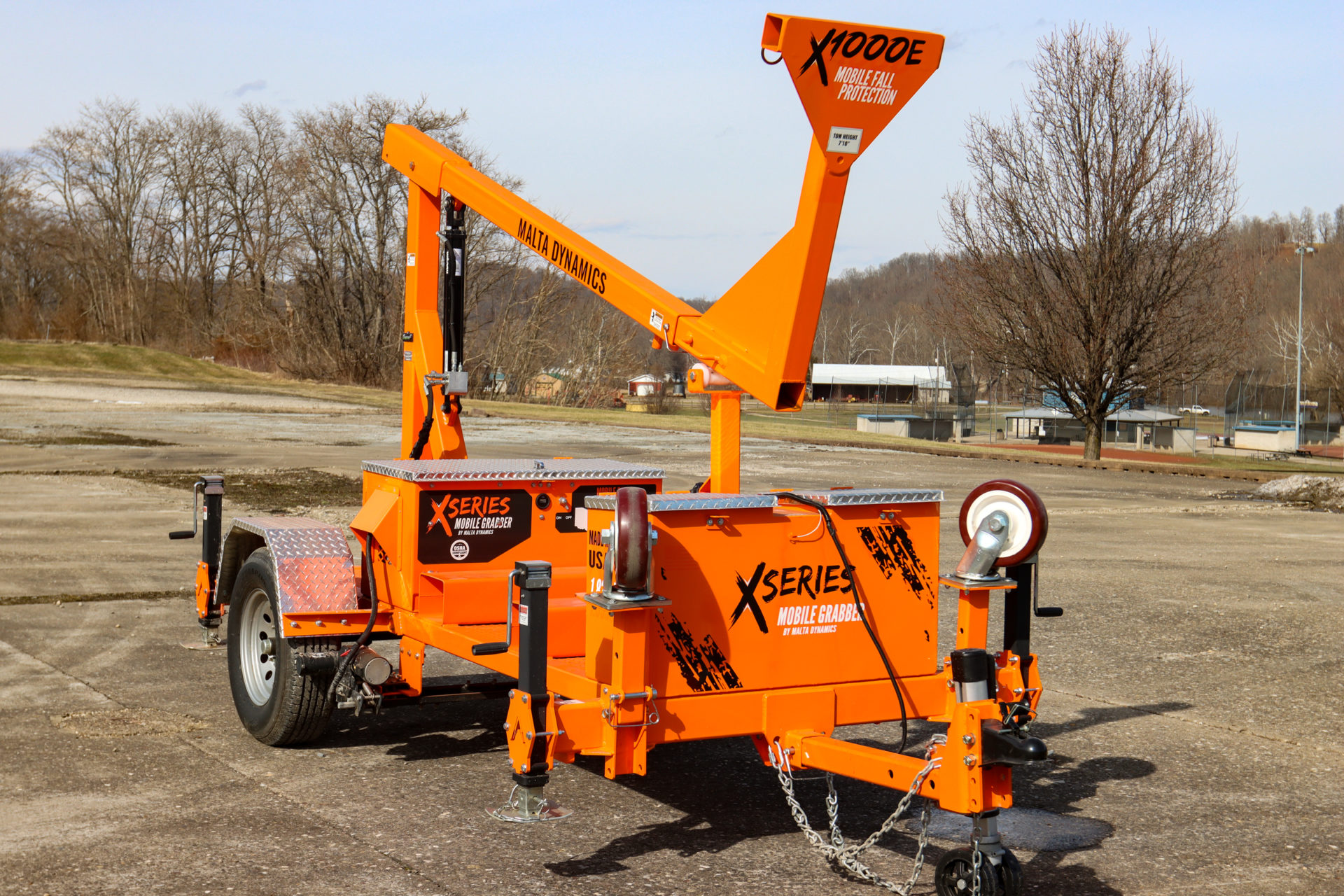

X1000 MOBILE GRABBER

The X1000 XSERIES Mobile Grabber is a mobile fall arrest system that provides overhead anchor points anywhere, any time. The X1000 model is our most affordable model, tested to meet OSHA fall protection codes, offers two overhead anchor points up to 22 feet in height, and supports a maximum anchor capacity of 310 pounds. The unit is road-towable and can be towed by nearly any vehicle on the market, and also features built-in fork pockets for easy transport indoors.

The X1000 XSERIES Mobile Grabber model is completely manual, operated by a hand-pumped hydraulic system, providing the most cost-effective way to ensure workers always have an overhead anchorage—anytime, anywhere.

Weight 2200 lbs.
Max. Working Height 22' (6.7m)
Min. Working Height 17' (5.18m)
Max. Folded Height 7'10" (2.38m)
Frame Width 5'8" (1.73m)
Overall Length 9'7" (2.92m)
Max. Arm Reach Out 3' (.91m)
Max. Anchor Point Capacity 310 lbs.
Max. Allowable Users 2
Max. Towing Speed Posted Highway Speed
Trailer Plug Wiring 4-Pole Blade System Lead
Actuating Method Manual Operating System
Outrigger System 4 Manually Adjustable Jacks
